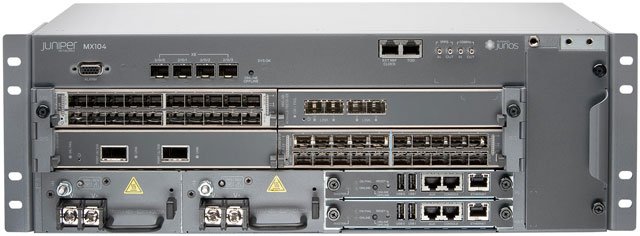

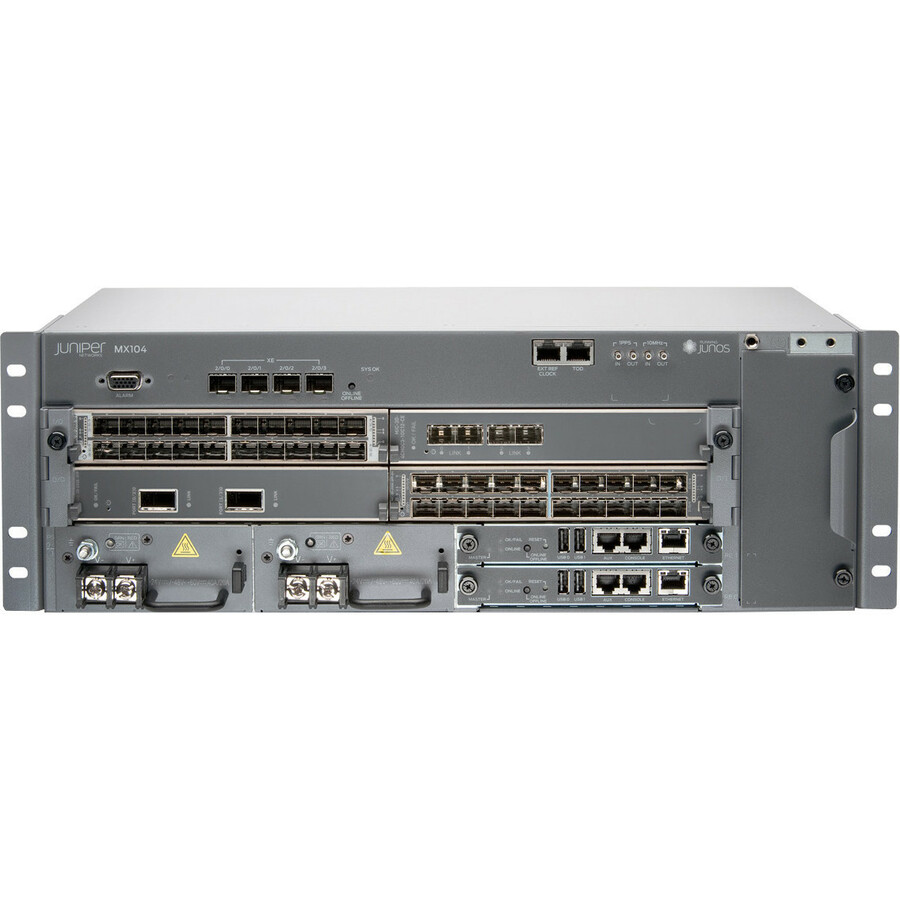

Juniper Networks MX104-DC Wireless Router

The Juniper Networks MX104-DC Wireless Router has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Juniper Networks MX104 - MX104 Chassis with 4 MIC Slots, 4X10GE XFP Built-in Ports (License required for activation), DC Power Supply, Fan Tray w/Filter, Packet Forwarding Engine & Routing Engine

With the versatile chassis, build a network that suits your needs by installing multiple modules and have more flexibility in expanding your router when required
Features management port for a reliable networking
Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity

Need a different version? See all Juniper MX104 Wireless Routers

Discontinued Need Assistance?

Add to Quote

Juniper Networks MX104-DC Wireless Router

Overview

Full specifications (PDF)

Juniper MX104 Wireless Router Model Overview

The SDN-ready MX104 3D Universal Edge Router is a modular, highly redundant, and full-featured MX Series platform built for space- and power-constrained service provider and enterprise facilities. The MX104 offers 80 Gbps of capacity, a redundant control plane for high availability, as well as four fixed 10GbE ports and four Modular Interface Card (MIC) slots for flexible network connectivity and virtualized network services. Optimized for mobile applications and central office deployments, the MX104 is also ETSI 300 compliant, environmentally hardened for deployment in outside cabinets and remote terminals, and supports advanced timing features.

Juniper Networks MX104-DC Wireless Router Overview

The MX104 Universal Edge Router is a modular, full featured MX Series platform for space and power constrained service provider and enterprise facilities. It is optimized for the aggregation of enterprise, mobile, business, and residential access services, and can also deliver edge services for metro providers.

The MX104 simplifies metro and enterprise architectures by eliminating unnecessary layers, dramatically reducing CapEx and OpEx without compromising performance or capabilities.

Detailed Specs

Full specifications (PDF)

Interfaces/Ports

USB:

Yes

Powerline:

Management Port:

Yes

Token Ring Port:

Serial V.35 Interface:

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

Modular Interface Card (MIC)
SFP+

Network & Communication

Ethernet Technology:

10 Gigabit Ethernet

Management & Protocols

Security Features:

NAT

Power Description

PoE (RJ-45) Port:

Input Voltage:

110 V AC
220 V AC

Redundant Power Supply Supported:

Yes

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Rack-mountable
Desktop

Height:

6.1"

Width:

17.5"

Depth:

9.5"

Weight (Approximate):

32 lb

Miscellaneous

Package Contents:

MX104 3D Universal Edge Router
1 x DC Power Supply
Fan Tray
Filter

Certifications & Standards:

EMC:

EN 300 386 V1.3.3
EMI (Emission)
FCC Part 15 Class A
EN 55022 Class A
VCCI Class A
BSMI CNS 13438
NCC C6357

Safety:

CAN/CSA-C22.2 No. 60950-1
UL 60950-1
EN 60950-1
IEC 60950-1
EN 60825-1 +A1+A2

Immunity:

EN 55024 +A1+A2 (1998)
EN-61000-3-2 (2006)
EN-61000-3-3 +A1 +A2 +A3 (1995)
EN-61000-4-2 +A1 +A2 (1995)
EN-61000-4-3 +A1+A2 (2002)
EN-61000-4-4 (2004)
EN-61000-4-5 (2006)
EN-61000-4-6 (2007)
EN-61000-4-11 (2004)

NEBS:

SR-3580 (2007)
GR-63-Core (2006)
GR-1089-Core (2006)
GR-3108-CORE

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0190801050417

UPC: 190801050417

EAN: 0190801050417

UNSPSC: 43201602
