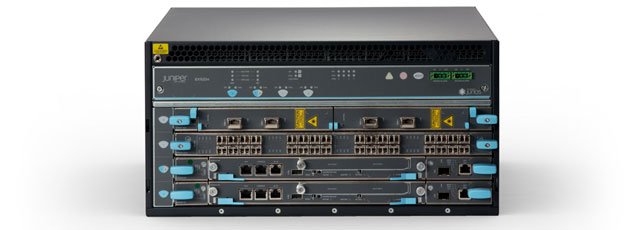

Juniper EX9204-CHAS3-S Network Switch

Juniper Networks EX9200 - EX9204 Chassis 3 with Passive Midplane
  • Can rapidly increase network capacity with minimal effort
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Can work as layer 3 routing for scalable network design
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Managed switch provides a reliable foundation for your network
Read More
$17,539.74
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Juniper EX9200 Network Switch Model Overview
The Juniper Networks EX9200 line of modular Ethernet switches provides a programmable, flexible, and scalable core for delivering mission critical applications in both campus and data center environments, reducing cost and complexity while offering carrier-class reliability. High port densities enable the EX9200 to consolidate and aggregate network layers, dramatically simplifying campus and data center architectures while reducing total cost of ownership (TCO) and lowering power, space and cooling requirements.
Juniper EX9204-CHAS3-S Network Switch Overview
The EX9200 line of programmable, flexible and scalable modular Ethernet core switches simplifies the deployment of cloud applications, virtualized servers and rich media collaboration tools across campus and data center environments.

As a key element of Juniper's comprehensive portfolio of resilient campus switching, security, routing, and wireless products, the EX9200 Ethernet Switch enables collaboration and provides simple and secure access to mission critical applications. In the data center, the EX9200 simplifies network architectures and network operations to better align the network with today's dynamic business environments.
Interfaces/Ports
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Stack Port:
No
Port/Expansion Slot Details:
4 x Expansion Slot
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
  • Line Card
  • Routing Engine
  • Switch Fabric
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • VLAN
  • QoS
  • Junos OS Command-Line Interface (CLI)
  • Junos XML Management Protocol
  • SNMP v1/2/3
  • RADIUS
  • TACACS+
  • MIB
  • Firewall-based Port Mirroring
  • Link Layer Discovery Protocol (LLDP)
  • Advanced Insight Solutions (AIS)
  • DHCP
  • Syslog
  • MIB
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
6U
Form Factor:
Rack-mountable
Height:
8.7"
Width:
17.5"
Depth:
27.8"
Weight (Approximate):
68.30 lb
Miscellaneous
Certifications & Standards:

IEEE Standards:

  • 802.1AB
  • 802.1D-2
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
  • 802.3ae
  • 802.3ba
  • 802.3ah
  • 802.3ad

Safety:

  • CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition, Safety of Information Technology Equipment
  • EN 60825-1 Safety of Laser Products-Part 1: Equipment Classification, Requirements, and User's Guide
  • EN 60950 Safety of Information Technology Equipment
  • IEC 60950-1 (2001) Safety of Information Technology Equipment (with country deviations)
  • EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classification
  • EN 60825-2 (2000) Safety of Laser Products-Part 2: Safety of Optical Fiber Comm. Systems
  • C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition)
  • TUV/GS to EN 60950-1, Amendment A1-A4, A11
  • CE-IEC60950-1, all country deviations

EMC:

  • AS/NZS CISPR22:2009
  • EN 55022 2006+A1:2007 European Radiated Emissions
  • FCC 47CFR , Part 15 Class A (2009) USA Radiated Emissions
  • VCCI-V-3/2009.04 and V-4/2009.04 Japanese Radiated Emissions
  • BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
  • EN 300 386 V1.5.1 Telecom Network Equipment - EMC requirements
  • ICES-003 Issue 4, Feb 2004 Canada Radiated Emissions
  • CISPR 24:1997/A1:2001/A2:2002 IT Equipment Immunity Characteristics

Immunity:

  • EN 55024:1998/A1:2001/A2:2003 Information Technology Equipment Immunity Characteristics
  • EN-61000-3-2 (2006) Power Line Harmonics
  • EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations
  • EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge
  • EN-61000-4-3 +A1+A2 (2002) Radiated Immunity
  • EN-61000-4-4 (2004) Electrical Fast Transients
  • EN-61000-4-5 (2006) Surge
  • EN-61000-4-6 (2007) Immunity to Conducted Disturbances
  • EN-61000-4-11 (2004) Voltage Dips and Sags
Environmentally Friendly:
Yes
Environmental Certification:
RoHS-5
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222612
