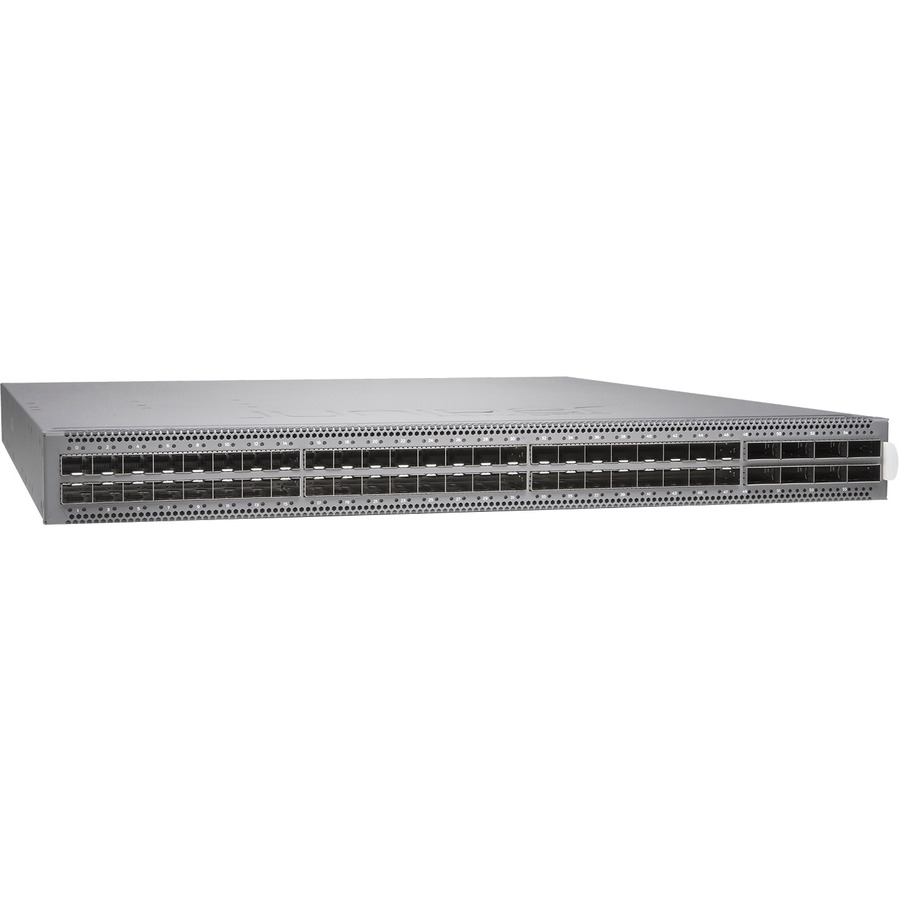

Juniper Networks EX4650-48Y-AFO Data Networking

Juniper Networks - Juniper EX4650 Ethernet Switch, Manageable, 3 Layer Supported, Modular, 450 W Power Consumption, Optical Fiber, 1U High, Rack-mountable
  • Support for high-density, multispeed 1GbE/10GbE/25GbE downlinks and 40GbE/100GbE uplinks for access and aggregation configurations, with up to 48 25GbE ports and up to eight 100GbE uplink ports in a 1 U platform
  • Throughput of up to 2 Tbps L2 and L3 performance, with latency as low as 550 nanoseconds
  • A 2.3 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
  • Feature-rich automation capabilities with support for Python and Zero Touch Provisioning (ZTP)
  • Support for virtualization protocols such as Virtual Extensible LAN (VXLAN)
  • Advanced Junos OS features such as EVPN, BGP add-path, MPLS, L3 VPN, and IPv6 6PE
  • Commit and rollback functionality that ensures error-free network configurations
  • A powerful set of scripts for on-box problem detection, reporting, and resolution
Read More

Need a different version? See all Juniper Parts Accessories

$15,636.29
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Juniper Networks EX4650-48Y-AFO Data Networking
Juniper Networks EX4650-48Y-AFO Data Networking
Juniper Parts Accessory Model Overview
Products and parts from Juniper.
Juniper Networks EX4650-48Y-AFO Data Networking Overview
The EX4650 line of Ethernet switches delivers high scale, high availability, and high performance for campus distribution deployments. The EX4650 offers fixed 1GbE/10GbE/25GbE ports with 40GbE/100GbE uplinks that support advanced campus environments, allowing them to provide the onramp to multicloud, to deploy cutting edge cloud applications, and to embrace IoT technology. It is also flexible enough for use in enterprise on-premises top-of-rack and service provider aggregation deployments.
Interfaces/Ports
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 48 x 25 Gigabit Ethernet Expansion Slot
  • 8 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology:
  • 25GBase-X
  • 100GBase-X
I/O Expansions
Number of Total Expansion Slots:
56
Expansion Slot Type:
  • SFP28
  • QSFP28
Shared SFP Slot:
No
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Power Consumption:
450 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
20.5"
Weight (Approximate):
23.70 lb
Miscellaneous
Package Contents:
  • EX4650 Ethernet Switch
  • 2 x AC Power Supplies
  • 2 x Power Cords
  • 4-post Rack Mount Kit
Environmentally Friendly:
Yes
Environmental Certification:
  • China RoHS
  • REACH
  • WEEE
  • RoHS
Item Numbers
GTIN: 0832938087415
UPC: 832938087415
EAN: 0832938087415
UNSPSC: 43222612
