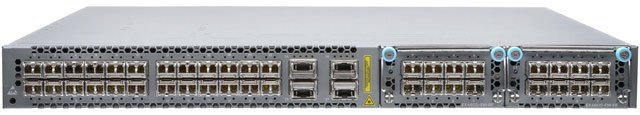

Juniper EX4600-40F-S Network Switch

Juniper Networks EX4600 - EX4600 spare chassis, 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, front to back airflow (optics, power supplies and fans not included and sold separately)
  • Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
  • Power Supply power source for a reliable connection even during power outages
  • Supports layer 3 switching for enhanced performance and usability
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Managed switch provides a reliable foundation for your network
  • 40 Gigabit Ethernet for efficient data transfer and fast connectivity
  • USB allows quick transmission of data at a higher rate for your convenience
Read More

Need a different version? See all Juniper EX4600 Network Switches

$11,815.86
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Juniper EX4600-40F-S Network Switch
Juniper EX4600-40F-S Network Switch
Juniper EX4600-40F-S Network Switch Juniper EX4600-40F-S Network Switch
Full specifications (PDF)
Juniper EX4600 Network Switch Model Overview
The EX4600 line of Ethernet switches delivers data center class scale, high availability, and high performance to campus distribution deployments. The EX4600 offers fixed 10 Gpbs and modular 10 Gpbs and 40 Gbps ports, giving it the flexibility to also be implemented in data center top-of-rack and service provider aggregation deployments. Designed to help organizations grow into higher density campuses, the EX4600 provides deployment flexibility, high availability using unified in-service software upgrades (unified ISSU), and management simplification with support for multichassis link aggregation.
Juniper EX4600-40F-S Network Switch Overview

Featuring up to 72 wire-speed 1GbE or 10GbE small form-factor pluggable and pluggable plus transceiver (SFP/SFP+) ports, and up to 12 wire-speed 40GbE quad SFP+ transceiver (QSFP+) ports in a compact one rack unit (1 U) platform, the Juniper Networks® EX4600 Ethernet Switch delivers 1.44 Tbps of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches. The EX4600 base switch provides 24 fixed 10GbE SFP/SFP+ ports and 4 fixed 40GbE QSFP+ ports. A total of four models are available: two featuring AC power supplies and front-to back or back-to-front airflow; and two featuring DC power supplies and front-to-back or back-to-front airflow.

Full specifications (PDF)
Interfaces/Ports
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Port/Expansion Slot Details:
  • 24 x 10 Gigabit Ethernet Expansion Slot
  • 4 x 40 Gigabit Ethernet Expansion Slot
  • 2 x Expansion Slot
Media & Performance
Ethernet Technology:
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology:
  • 10GBase-X
  • 40GBase-X
I/O Expansions
Number of Total Expansion Slots:
30
Expansion Slot Type:
  • SFP+
  • QSFP+
Number of SFP+ Slots:
24
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • Junos Space Network Director
  • Command Line Interface (CLI)
  • Telnet
  • SSH
  • SNMP v1/v2/v3
  • sFlow v5
  • MIB
  • QoS
  • RMON
  • VLAN
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
20.5"
Weight (Approximate):
21.40 lb
Miscellaneous
Certifications & Standards:

IEEE Standards

  • 802.1D
  • 802.1w
  • 802.1
  • 802.1Q
  • 802.1p
  • 802.1ad
  • 802.3ad
  • 802.1AB
  • 802.3x
  • 802.1Qbb
  • 802.1Qaz
  • 802.1Qau
  • 802.1Qbg

Safety:

  • CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment-Safety
  • UL 60950-1 (2nd Ed.) Information Technology Equipment-Safety
  • EN 60950-1 (2005) Information Technology Equipment-Safety
  • IEC 60950-1 (2005) Information Technology Equipment-Safety (All country deviations): CB Scheme report.
  • EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classification
  • GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection
  • GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment
  • SR-3580 (1995) NEBS Criteria Levels (Level 3)

EMC:

  • FCC 47CFR, Part 15 Class A (2009) USA Radiated Emissions
  • EN 55022 Class A (2006)+ A1 2007 European Radiated Emissions
  • VCCI Class A (2007) Japanese Radiated Emissions
  • BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
  • AS/NZS CISPR22:2009
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS-6
  • China RoHS
  • REACH
  • 80 Plus Silver
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222612
