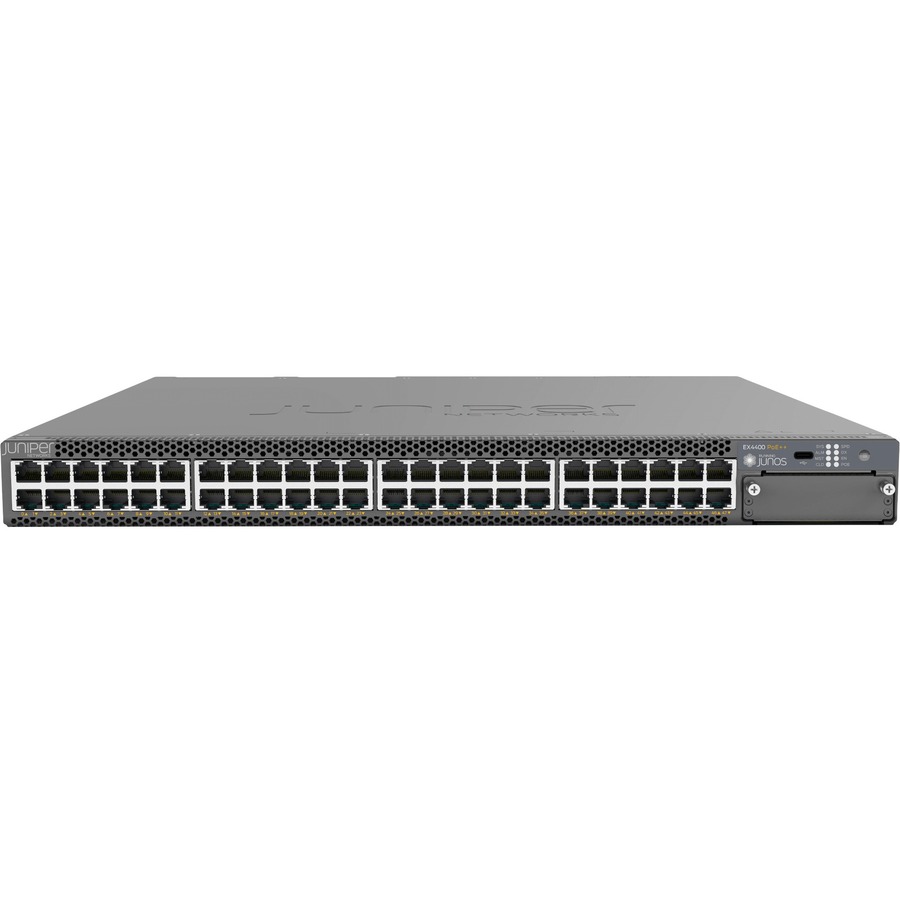

Juniper Networks EX4400-48MP Data Networking

Juniper Networks - Juniper EX4400-48MP Ethernet Switch, 48 Ports, Manageable, 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet, 10GBase-T, 100Base-X, 2.5GBase-T, 3 Layer Supported, Modular, 2200 W PoE Budget, Twisted Pair, Optical Fiber, PoE Ports, 1U High, Rack-mountable, Wall Mountable, 1 Year Limited Warranty

Effectively increases available bandwidth on your network
Features 48 networking ports to establish large network
Power Supply power source for dependable power supply
Supports layer 3 switching for enhanced performance and usability
With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Management capability allows maximum efficiency and with unrestricted control
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Juniper Parts Accessories

$8,948.52

In Stock

Chat Now for Qty Discount

Add to Quote

Juniper Networks EX4400-48MP Data Networking

Overview

Juniper Parts Accessory Model Overview

Products and parts from Juniper.

Juniper Networks EX4400-48MP Data Networking Overview

The Juniper Networks® EX4400 line of Ethernet switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4400 switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper Mist™ Wired Assurance, the EX4400 can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4400 include:

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
End-to-end encryption using Media Access Control Security (MACsec) AES256
IEEE 802.3bt Power over Ethernet (PoE++)
Standards-based microsegmentation using group-based policies (GBP)
Flow-based telemetry to monitor traffic flows for anomaly detection
10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4400 enables a variety of deployments, including campus, branch, and data center top-of-rack deployments. As requirements grow, Juniper's Virtual Chassis technology allows up to 10 EX4400 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4400 line consists of seven SKUs:

The EX4400-48MP, which offers 12 x 100M/1/2.5/5/10GbE GbE and 36 x 100M/1/2.5GbE PoE access ports, delivering up to 90 W per PoE port with an overall total 2200 W of PoE power budget (using two power supplies)
The EX4400-24MP, which offers 24 x 100M/1/2.5/5/10GbE PoE access ports, delivering up to 90 W per port with an overall total 1800 W of PoE power budget (using two power supplies)
The EX4400-24T, which offers 24 x 1GbE non-PoE access ports
The EX4400-24P, which offers 24 x 1GbE PoE access ports, delivering up to 90 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
The EX4400-48T, which offers 48 x 1GbE non PoE-access ports
The EX4400-48P, which offers 48 x 1GbE PoE access ports, delivering up to 90 W per port with an overall total 1800 W of PoE power budget (using two power supplies)
The EX4400-48F, which offers 12 x 10GbE SFP+ and 36 x 1GbE SFP fiber access ports

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Uplink Port:

Yes

Modular:

Yes

Network (RJ-45):

Yes

Port/Expansion Slot Details:

12 x 10 Gigabit Ethernet PoE++
2 x 100 Gigabit Ethernet Uplink
36 x 2.5 Gigabit Ethernet PoE++

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology:

10 Gigabit Ethernet
100 Gigabit Ethernet
2.5 Gigabit Ethernet

Network Technology:

10GBase-T
100Base-X
2.5GBase-T

I/O Expansions

Number of Total Expansion Slots:

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3bt
IEEE 802.1ae
IEEE 802.1ab
IEEE 802.1ak
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1x
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3ae
IEEE 802.3by
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x
IEEE 802.3ah
IEEE 802.1D
IEEE 802.1s
IEEE 802.1w
IEEE 802.3ad

Management & Protocols

Manageable:

Yes

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

2200 W

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Number of Power Supplies Supported:

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable
Wall Mountable

Height:

1.7"

Width:

17.4"

Depth:

16.9"

Weight (Approximate):

13.01 lb

Miscellaneous

Environmentally Friendly:

Yes

Environmental Certification:

RoHS-6

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0832938094475

UPC: 832938094475

EAN: 0832938094475

UNSPSC: 43222612
