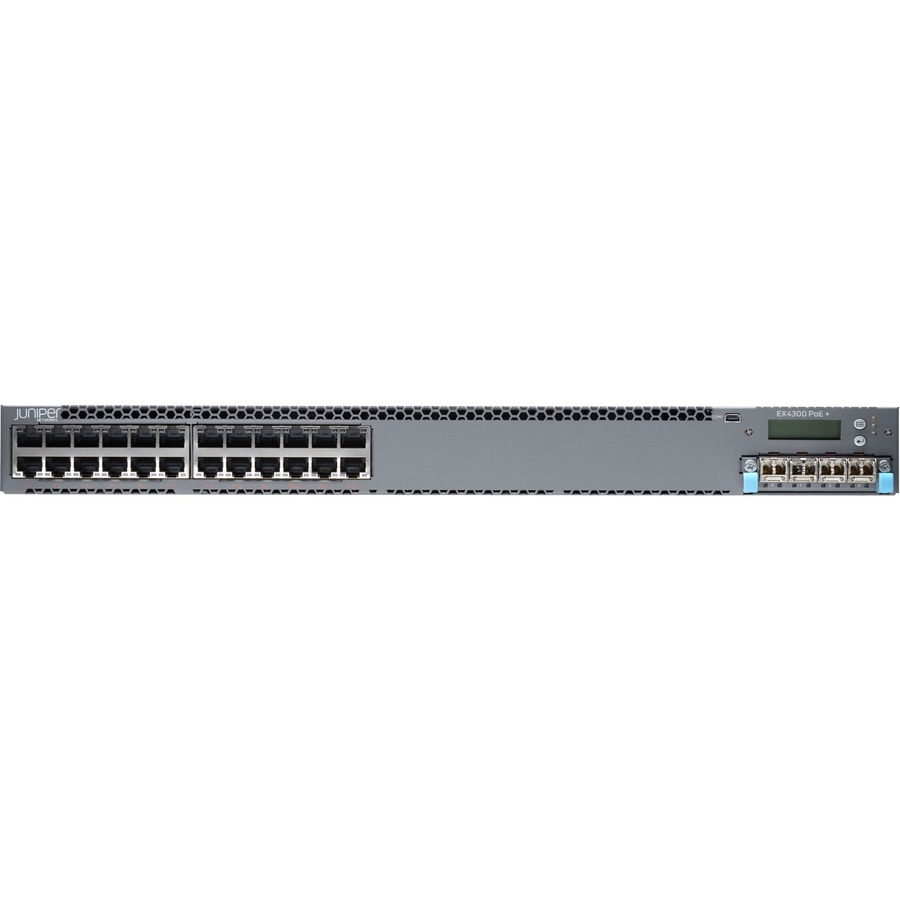

Juniper EX4300-24P-S Network Switch

Juniper Networks EX4300 - EX4300, Chassis, 24-Port 10/100/1000 BaseT PoE-Plus (No Power Supply or Fan Included)

Layer 3 Switch provides dependable and powerful connectivity for maximum usability
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
Features 24 networking ports to establish large network
Built-in power supply to ensure all components are being supplied with accurate voltage
Can work as layer 3 routing for scalable network design
Rack-mountable form factor for added reliability and dependability
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
2 GB memory for smooth connectivity with multiple networks

Need a different version? See all Juniper EX4300 Network Switches

$7,287.40

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

Full specifications (PDF)

Juniper EX4300 Network Switch Model Overview

The Juniper Networks EX4300 line of Ethernet switches delivers the performance and scale required for both campus and data center Gigabit Ethernet (GbE) access switch deployments. Combined with Juniperâ€™s market leading Virtual Chassis technology, the EX4300 scales up to 10 members, delivering the high availability and plug-and-play scale that businesses demand. Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 with Virtual Chassis technology enables businesses to deploy with speed and agility to increase revenue and improve productivity.

Juniper EX4300-24P-S Network Switch Overview

The Juniper Networks EX4300 line of Ethernet switches with Virtual Chassis technology delivers the highperformance networking solution that high-performance businesses demand. Combining the compact, pay-as-you-grow economics and low power and cooling requirements of stackable switches with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy innovative new technologies that increase revenue and improve productivity.

Detailed Specs

Full specifications (PDF)

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Bypass:

Modular:

Management Port:

Yes

USB:

Number of PoE+ (RJ-45) Ports:

Stack Port:

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

Uplink Module

Shared SFP Slot:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

VLAN
QoS
Web-based Management
SNMP v1, v2c, v3
RMON (RFC 2819) Groups 1, 2, 3, 9
DHCP
Telnet
MIB
Command Line Interface (CLI)

Memory

Standard Memory:

2 GB

Memory Technology:

DRAM

Flash Memory:

2 GB

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable
Desktop

Height:

1.7"

Width:

17.4"

Depth:

16.4"

Miscellaneous

Certifications & Standards:

IEEE Standards:

802.1p
802.1Q
802.1X
802.1ak
802.3
802.3u
802.3ab
802.3z
802.3ae
802.3ba
802.3af
802.3at
802.3x
802.3ah

Safety Certifications:

UL-UL60950-1
C-UL to CAN/CSA 22.2 No. 60950-1
TUV/GS to EN 60950-1, Amendment A1-A4, A11
EN 60950-1 (2006 +A1:2009+A12:2010)
IEC 60950-1 (2005 +A1:2009)

Electromagnetic Compatibility Certifications:

FCC 47CFR Part 15 Class A
EN 55022 Class A
ICES-003 Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 22 Class A
EN 55024
EN 300386
CE

Environmentally Friendly:

Yes

Environmental Certification:

RoHS-6

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0832938063495

UPC: 832938063495

EAN: 0832938063495

UNSPSC: 43222612
