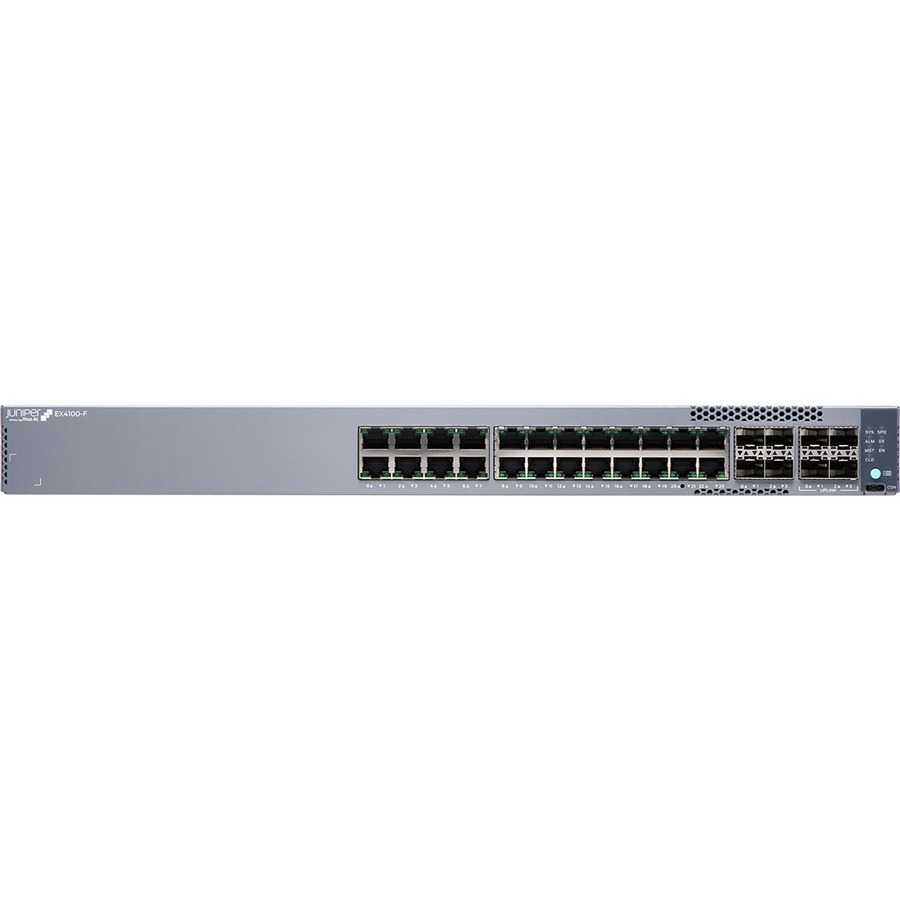

Juniper Networks EX4100-F-24T Data Networking

Juniper Networks - Juniper EX4100-F-24T Ethernet Switch, 24 Ports, Manageable, Gigabit Ethernet, 10 Gigabit Ethernet, 10/100/1000Base-T, 10GBase-X, TAA Compliant, 3 Layer Supported, Modular, 55 W Power Consumption, Twisted Pair, Optical Fiber, 1U High, Rack-mountable, Wall Mountable, Lifetime Limited Warranty
  • Effectively increases available bandwidth on your network
  • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
  • Features 24 networking ports to establish large network
  • Power Supply power source for required power supply to ensure maximum efficiency
  • Can work as layer 3 routing for scalable network design
  • With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
  • Management capability provides control over setup and configuration of your network
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More
$2,315.17
In Stock
Add to Quote
Juniper Parts Accessory Model Overview
Products and parts from Juniper.
Juniper Networks EX4100-F-24T Data Networking Overview
The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:
  • Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
  • Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
  • Standards-based microsegmentation using group-based policies (GBPs)
  • Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
  • 10-member Virtual Chassis support
Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-F line consists of the following models:
  • The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
  • The EX4100-F-12P, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
  • The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
  • The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
  • The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
  • The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
Technical Information
Features:
Fanless
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
  • 4 x 10 Gigabit Ethernet Stack
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
8
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
8
Network & Communication
Layer Supported:
3
Networking Standards:
  • IEEE 802.11ax
  • IEEE 802.1ab
  • IEEE 802.1ak
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3ae
  • IEEE 802.3x
  • IEEE 802.3ax
  • IEEE 802.3ah
  • IEEE 802.1D
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.3ad
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Number of Power Supplies Installed:
1
Power Consumption:
55 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Wall Mountable
Height:
1.7"
Width:
17.4"
Depth:
10.1"
Weight (Approximate):
7.76 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS-6
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0832938097469
UPC: 832938097469
EAN: 0832938097469
UNSPSC: 43222612
