Features:
Fanless

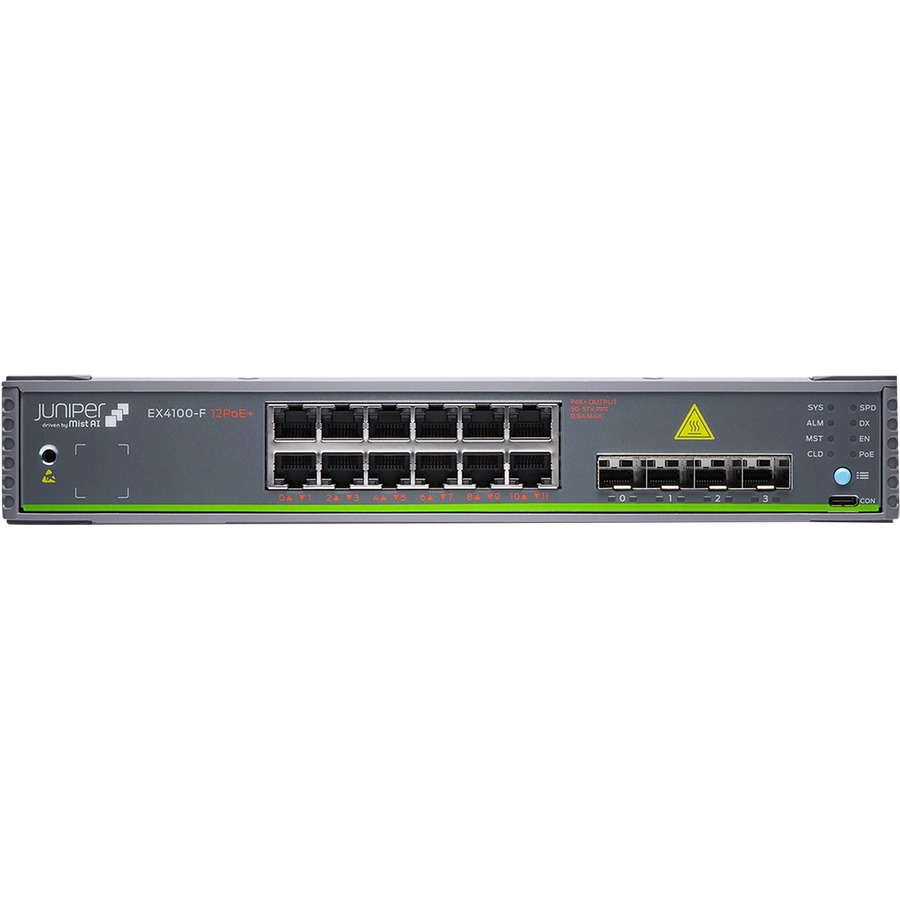

Juniper Networks EX4100-F-12P Data Networking
Part Number:
EX4100-F-12P
Model:
Parts
Juniper Networks Parts Accessory Model Overview
Products and parts from Juniper.
Juniper Networks EX4100-F-12P Data Networking Overview
The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100-F include:
The EX4100-F line consists of the following models:
Key features of the EX4100-F include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
- 10-member Virtual Chassis support
The EX4100-F line consists of the following models:
- The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
- The EX4100-F-12P, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
- The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
- The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
- The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
- The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
12
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 12 x Gigabit Ethernet PoE+
- 2 x 10 Gigabit Ethernet Uplink
- 4 x 10 Gigabit Ethernet Stack
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-T
- 10GBase-X
I/O Expansions
Total Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.11ax
- IEEE 802.1ab
- IEEE 802.1ak
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.3ax
- IEEE 802.3ah
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
300 W
Power Source:
Power Adapter
Power Consumption:
80 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Rack-mountable
- Wall Mountable
- DIN Rail Mountable
Height:
1.8"
Width:
10.6"
Depth:
9.7"
Weight (Approximate):
6.61 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0832938097438
UPC:
832938097438
EAN:
0832938097438
UNSPSC:
43222612
