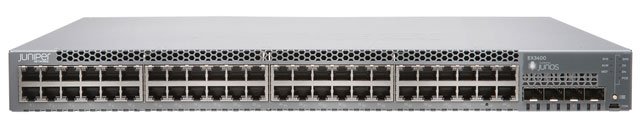

Juniper Networks EX3400-48P Network Switch

Juniper Networks EX3400 - EX3400 48-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+, 2 x 40G QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately)
  • Effectively increases available bandwidth on your network
  • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
  • Stack port provides an easy and hassle-free way to extend your office network
  • Features 48 networking ports to meet the requirements of the most demanding workgroups
  • Power Supply power source for required power supply to ensure maximum efficiency
  • Supports layer 3 switching for enhanced performance and usability
  • Rack-mountable form factor for added reliability and dependability
  • Management capability allows maximum efficiency and with unrestricted control
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Optical Fiber media support ensures maximum convenience and great usability
Read More
$5,147.63
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Juniper EX3400 Network Switch Model Overview
Juniper Networks EX3400 Ethernet Switch delivers a high-performance, flexible, and cost-effective solution for today’s most demanding converged data, voice, and video enterprise access environments. To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
Juniper Networks EX3400-48P Network Switch Overview
Juniper Networks EX3400 Ethernet Switch delivers a highperformance, flexible, and costeffective solution for today's most demanding converged data, voice, and video enterprise access environments. To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

Product Description

The Juniper Networks® EX3400 Ethernet Switch with Juniper Networks Junos® Fusion Enterprise and Virtual Chassis technology provides enterprises with the flexibility and ease of management that previously was only available with higher-end access switches. The fixed-configuration EX3400 supports a number of key features, including:

  • Junos Fusion Enterprise allows large numbers of EX3400 switches to be configured as satellite devices that connect to an EX9200 core aggregation switch to create a single logical device.
  • 24-port and 48-port models with and without Power over Ethernet (PoE/PoE+) are for campus wiring closet deployments.
  • Data center-optimized cooling options offer both front-to-back and back-to-front airflows, making the EX3400 suitable for GbE data center access deployments.
  • Two redundant, field-replaceable power supplies each provide up to 920 watts of power.
  • 24-port data center models are included for metro deployments.
  • Four dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE QSFP+ ports are available.
  • Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE/40GbE optic interfaces (40GbE uplink ports are preconfigured by Default as Virtual Chassis ports).
  • Comprehensive Layer 2 functionality with RIP and static routing is provided.
  • A compact, 13.8-inch deep 1 U form factor supports flexible deployment options.
  • An easy-to-manage solution includes centralized software upgrades and a single management interface.
  • Support is available for the same consistent modular Juniper Networks Junos operating system control plane feature implementation used by all other Juniper fixedconfiguration
  • Juniper Networks EX Series Ethernet Switches.
  • Support Is provided for Layer 3 (OSPF v2, IGMP v1/v2/v3, PIM, VRRP, Q-in-Q, BFD, virtual router) via an enhanced feature license (optional license required).
  • Support is available for IPv6 management, including neighbor discovery, stateless auto configuration, telnet, SSH, DNS, system log, NTP, ping, traceroute, ACL, CoS static routing, and RIPng.
  • IPv6 routing features (OSPFv3, virtual router support for unicast, VRRPv6, MLDv1/v2) are supported via an enhanced feature license.
  • Energy Efficient Ethernet (EEE) capability is provided.
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet PoE+
  • 4 x 10 Gigabit Ethernet Expansion Slot
  • 2 x 40 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
  • 40GBase-X
I/O Expansions
Number of Total Expansion Slots:
6
Expansion Slot Type:
  • SFP+
  • QSFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Wall Mountable
Height:
1.7"
Width:
17.4"
Depth:
13.8"
Weight (Approximate):
10.49 lb
Miscellaneous
Package Contents:
  • EX3400-48P Ethernet Switch
  • 1 x Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS-6
  • WEEE
  • REACH
  • China RoHS
  • Green Dot
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43222612
