Juniper Networks EX2300 Ethernet Switch Model Overview

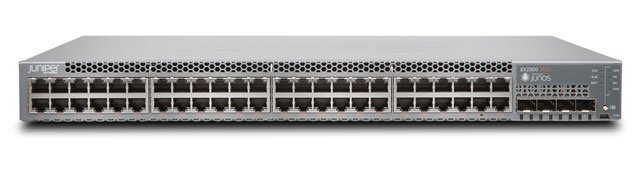

The Juniper Networks EX2300 Ethernet Switch is an ideal entry-level solution for efficient access-layer deployments in branch offices and enterprise campus networks. Designed for hardware flexibility, it seamlessly integrates into larger Junos Fusion Enterprise deployments, offering simplified management and scalability. Featuring up to 48 Gigabit Ethernet ports, with Power over Ethernet (PoE/PoE+) support, the EX2300 ensures reliable power delivery to devices such as IP phones and wireless access points, making it perfect for converged network environments. Its compact design and low power consumption enhance deployment efficiency without sacrificing performance.
Key Features
High Performance: Wire-rate packet forwarding with an ASIC-based Packet Forwarding Engine.
Power over Ethernet: Supports 802.3af and 802.3at standards providing up to 30 watts per port.
Management simplicity: Utilizes Junos Space Network Director and J-Web GUI for easy network administration.
Virtual Chassis Technology: Up to four EX2300 switches can be managed as a single logical device.
Scalability: Junos Fusion Enterprise technology supports over 100 switches in one management platform.
Specifications
Port Density: 24 or 48 10/100/1000BASE-T ports
Uplink Ports: 4x 1GbE/10GbE SFP/SFP+
Power Consumption: Max 100W AC (with PoE+)
Operating Temperature: 32° to 113° F (0° to 45° C)
Weight: 7.25 to 11.07 lbs depending on model
Layer 2/3 Features: Supports MAC, VLAN, routed interfaces, and various routing protocols
Warranty: Enhanced limited lifetime warranty with 24/7 support
EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.

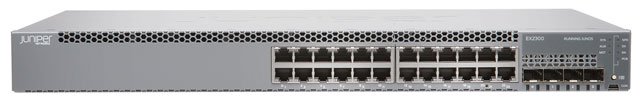

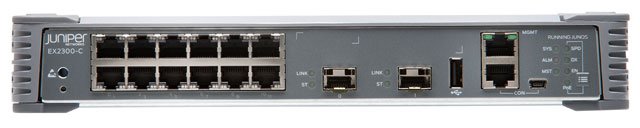

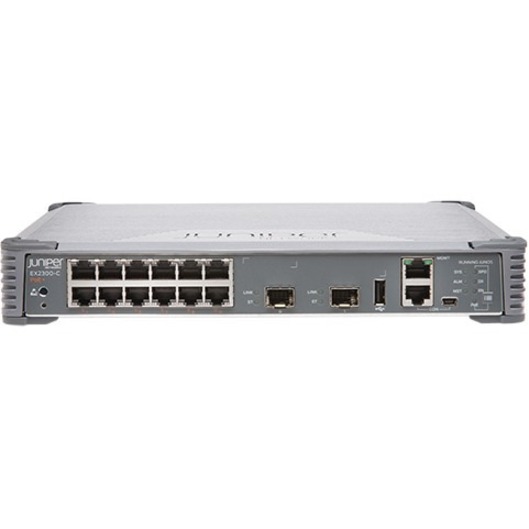

The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.
Both models support Juniper's unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
