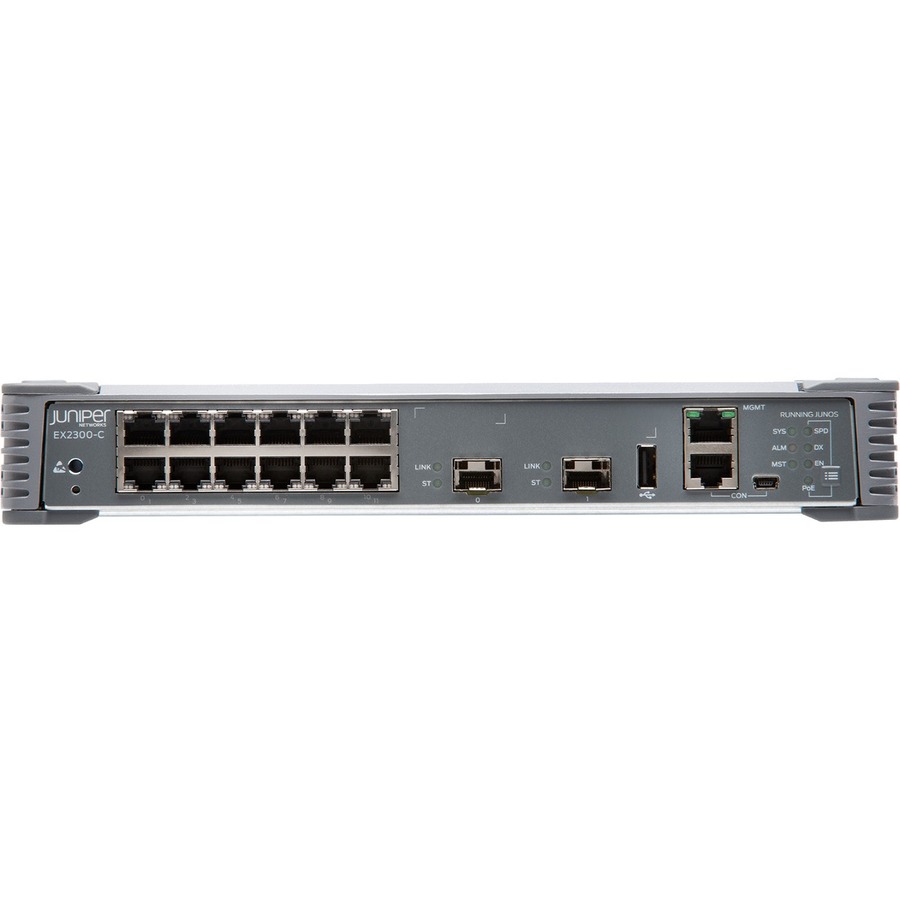

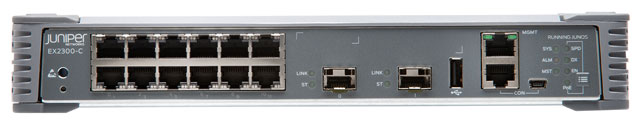

Juniper Networks EX2300-C-12P Network Switch

Juniper Networks EX2300 - EX2300 Compact Fanless 12-port 10/100/1000BaseT PoE+, 2 x 1/10G SFP/SFP+ (optics sold separately)
  • Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
  • Cascade to other network devices through the uplink port to expand your local area network
  • Features 12 networking ports to easily establish a local network or expand your existing one
  • Power Supply power source for required power supply to ensure maximum efficiency
  • Supports layer 3 switching for enhanced performance and usability
  • Rack-mountable form factor for your convenience and simplicity of usage
  • Managed switch provides a reliable foundation for your network
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Read More
$1,418.94
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Juniper EX2300 Network Switch Model Overview
The Juniper Networks EX2300 Ethernet Switch offers an economical, entry-level, standalone solution for access layer deployments in branch and remote offices, as well as enterprise campus networks. The Juniper Networks EX2300-C Ethernet Switch offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments. To simplify network operations, the EX2300 is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform.
Juniper Networks EX2300-C-12P Network Switch Overview

EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.

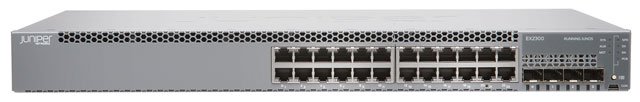

The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.

Both models support Juniper's unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.

Interfaces/Ports
Total Number of Network Ports:
12
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 12 x Gigabit Ethernet Network
  • 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
2
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Magnetic Mount
  • Wall Mountable
Height:
1.7"
Width:
11"
Depth:
9.4"
Weight (Approximate):
6.99 lb
Miscellaneous
Certifications & Standards:
  • GS
  • TÜV
  • Environmentally Friendly:
    Yes
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    Lifetime
    Item Numbers
    GTIN: 0832938070905
    UPC: 832938070905
    EAN: 0832938070905
    UNSPSC: 43222612
