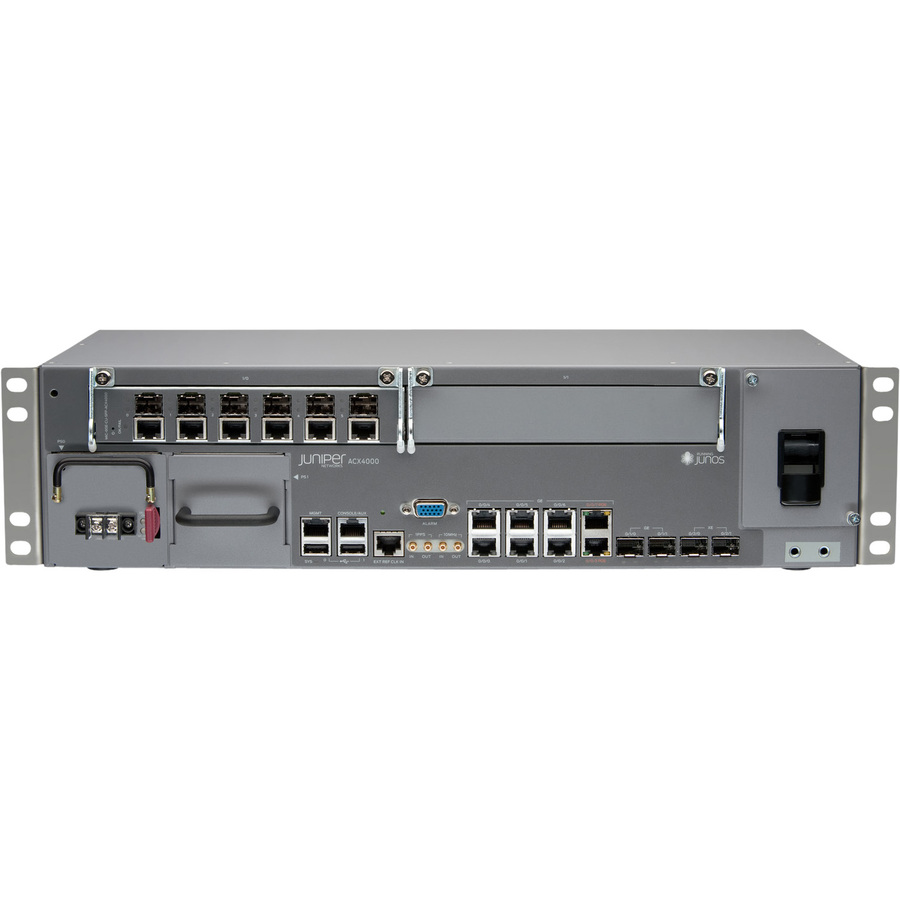

Juniper CHAS-ACX4000-S Data Networking

Juniper Networks - Converged Access Gateway Chassis Spare, 2 Open Slot, No Power Supplies, No Fantray

Management capability provides control over the router's setup and configuration
Built-in power supply to ensure all components are being supplied with accurate voltage

Need a different version? See all Juniper Parts Accessories

$18,364.26

Chat Now for Qty Discount

Add to Quote

Overview

Juniper Parts Accessory Model Overview

Products and parts from Juniper.

Juniper CHAS-ACX4000-S Data Networking Overview

The ACX4000 platform for the Universal Access solution is an environmentally hardened, actively cooled, 2.5 RU modular, system that includes TDM (T1/E1, CHOC3/STM-1) ports, combination copper/fiber GbE ports, and 10GbE SFP+ interfaces, to provide a versatile access platform.

The ACX4000 is one of a family of next generation access routers that addresses the new network imperatives with an industry-leading performance of up to 60Gbps, while enabling a seamless end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.

Detailed Specs

Interfaces/Ports

Total Number of Ports:

USB:

Powerline:

Management Port:

Yes

Token Ring Port:

Serial V.35 Interface:

Number of Network (RJ-45) Ports:

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP+
SFP (mini-GBIC)

Power Description

PoE (RJ-45) Port:

Yes

Input Voltage:

110 V AC
220 V AC

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

4.4"

Width:

17.5"

Depth:

9.3"

Weight (Approximate):

23.80 lb

Miscellaneous

Certifications & Standards:

Safety:

CAN/CSA-C22.2 No. 60950-1
UL 60950-1
EN 60950-1
IEC 60950-1 - CB Scheme
EN 60825-1

EMC:

AS/NZS CISPR22 Class A
EN55022 Class A
VCCI Class B
FCC Part 15 Class A

Immunity:

EN-61000-3-2 Power Line Harmonics
EN-61000-3-3 Voltage Fluctuations and Flicker
EN-61000-4-3 Radiated Immunity
EN-61000-4-4 EFT
EN-61000-4-5 Surge
EN-61000-4-6 Low Frequency Common Immunity
EN-61000-4-11 Voltage Dips and Sags

ETSI:

EN300386-2
EN 300 019-2-1 (2000) - Storage, Class T1.2
EN 300 019-2-2 (1999) - Transportation, Class T2.3
EN 300 019-2-3 (2003) - Stationary Use at Weather-protected Locations, Class T3.2
EN 300 019-2-4 (2003) - Stationary Use at Non-weather Protected Locations, Class 4.2H
ETS 300753 (1997) - Acoustic Noise Emitted by Telecommunications Equipment

NEBS:

SR-3580 NEBS Criteria Levels (Level 3 Compliance)
GR-63-CORE: NEBS, Physical Protection
GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 Compliant)
GR-3108-CORE: Generic Requirements for Network Equipment in
the Outside Plant (OSP)

Telecomm Compliance:

RTTE Directive 1995/5/EC
FCC Part 68
Industry Canada CS-03
JATE Green Book
TBR 21 (XDSL only)
TBR 12/13
ACA TS016
G.703

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43201602
