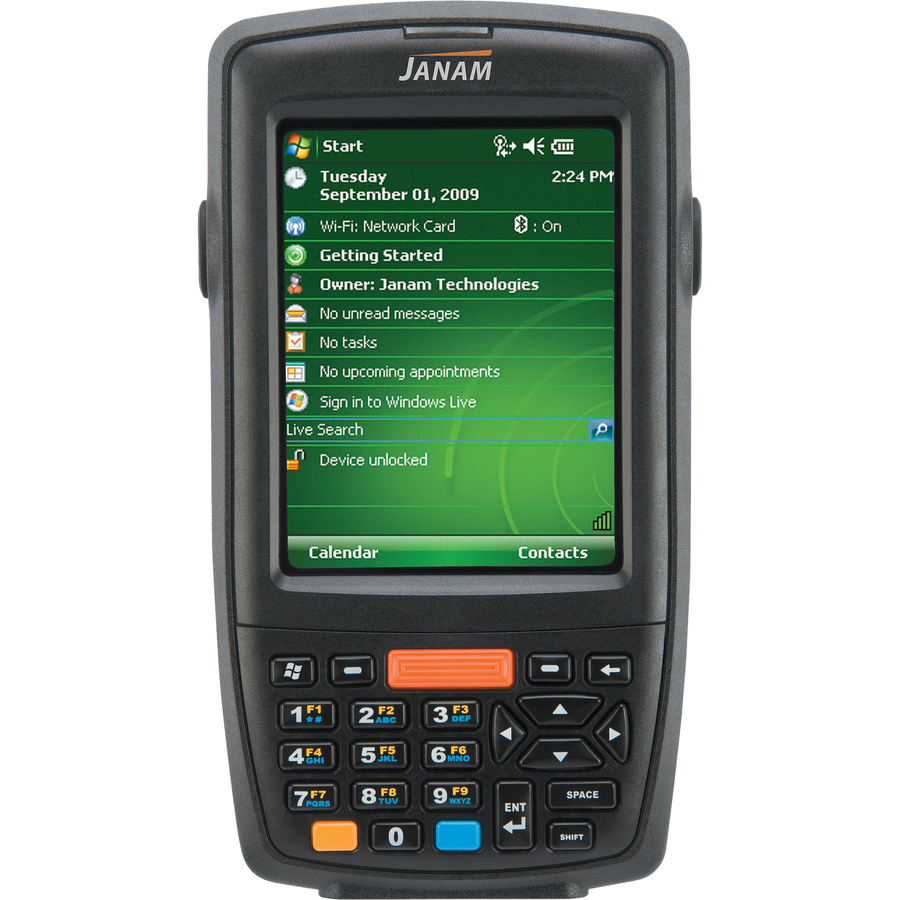

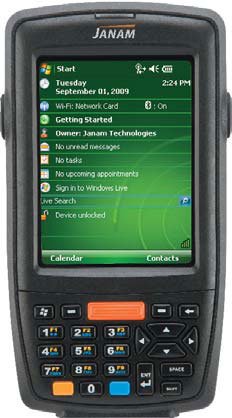

Janam XM66 Wireless – Mobile Computer – Windows Mobile 6.1 – 128 MB

Part Number: XM66W-0NGFBR00
Model: XM66
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
RAM Memory
128 MB
IP Rating
IP54
Interface Options
Bluetooth, Wi-Fi
Operating System
Windows Mobile 6.1

Product Description:

  Janam XM66 Handheld Terminal - Freescale 533 MHz - 128 MB RAM - 128 MB Flash - 3.5" Numeric Keyboard - Wireless LAN - Bluetooth
Explore all Janam XM66 Mobile Computers
Add to Quote
Janam XM66W-0NGFBR00 Mobile Computer
Janam XM66W-0NGFBR00 Mobile Computer
Janam XM66W-0NGFBR00 Mobile Computer Janam XM66W-0NGFBR00 Mobile Computer
Full specifications (PDF)

Janam XM66 Mobile Computer Model Overview

Ease of use, durability and flexibility are critical to mobile workers. The Janam XM66 delivers it all with Windows Mobile 6.1, advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.
Janam XM66W-0NGFBR00 Mobile Computer Overview

Ease of use, durability and flexibility are critical to mobile workers. Janam's XM66 delivers it all with Windows Mobile 6, advanced barcode scanning, robust WLAN communication and long battery life. It features the latest, most powerful Freescale processor and double data rate (DDR) memory, making it faster than other devices in its class. And Janam's XM Series devices are the only products in the rugged mobile computing category that weigh less than 10 ounces and have a full 3.5" display.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:

1D:

  • China Post
  • Codabar
  • Codablock F
  • Code 11
  • Code 16K
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 49
  • Code 93 and 93i
  • Code 128
  • EAN-8
  • EAN-13
  • GS1-128
  • GS1 Databar (RSS-144, RSS Limited, RSS Expanded)
  • Interleaved 2 of 5
  • ISBT 128
  • Matrix 2 of 5
  • Korea Post
  • MSI
  • Plessey Code
  • PosiCode
  • Straight 2 of 5 IATA (two-bar start/stop)
  • Straight 2 of 5
  • Industrial (three-bar start/stop)
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E1

2D:

  • PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39)
  • 4-CB (4-State Customer Barcode)
  • Australian Post
  • Aztec Code
  • Aztec Mesas
  • British Post
  • Canadian Post
  • GS1 Data Matrix
  • Han Xin
  • ID-tag (UPU 4-State)
  • Japanese Post
  • KIX (Netherlands) Post
  • MaxiCode
  • OCR
  • Planet Code
  • Postnet
  • QR Code
Electrostatic Discharge (ESD):
  • +/-15 kV DC Air Discharge
  • +/-8 kV DC Contact Discharge
Drop Specification:
48" To Concrete
Processor & Chipset
Processor Manufacturer:
Freescale
Processor Speed:
533 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
Wireless Security:
  • EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)
  • PSK
  • WPA2 (AES-CCMP)
  • WPA (TKIP)
  • WEP - 40 bit and 128-bit keys
Software
Operating System:
Windows Mobile 6.1
Battery Information
Battery Capacity:
2000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
1.2"
Width:
3.1"
Length:
5.8"
Weight (Approximate):
9.84 oz
Item Numbers
UNSPSC: 43211715

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (2)
  • Carrying and Protective Accessories (1)
  • Docks and Cradles (1)
  • General Software (1)
  • Mobile Computer Accessories (3)
  • Power Device (1)
  • Spare Parts (1)

Recommended Accessories for Model: Janam XM66W-0NGFBR00 Mobile Computer

Top Cables, Connectors, and Adapters Purchased With Janam XM66W-0NGFBR00

Top Carrying and Protective Accessories Purchased With Janam XM66W-0NGFBR00

Top Docks and Cradles Purchased With Janam XM66W-0NGFBR00

Top General Software Purchased With Janam XM66W-0NGFBR00

Top Mobile Computer Accessories Purchased With Janam XM66W-0NGFBR00

Top Power Device Purchased With Janam XM66W-0NGFBR00

  • Janam VA-XP-1 Power Device
    Janam VA-XP-1 Power Device
    Power Systems and Supplies, Janam, Vehicle Charging Adapter, 5V 2A (To Be Used In Conjunction with CC-XP-1, ATC-RF1-1, UC-XP-1 Or SC-XP-1)
    $30.00
    Add to Quote

Top Spare Parts Purchased With Janam XM66W-0NGFBR00

Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Janam XM66W-0NGFBR00 Mobile Computer is also known as JAN-XM66W0NGFBR00 or XM66W0NGFBR00.
