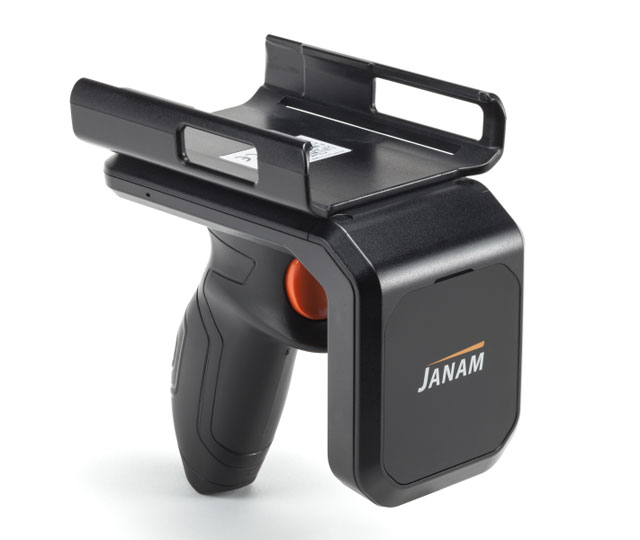

Janam RFD-T1-200UL Scan Handle

The Janam RFID Sled for XT2 and XT2+ rugged touch computers enhances efficiency and data accuracy across various sectors, including retail, logistics, manufacturing, and healthcare. This high-performance UHF RFID sled, lightweight and easy to attach, delivers state-of-the-art tag reading capabilities from over 22 feet away. With advanced features like tag writing and locationing, the sled empowers organizations to optimize their inventory management, asset utilization, and overall supply chain performance with real-time data access and operational insights.

• Sleek and ergonomic design
• Lightest UHF RFID sled in its class
• Reads EPC Global Gen2 ISO 18000-6C tags
• Tag writing and locationing capabilities
• 3350mAh battery

• Physical
  • Dimensions: 5.4" L x 2.7" W x 4.5" H / 139mm L x 70mm W x 115.8mm H
  • Weight: 11.9oz / 338g including battery
  • Power: 3350mAh 3.6V rechargeable Li-ion battery
• RFID Performance
  • Standards Supported: EPC Class 1 Gen 2
  • RFID Engine: Impinj Indy R2000
  • Read Rate: More than 700 tags/sec
  • Read Range: US model: 22.5ft / 6.86m; EU model: 22.3ft / 6.82m
• Environmental
  • Operating Temperature: 14° to 122° F / -10° to 50° C
  • Storage Temperature: -13 to 158° F / -25° to 70º C
  • Humidity: Non-condensing, 95%
  • Drop: Multiple 5ft/1.5m drops to concrete
  • Electro Static Discharge (ESD): +/- 15kV air; +/- 8kV contact
• Safety/Regulatory
  • EMI/EMC: EN 301 489-1; EN 301 489-3
  • Electrical Safety: EN 60950-1
  • RF Exposure: EU: EN 50364; EN 62369-1; EN 50566; EN 62311; US: FCC Part 2. 1093 OET Bulletin 65 Supplement 'C'
• Interface Features
  • USB: Type C 5V/2A
  • Alerts: LED indicators
  • LED Indicators: Multi-color
