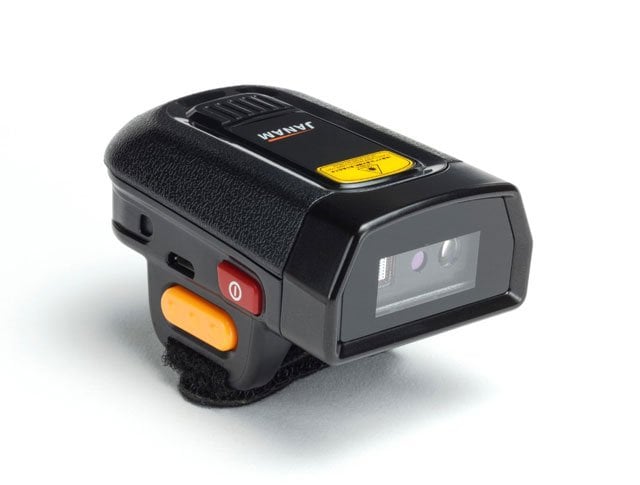

Janam’s BTS-01 Wireless Bluetooth Ring Scanner is one of the most economical options, offering the highest quality barcode scanning performance that vastly improves warehouse management, picking, receiving, put-away, sorting and inventory management processes. Improve inventory accuracy, decrease order turnaround time and eliminate shipment errors with the BTS-01. The BTS-01 wireless Bluetooth ring scanner is comfortable, user-friendly, and designed for continuous use in the harshest working environments, all while remaining the smallest and lightest in its class. With fast decode speeds, the BTS-01 seamlessly captures even the most poorly printed or damaged bar codes.
What barcode symbologies does the Janam BTS-01 ring scanner support?
The Janam BTS-01 supports a comprehensive range of 1D and 2D barcodes. For 1D symbologies, it reads Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, EAN/JAN variants, UPC-A/E, GS1 DataBar, and postal codes. For 2D symbologies, it decodes Codablock, PDF417, Aztec Code, Data Matrix, QR Code, and Han Xin code, among others. This versatility makes it suitable for diverse warehouse and logistics applications.
How does the Janam BTS-01 connect to mobile devices and computers?
The BTS-01 uses Bluetooth 4.0 HS BLE for wireless connectivity to smartphones, tablets, and mobile computing devices. Pairing is simple—you read the terminal's Bluetooth address as a barcode on your host device. We also include a USB Dongle for PC connection, along with a Micro USB adapter and multiple plug options (US/EU/UK) for charging flexibility.
What is the scanning range and performance of the BTS-01 ring scanner?
The BTS-01 delivers a decode range of 1.5 to 19.5 inches depending on barcode symbology, with a 42° horizontal and 28° vertical field of view. It features a 640 x 400 pixel sensor resolution and supports a 360° roll tolerance with ±60° pitch and skew tolerance, enabling flexible scanning angles. The hyper red 660nm illumination LED allows operation in ambient light up to 10,000 foot candles.
How long does the battery last on the Janam BTS-01?
The BTS-01 is powered by a 1000mAh rechargeable lithium-ion battery and weighs only 2.1 ounces including the battery. The compact 1000mAh capacity is designed for all-day wearable scanning operations in warehouse and logistics environments. We provide a USB adapter with multiple plug options to keep your scanner charged throughout your shifts.
What are the operating conditions for the Janam BTS-01 ring scanner?
The BTS-01 operates reliably in temperatures from -10°C to 50°C (-14°F to 122°F) and can be stored in temperatures ranging from -20°C to 70°C (-4°F to 158°F). It handles humidity from 5% to 95%, making it suitable for varied warehouse environments. These environmental specifications ensure consistent performance whether you're working in climate-controlled facilities or temperature-variable storage areas.

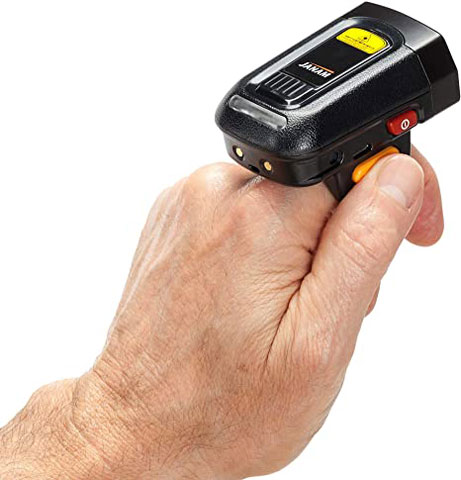

Is the Janam BTS-01 suitable for one-handed scanning operations?
Yes, the BTS-01 is specifically designed as a wearable ring scanner with a lightweight design (2.1 ounces) that improves mobility and productivity. It includes left and right finger trigger options with straps, allowing operators to scan barcodes hands-free while moving products, packages, and materials. This wearable form factor enables efficient multi-tasking in fast-paced warehouse and logistics operations. Contact us today to learn how the BTS-01 can enhance your team's productivity.
The Janam BTS-01 Barcode Scanner is also known as
JAN-BTS01
or BTS-01.
Full specifications (PDF)
