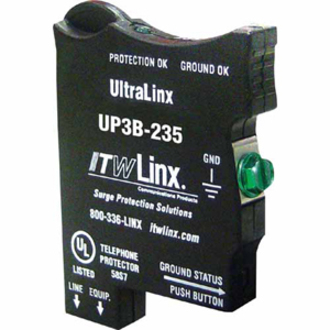

ITW Linx UP3B-235 UltraLinx 66 Block Surge Protector Model Overview
UP3B-235 UltraLinx 66 Block from ITWLinx is a voice high-speed data 66 block surge protector with Sneak Current Protection, which protects against fires caused by overloads and power crosses. The Single Pair Protection method protects only the lines requiring protection. The Solid-state Protection automatically resets without user intervention and provides the fastest response to transient voltages by quickly diverting damaging surges to ground. It utilizes replaceable 350mA fuse for protection and 2 indicator lights for Protection and Ground Connection indications.
Technical Information
Miscellaneous
Additional Information:
Features:
- Streamlined Installation: Eliminate redundant cross-connects by adding protection directly at the 66 Block
- Ideal for Retrofit Applications: Just remove the bridging clips from the block & replace them with the UltraLinx Protector
Product Specifications:
- Clamping 235V
- Recommended Grounding Impedance: Less then 0.5 Ohm
- Agency Approvals: UL 497 (Primary), 497A (Secondary)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0696552139314, 0790237002440
UPC:
696552139314, 790237002440
EAN:
0696552139314, 0790237002440
UNSPSC:
39121610
Get help from a Barcoding Expert!
The ITW Linx UP3B-235 Surge Protector is also known as
ILX-UP3B235
