ITW Linx RM-M8COM-15 Accessory

Part Number: RM-M8COM-15
Model: UP3P-235 UltraLinx 66 Block
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA 5-15P
Receptacles
8 x NEMA 5-15R
Dataline Protection
Phone/DSL ModemNetwork
Input Voltage
120 V AC

Product Description:

  ITWLinx SurgeGate 8-Outlets Surge Suppressor - 8 x NEMA 5-15R - 1800 VA - 1650 J - 120 V AC Input - 120 V AC Output
Explore all ITW Linx UP3P-235 UltraLinx 66 Block Accessories
Add to Quote
ITW Linx RM-M8COM-15 Accessory
ITW Linx RM-M8COM-15 Accessory

ITW Linx UP3P-235 UltraLinx 66 Block Accessory Model Overview

UP3P-235 UltraLinx 66 Block from ITWLinx features voice high-speed data 66 block surge protection with Sneak Current Protection, which protects against fires caused by overloads and power crosses. The Single Pair Protection method protects only the lines requiring protection. The Solid-state Protection automatically resets without user intervention and provides the fastest response to transient voltages by quickly diverting damaging surges to ground. They utilize replaceable 160mA PTC for voice/fax/modem line protection and 2 indicator lights for Protection and Ground Connection indications.
ITW Linx RM-M8COM-15 Accessory Overview

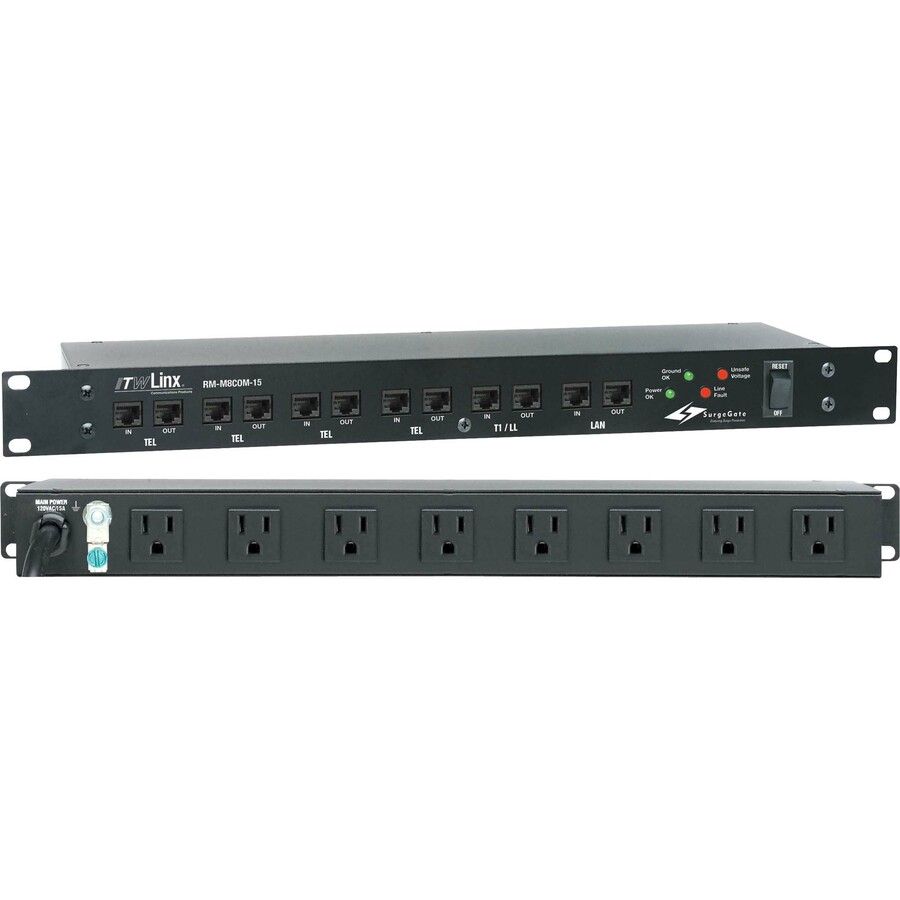

8X15 Amp (NEMA 5-15R) AC surge protector, with SurgeGate Plus circuitry. Plus protection for four Analog or DSL lines, one T1/LL line and one LAN line.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacles:
8 x NEMA 5-15R
Dataline Protection:
  • Phone/DSL Modem
  • Network
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Line Current:
15 A
Maximum Surge Current:
52 kA
Power Handling:
1800 VA
Surge Energy Rating:
1650 J
Physical Characteristics
Power Cord/Cable Length:
10 ft
Height:
1.8"
Width:
19"
Depth:
4.5"
Weight (Approximate):
5.72 lb
Miscellaneous
Additional Information:
  • Auto-Resettable (TELCO) / (T1/LL): Yes
  • Clamping Level (TELCO) / (T1/LL) / (LAN): 260V / 70V / 7V
  • Response Time: 1-5 Nanoseconds
  • Capacitance (TELCO) / (T1/LL): Less than 50pF
  • Suppression Modes (TELCO) / (T1/LL): Metallic & Longitudinal
  • Over voltage Voltage Shutoff: 144V ±11V
  • Under voltage Voltage Shutoff: 87V ±8V
  • Initial Clamping Level: 200V Peak, 141 RMS
  • UL 1449 Rating: 400V

Wires Protected:

  • TELCO: Total 4 Ports (each Port Pins 4, 5)
  • T1/LL: Pins (1, 2, 4, 5)
  • LAN: 8-wires (Pins 1-8)
Compatibility:
  • SOHO
  • KSU
  • PBX
  • Routers
  • Gateways
  • Servers
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0790237011527
UPC: 790237011527
EAN: 0790237011527
UNSPSC: 39121610
