IOGEAR GUD3C03 Cables, Connectors, and Adapters

Part Number: GUD3C03

Model: Parts

$157.11

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Connectivity Technology

Wired

Charging Capability

Yes

Device Supported

Notebook

Memory Card Reader

Yes

Product Description:

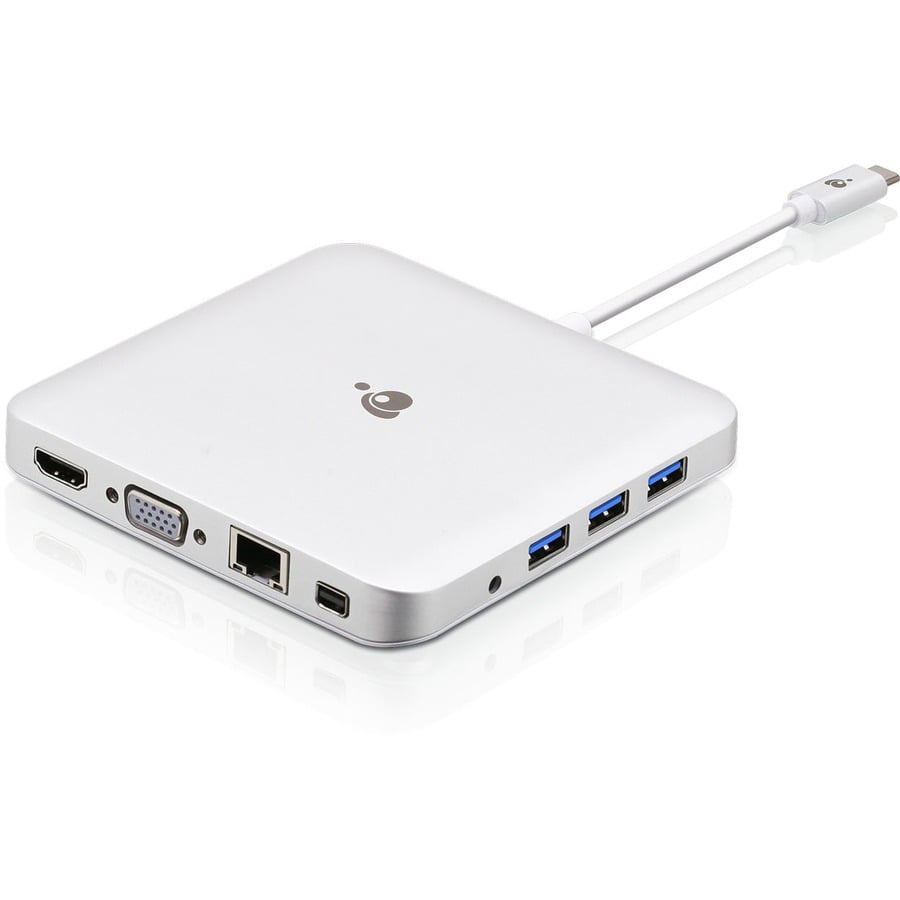

Cables, Connectors, and Adapters, IOGEAR, Compact USB-C Docking Station with PD Pass-Thru, for Notebook, 60 W, USB Type C, 3 x USB Ports, 3 x USB 3.0, Network (RJ-45), HDMI, VGA, Mini DisplayPort, Audio Line In, Audio Line Out, Thunderbolt, Wired

Explore all IOGEAR Parts Wireless Switches

Add to Quote

IOGEAR GUD3C03 Cables, Connectors, and Adapters

Overview

IOGEAR Parts Wireless Switch Model Overview

Parts and accessories from IOGEAR.

IOGEAR GUD3C03 Cables, Connectors, and Adapters Overview

Full-sized productivity in a compact design
Affordably connect up to 8 devices
4K Ultra HD (UHD)
SD and Micro SD card reader built-in
Use your USB-C power supply - Charge your laptop up to 45W

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Charging Capability:

Yes

Device Supported:

Notebook

Memory Card Reader:

Yes

Memory Card Supported:

SD
SDHC
SDXC

Screen Mode Supported:

4K @ 60Hz
Full HD

Supported Resolutions:

3840 x 2160
1920 x 1200

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Interfaces/Ports

Host Interface:

USB Type C

Audio Line In:

Yes

Audio Line Out:

Yes

Total Number of USB Ports:

Number of USB 3.0 Ports:

USB Type-A:

Yes

Number of USB Type-A Ports:

USB Type-C:

Yes

Number of USB Type-C Ports:

Network (RJ-45):

Yes

Number of RJ-45 Ports:

VGA:

Yes

DisplayPort Version:

1.2

Mini DisplayPort:

Yes

Number of Mini DisplayPort:

Headphone/Microphone Combo Port:

Yes

HDMI:

Yes

Number of HDMI Ports:

HDMI Version:

1.4

Thunderbolt:

Yes

USB Power Delivery:

60W

Software

Operating System Supported:

Windows 7
Windows 8
Windows 8.1
Windows 10
Mac OS X 10.10.5 Yosemite

Power Description

Maximum Power Supply Wattage:

60 W

Physical Characteristics

Height:

0.47"

Depth:

4.70"

Length:

4.7"

Weight (Approximate):

8 oz

Miscellaneous

Package Contents:

Compact USB-C Docking Station with PD Pass-Thru
1 x Quick Start Guide
1 x Warranty Card

Additional Information:

Upstream Port - USB-C : Built-in USB 3.1 Type-C cable
Downstream Port - HDMI : 1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
Downstream Port - Mini DisplayPort : 1x miniDisplayPort port (v.1.2 spec compliant, up to 3840x2160@30Hz)
Downstream Port - VGA : 1x VGA port (up to 1920x1200@60Hz)
Downstream Port - Ethernet : 1x Gigabit Ethernet port
Downstream Port - USB-A : 3x USB 3.0 A ports, 1 port with BC1.2 charging
Downstream Port - USB-C : 1x USB-C port for Power Delivery pass-through only
Downstream Port - Card Reader : Supports SD/SDHC/SDXC @ UHS-I class, MMC
Downstream Port - Audio : 1 x 3.5mm (in/out shared)
Power - Power Delivery Pass-Thru : 60W (A total of up to 45W can be charged to the laptop after deduction of max 15W used by the dock)
Operating System Requirements - Windows : Windows 7/8/8.1/10
Operating System Requirements - Mac : Mac OS X 10.10.5+
Inner Pack - Width : 5.1" (13cm)
Inner Pack - Height : 7.5" (19cm)
Inner Pack - Length : 6.7" (17cm)
Inner Pack - Inner Pack Qty. : 6
Unit Package Dimensions - Height : 0.79" (2cm)
Unit Package Dimensions - Depth : 7" (18cm)
Unit Package Dimensions - Length : 6.3" (16cm)
Master Carton - Width : 14" (36cm)
Master Carton - Height : 11" (28cm)
Master Carton - Depth : 8.3" (21cm)
Master Carton - Master Carton Qty. : 24
Weight - Master Carton Wt. : 17.2 lb (7.8kgs)
Weight - Inner Pack Wt. : 4.2 lb (1.9kgs)
Weight - Unit Pack Wt. : 0.65 lb (0.3kgs)

System Requirements:

USB-C compatible laptops with DP Alt-Mode support

USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Through Function

Only one additional video output can be utilized for extended desktop using Mac OS

For dual screen extended desktop in Windows, you must use HDMI with DisplayPort

When VGA output is utilized, only one additional extended desktop screen will be available

Compatible with USB-C and Thunderbolt 3 laptop

For Windows OS: dual screen extended desktop can only be configured through both HDMI and Mini DisplayPort

For Mac OS: dual screen operates in mirror mode via HDMI and Mini DisplayPort

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin:

China

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0818240184363, 0818250081102, 0881317515568, 0993250621913

UPC: 818240184363, 818250081102, 881317515568, 993250621913

EAN: 0818240184363, 0818250081102, 0881317515568, 0993250621913

UNSPSC: 43211602
