IOGEAR GCS1944 Network Switch

IOGEAR - Network Switches, IOGEAR, 4-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio (TAA), 4 Computer(s), 1 Local User(s), 4096 x 2160, 8 x USB, Desktop, 10 x DisplayPort, TAA Compliant
  • Maximize your high-end multi-monitor workstation with superior video resolution
  • Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @60Hz)
  • Operate 4 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
  • Add another GCS1944 to expand up to four 4K monitors
  • DisplayPort 1.2 compliant, HDCP compliant
  • Allows independent switching of the KVM, USB, and audio devices
  • Control/share USB3.0 peripherals between 4 computers; save money on duplicate devices
  • Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
  • SuperSpeed 5Gbps transfer rate
  • MST (Multi-Stream Transport)
Read More
$558.43
In Stock
Add to Quote
IOGEAR Parts Wireless Switch Model Overview
Parts and accessories from IOGEAR.
IOGEAR GCS1944 Network Switch Overview

Enhance High-End Multi-Monitor Workstation

Maximize your high-end dual DisplayPort workstations by connecting them to the 4-Port 4K Dual View Display Port KVMP. Experience 4K Cinema resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.

A Dual Cinema 4K Experience

Join two Cinema 4K DisplayPort monitors to your premium desktop or laptop to experience superior screen, image, and video quality. The Dual View DisplayPort KVMP delivers a Cinema 4K resolution standard of 4096 x 2160 at a frame rate of 60Hz.

Designed for professional film and video production industries, the 4-Port KVMP supports environments requiring cinematic graphics resolution. Superior quality is also ideal for applications in motion graphic design, animation, engineering, architecture, and media design.

Convenient Switching Methods

Switch and access two DisplayPort computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.

Expand to Utilize Up to Four 4K Monitors

Tackle large projects and double your desktop viewing space by adding a second 4-Port KVMP (GCS1944). Expand your workstations to accommodate up to four 4K Cinema DisplayPort monitors.

Smart Connectivity

Additional smart connectivity features turn your workstation into a convenient, easy-to-use powerhouse. The Power on Detection ensures automatic connection to the next powered-on computer. With Multi-Stream Transport (MST) support, double your desktop viewing space by daisy chaining each monitor to another monitor, accommodating up to four DisplayPort monitors*. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and compatibility with legacy USB 2.0 and 1.1 devices.

More from the Manufacturer

Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
1
Video
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
USB:
Yes
DisplayPort:
Yes
Number of USB Ports:
8
Number of DisplayPorts:
10
Physical Characteristics
Form Factor:
Desktop
Height:
2.1"
Width:
13.9"
Depth:
6.1"
Weight (Approximate):
3.55 lb
Miscellaneous

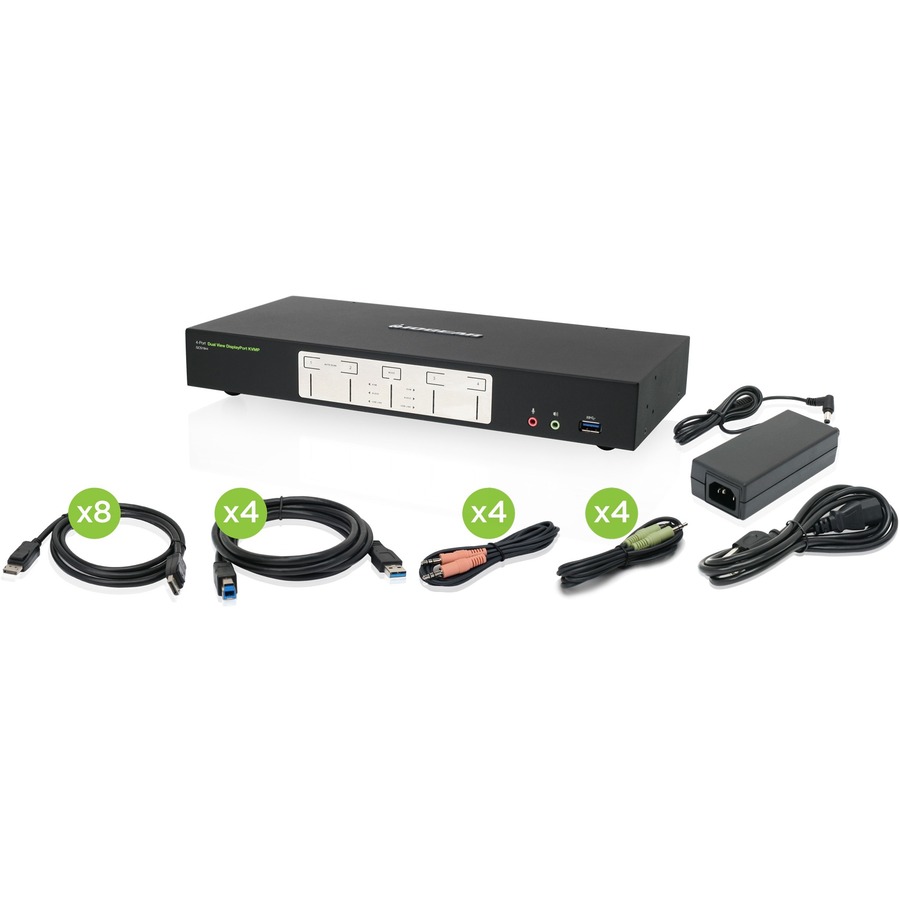

Package Contents:
  • 4-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio (TAA)
  • 8 x DisplayPort Cables
  • 4 x USB 3.0 Cables
  • 4 x Audio Cable Set
  • 1 x Power Adapter
  • 1 x Manual
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0881317516688
UPC: 881317516688
EAN: 0881317516688
UNSPSC: 43211601
