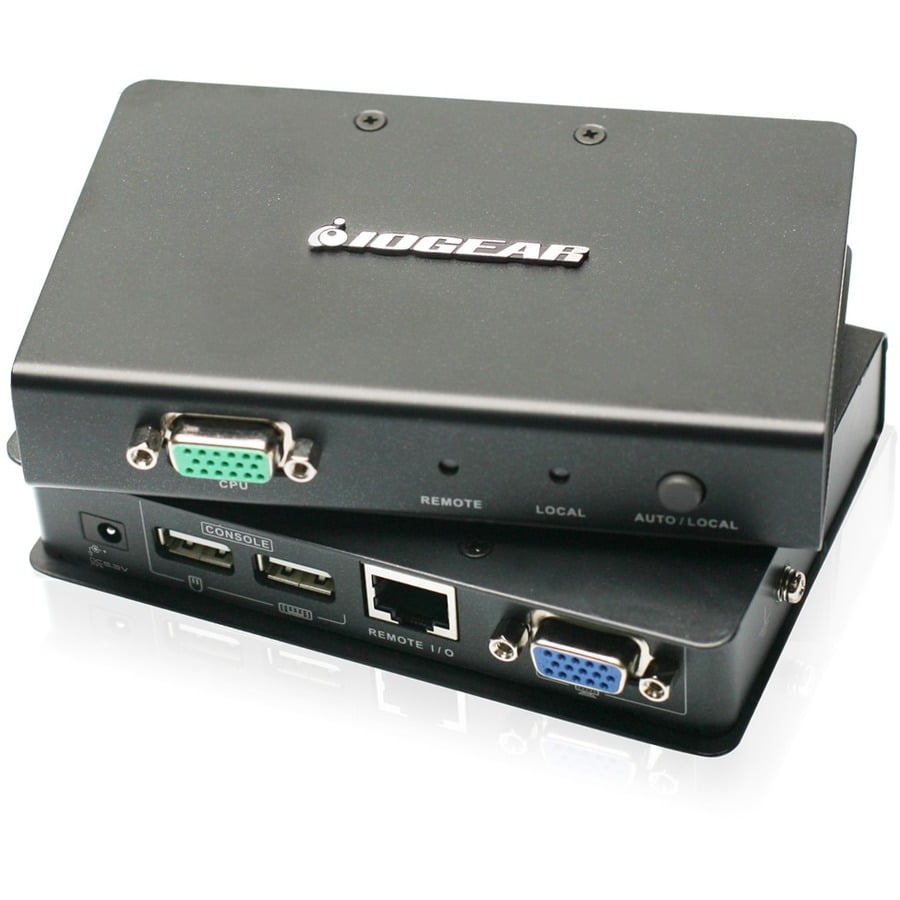

IOGEAR GCE500U Network Switch

IOGEAR - Network Switches, IOGEAR, GCE500U KVM Cosole/Extender, 1 Computer(s), 1 Local User(s), 1 Remote User(s), 500 ft Range, WUXGA, 1920 x 1200 Maximum Video Resolution, 2 x Network (RJ-45), 4 x USB, 2 x VGA, Proprietary Interface, 5.3 V DC Input Voltage, Rack-mountable
  • Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
  • Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
  • Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
  • Dual Console Operation - Control your system from either the local or remote console
  • Built-in 8KV ESD protection and 2KV surge protection
  • Maximum video resolution up to:1920 x 1200 @ 60Hz (100 ft. - 30m),1600 x 1200 @ 60HZ (330 ft. - 100m),1280 x 1024 @ 60Hz (500 ft. - 150m)
  • USB over-current detection and prevention
  • Easy To Operate - Push button selection between local and remote console
  • Rack Mountable (rack mount kit included)
  • Plug-N-Play - No need for any software driver installation
Read More
$285.80
In Stock
Add to Quote
IOGEAR Parts Wireless Switch Model Overview
Parts and accessories from IOGEAR.
IOGEAR GCE500U Network Switch Overview

The Iogear's GCE500U KVM Cosole/Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via Cat5e/6 cable up to 500 feet away. This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter.

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
KVM Technology:
Analog
Number of Computers Supported:
1
Number of Local Users Supported:
1
Number of Remote Users Supported:
1
Maximum Operating Distance:
500 ft
Video
Graphic Mode:
WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
VGA:
Yes
Proprietary Interface:
Yes
Number of VGA Ports:
2
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
4
Power Description
Input Voltage:
5.3 V DC
Physical Characteristics
Form Factor:
Rack-mountable
Miscellaneous
Package Contents:
  • GCE500U KVM Cosole/Extender
  • 2 x Rack Mount Kit
  • 1 x USB KVM Cable
  • 2 x Grounding Wire
  • 2 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0818283437068, 0881317506016, 0899722801985
UPC: 818283437068, 881317506016, 899722801985
EAN: 0818283437068, 0881317506016, 0899722801985
UNSPSC: 43211603
