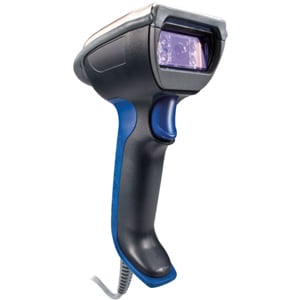

Intermec SR61TXR-USB001 Barcode Scanner

Honeywell 1980IFR-3USB Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 1980IFR-3USB Barcode Scanner.
Intermec SR61XR - Tethered Scanner Kit, 2D Imager Scanner, USB, Extended Range
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

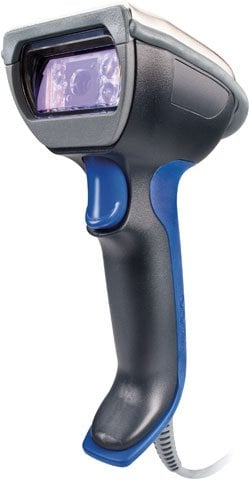

Intermec SR61XR Barcode Scanner Model Overview
The Intermec SR61XR is the first handheld scanner on the market with integrated near/far area imaging technology, offering the unparalleled flexibility to read multiple symbologies, omni-directionally, at distances from six inches to over 50 feet. Like the rest of the venerable SR61 scanner family, these models incorporate a rugged design and optional Bluetooth wireless communication.
Intermec SR61TXR-USB001 Barcode Scanner Overview

The Intermec SR61TXR is designed for inventory management, picking, shipping and receiving, cross-docking, work-in-process, and pallet tracking applications. It eliminates the need for multiple scanners and substantially reduces the total cost of ownership. With the SR61TXR, companies can effectively address their current data capture needs while ensuring built-in readiness for tomorrow's 2D bar code and image capture warehouse management requirements.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
2D
Barcode Symbology Supported:
  • Australian Post
  • Aztec
  • BPO
  • Canada Post
  • Codabar
  • Clodablock A
  • Codablock F
  • Code 11
  • Code 39
  • Code 93/93i
  • Code 128
  • GSI-128
  • DataMatrix
  • Dutch Post
  • EAN/UPC
  • GSI Composite
  • GSI DataBar
  • Expanded
  • GSI DataBar Limited
  • GSI DataBar Omni-Directional
  • GSI DataBar Stacked
  • Infomail Intelligent Mail
  • Interleaved 2 of 5
  • Japan Post
  • Matrix 2 of 5
  • Maxicode
  • Micro PDF417
  • MSI
  • Multicode
  • PDF417
  • Planet
  • Plessey
  • Postnet
  • QR Code
  • Standard 2 of 5
  • Sweden Post
  • Telepen
  • TLC 39
Image Sensor Type:
Imager
Depth of Field:
  • 6.3" - 43.2"@10mil - Code 39
  • 6.3" - 79.2"@10mil - Code 39
  • 180"@40mil - Code 39
  • 240"@51mil - Code 39
  • 342"@100mil - Code 39
  • 7.87" - 55.2"@13mil - EAN 100%
  • 6.2" - 31.2"@10mil - DataMatrix
  • 157.2"@55mil - DataMatrix
  • 314.4"@100mil - DataMatrix
  • 600"@300mil - DataMatrix
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Miscellaneous
Package Contents:
  • SR61TXR Handheld Bar Code Reader
  • Desktop Stand
  • Wall Mount/Vehicle Holder
  • Hands Free Stand
  • Belt Holster
  • Dangle Suspension
  • Wrist Strap (Lanyard)
Additional Information:

USB Cable separate

Item Numbers
GTIN: 0777787400285, 0854587173349, 5712505723579
UPC: 777787400285, 854587173349
EAN: 0777787400285, 0854587173349, 5712505723579
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Intermec SR61TXR-USB001 Barcode Scanner is also known as INT-SR61TX20 or SR61TXRUSB001.
