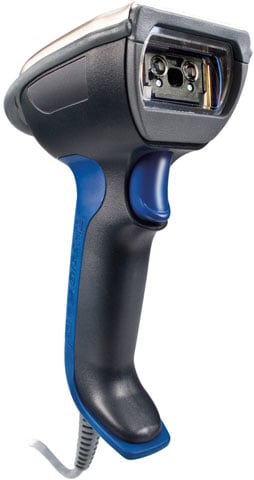

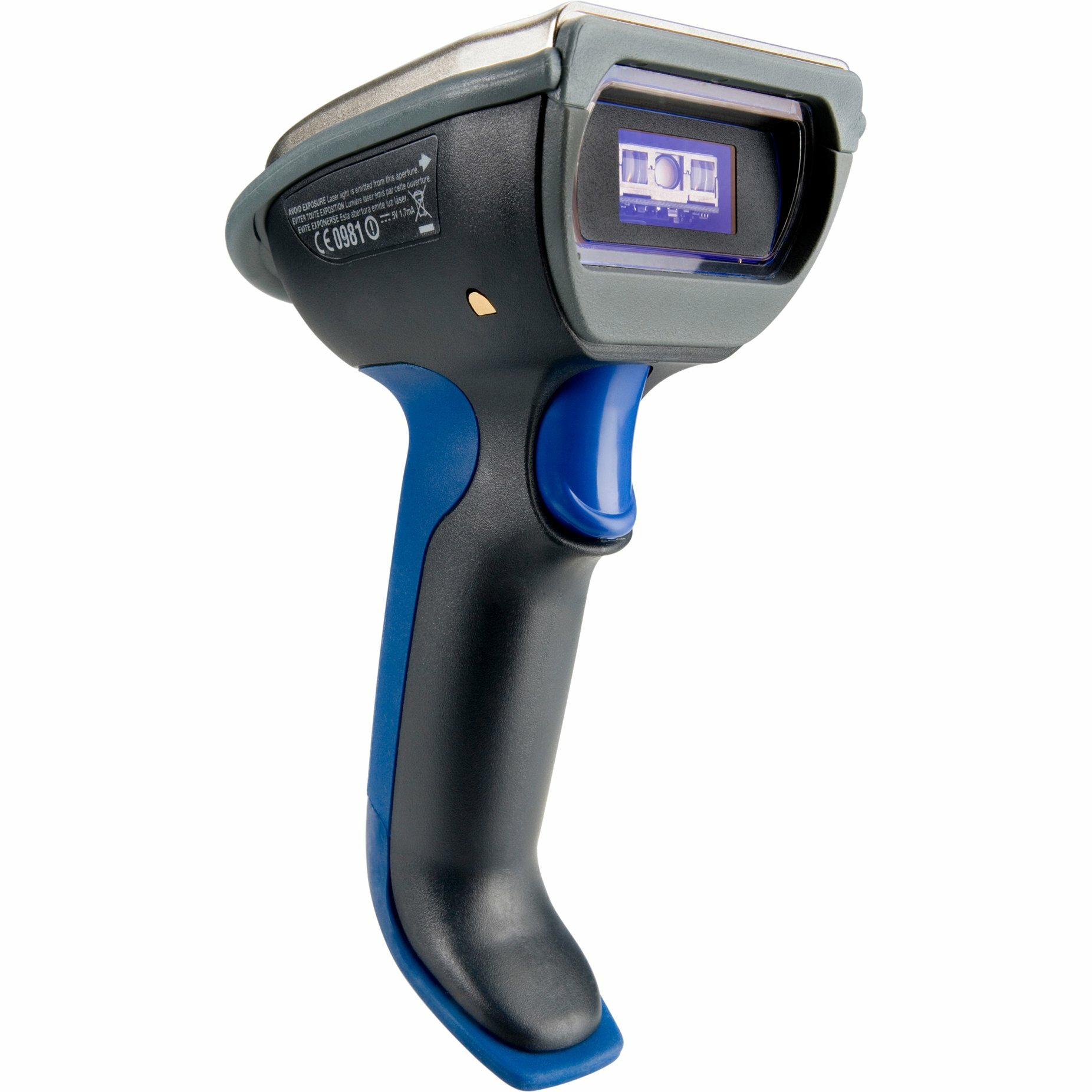

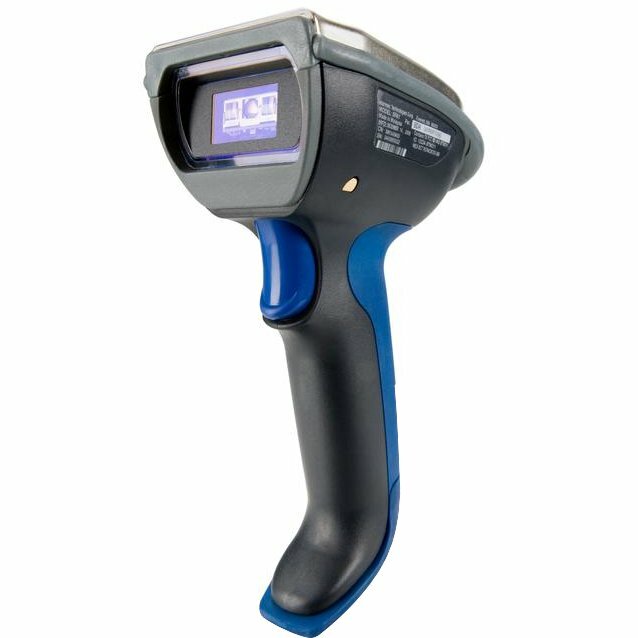

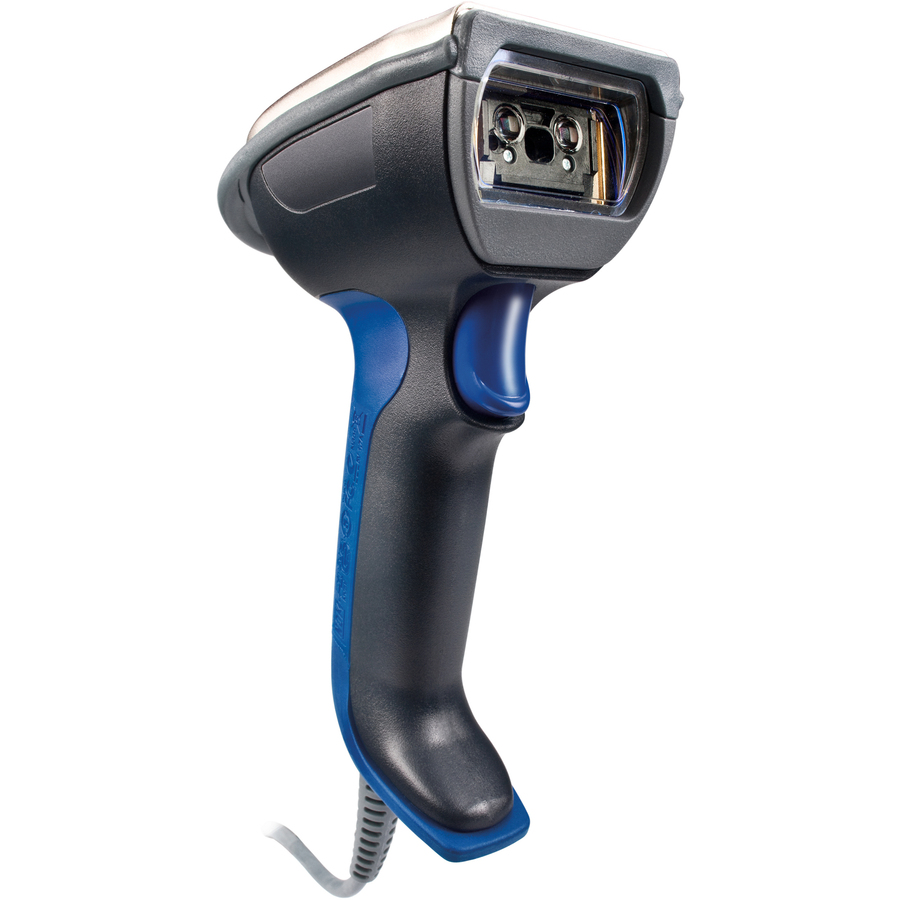

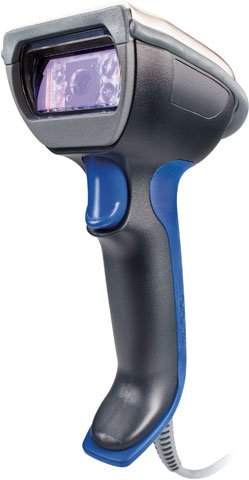

Intermec SR61HP 2D – Barcode Scanner – 1D

Part Number: SR61THP-SER002
Model: SR61HP 2D
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  SR61THP, HIGH PERFORMANCE AREA IMAGER SERIAL KIT, INCLUDES SCANNER WITH EA30 SCAN ENGINE, LASER AIMER, SERIAL CABLE 236-185-001, POWER SUPPLY 851-089-205, ORDER POWER CORD SEPARATELY
Explore all Intermec SR61HP 2D Barcode Scanners
Add to Quote
Intermec SR61THP-SER002 Barcode Scanner
Intermec SR61THP-SER002 Barcode Scanner
Intermec SR61THP-SER002 Barcode Scanner
Intermec SR61THP-SER002 Barcode Scanner
Intermec SR61THP-SER002 Barcode Scanner
Intermec SR61THP-SER002 Barcode Scanner Intermec SR61THP-SER002 Barcode Scanner Intermec SR61THP-SER002 Barcode Scanner Intermec SR61THP-SER002 Barcode Scanner Intermec SR61THP-SER002 Barcode Scanner
Full specifications (PDF)

Intermec SR61HP 2D Barcode Scanner Model Overview

Presenting the pinnacle of imaging: Intermec's fastest scanning engine in the most robust form factor. Incredible motion tolerance and omni-directional scanning makes the SR61HP the most responsive scanner in its class.
Intermec SR61THP-SER002 Barcode Scanner Overview

Presenting the pinnacle of imaging: our fastest scanning engine in our most robust form factor. Incredible motion tolerance and omni-directional scanning make SR61HP the most responsive scanner in its class.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D & Stacked:

  • Codabar
  • Codablock
  • Code 11
  • Code 128 (GS1-128)
  • Code 39
  • Code 93/93i
  • EAN/UPC
  • GS1 DataBar Expanded
  • GS1 DataBar Limited
  • GS1 DataBar Omni-Directional
  • GS1 DataBar Stacked
  • Interleaved 2 of 5
  • Macro PDF
  • Micro PDF
  • Matrix 2 of 5
  • MSI
  • PDF417
  • Plessey
  • Standard 2 of 5
  • Telepen
  • TLC39

2D:

  • Aztec
  • DataMatrix
  • GS1 Composite
  • Maxicode
  • QR Code

Postal:

  • Australian Post
  • BPO
  • Canada Post
  • Dutch Post
  • Infomail
  • Intelligent Mail
  • Japan Post
  • Planet
  • Postnet
  • Sweden Post
Image Sensor Type:
Imager
Depth of Field:
  • 8cm - 14cm@5mil - Code 39
  • 7cm - 46cm@20mil - Code 39
  • 9.5cm - 70cm@40mil - Code 39
  • 6cm - 32cm@13mil - EAN/UPC
  • 5.5cm - 26cm@10mil - PDF417
  • 6.5cm - 36cm@15mil - PDF417
  • 6cm - 21cm@10mil - DataMatrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
5.2"
Width:
2.8"
Length:
7.6"
Weight (Approximate):
11.20 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Item Numbers
UNSPSC: 43211701
