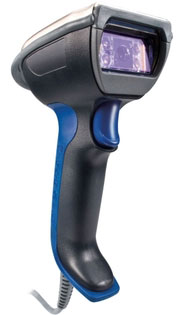

Intermec SR61TDPM-002 Barcode Scanner

The Intermec SR61TDPM-002 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Intermec SR61 - Scanner Only, Industrial 2D Imager, High Density, DPM. Cables sold separately.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

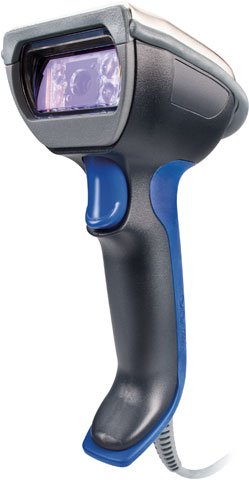

Intermec SR61 Barcode Scanner Model Overview
The Intermec SR61 handheld scanner family is built for rugged applications in warehouse, distribution and industrial manufacturing, and also supports proof of delivery and point of service applications. With a high impact housing that is virtually impenetrable and a solid state design, the SR61 exceeds industrial and military standards and can be counted on to perform well in harsh environments where dust, moisture or extreme temperatures are constants and operational uptime is critical.
Intermec SR61TDPM-002 Barcode Scanner Overview

Reliably scan direct part marks applied with a variety of manufacturing processes: dot peening, chemical etching, laser etching, casting, engraving or stenciling-while still providing snappy performance on standard bar codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Codabar
  • Codablock
  • Code 11
  • Code 128 (GS1-128)
  • Code 39
  • Code 93/93i
  • EAN/UPC
  • GS1 DataBar Expanded
  • GS1 DataBar Limited
  • GS1 DataBar Omni-Directional
  • GS1 DataBar Stacked
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • Macro PDF
  • Micro PDF
  • MSI
  • PDF417
  • Plessey
  • Standard 2 of 5
  • Telepen
  • TLC39

2D:

  • Aztec
  • DataMatrix
  • GS1 Composite
  • MaxiCode
  • QR Code

Postal:

  • Australian Post
  • BPO
  • Canada Post
  • Dutch Post
  • Infomail
  • Intelligent Mail
  • Japan Post
  • Planet
  • Postnet
  • Sweden Post
Image Sensor Type:
Imager
Depth of Field:
  • 2.17" - 3.54"@3mil - Code 39
  • 1.97" - 4.13"@4mil
  • 1.97" - 4.72"@5mil
  • 2.95" - 9"@20mil
  • 14.17"@1mil
  • 2.36" - 7.09"@EAN 100%
  • 1.97" - 4.92"@5mil - PDF417
  • 1.57" - 6.5"@10mil
  • 2.36" - 8.07"@15mil
  • 2.17" - 4.13"@5mil - DataMatrix
  • 1.77" - 5.51"@10mil
Scan Pattern:
Omni-directional
Physical Characteristics
Height:
5.2"
Width:
2.8"
Length:
7.6"
Weight (Approximate):
11.29 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0735548765134
UPC: 735548765134
EAN: 0735548765134
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Intermec SR61TDPM-002 Barcode Scanner is also known as INT-SR61TDPM002 or SR61TDPM002.
