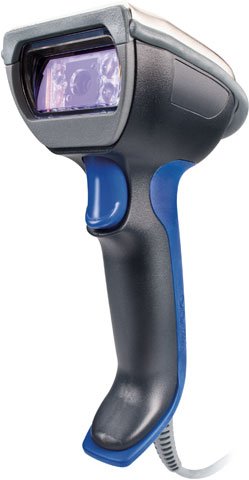

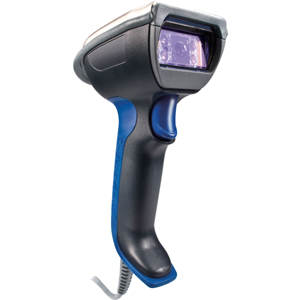

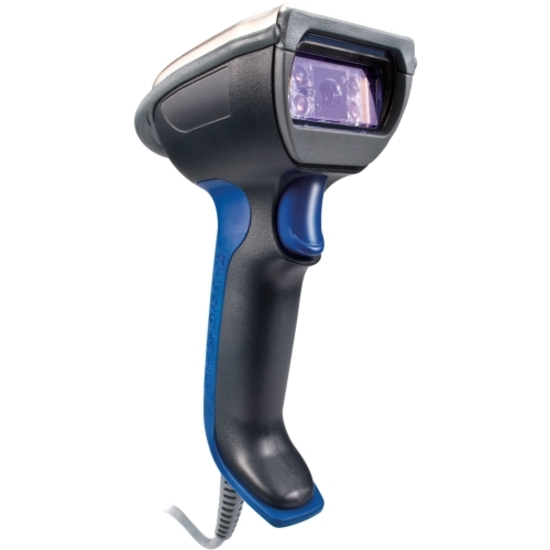

Intermec SR61T1D-002 Barcode Scanner
Intermec SR61T1D-002 Barcode Scanner
Intermec SR61T Linear Imager -
Tethered Scanner Kit (Linear Imager EV10). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 236-240-001), PS/2 (Part# 236-214-001), or RS-232 Serial cables (Part# 236-185-001) and a Power supply (Part# 851-089-205).
The Intermec SR61 handheld scanner family is built for rugged applications in warehouse, distribution and industrial manufacturing, and also supports proof of delivery and point of service applications. With a high impact housing that is virtually impenetrable and a solid state design, the SR61 exceeds industrial and military standards and can be counted on to perform well in harsh environments where dust, moisture or extreme temperatures are constants and operational uptime is critical.
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Image Sensor: Linear
- Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93/93i
- Code 128
- GSI-128
- EAN/UPC
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- Standard 2 of 5
- Telepen
- TLC 39
- Codabar
- Code 11
- Code 39
- Code 93/93i
- Code 128
- GSI-128
- EAN/UPC
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- Standard 2 of 5
- Telepen
- TLC 39
- Maximum Scan Resolution: 4 mil
- Depth of Field:
- 3.94" - 5.51"@3.80 mil - Code 39
- 3.54" - 6.89"@5 mil - Code 39
- 2.17" - 10.24"@10 mil - Code 39
- 1.57" - 13.78"@20 mil - Code 39
- 2.95" - 19.29"@40 mil - Code 39
- 2.05" - 11.22"@13 mil - EAN/UPC
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: SR61T
- Product Name: SR61T Handheld Barcode Reader
Physical Characteristics
- Height: 7.6"
- Width: 2.8"
- Depth: 5.2"
- Weight (Approximate): 11.20 oz
Other
- Package Contents:
- SR61T Handheld Barcode Reader
- Desktop Holder
- Wall Mount/Vehicle Holder
- Hands Free Stand
- Belt Holster
- Dangle Suspension
- Wrist Strap (Lanyard)
- SR61T Handheld Barcode Reader
- Desktop Holder
- Wall Mount/Vehicle Holder
- Hands Free Stand
- Belt Holster
- Dangle Suspension
- Wrist Strap (Lanyard)
- Platform Supported: PC
Full specifications (PDF)| Brand | Intermec |
| Model | SR61 |
| Scanner Capability | 1D |
| Scanner Type | Imager |
Recommended Accessories for Model: Intermec SR61 Scanner
|
Intermec SR61 Accessories (1-974028-025)
US AC power cord
:
|
$17.10 + Add to Quote |
|
Intermec SR61 Accessories (075082-002)
Battery With Boot Accessory, Honeywell-Intermec, Compatible with SR61 and IP30.
:
|
$112.20 + Add to Quote |
|
Intermec Cables (236-219-001)
Accessory, Cable, USB, Powered, Coiled 3 feet to 8 feet
:
|
$100.00 + Add to Quote |
|
Intermec Cable (236-184-001)
RS-232 6.5 ft. 9pin coil for CV30/CV60 (Power from host. Can also be used for connection to Intermec handheld terminals via RS-232 adapter for all configs.)
:
|
$64.60 + Add to Quote |
|
Intermec Cable (236-240-001)
USB cable, 6.5 ft.
:
|
$37.90 + Add to Quote |
Protect Your Product
|
Intermec Service Contracts (SVCSR61TDPM-EXW5)
SERVICE CONTRACT, SR61TDPM, BASIC, 10-15 DAY TURN, 5 YEARS (3 YEAR FACTORY WARRANTY + 2 YEAR EXTENDED)
|
$93.00 + Add to Quote |
|
|
Intermec Service Contracts (SVCSR61TDPM-EXW4)
SERVICE CONTRACT, SR61TDPM, BASIC, 10-15 DAY TURN, 4 YEARS (3 YEAR FACTORY WARRANTY + 1 YEAR EXTENDED)
|
$46.50 + Add to Quote |
|
|
Intermec Service Contracts (SVCSR61TDPM-EXW1R)
SERVICE CONTRACT, SR61TDPM, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT
|
$56.30 + Add to Quote |
|
|
Intermec Service Contracts (SVCSR61T-EXW5)
SERVICE CONTRACT, SR61T, BASIC, 10-15 DAY TURN, 5 YEARS (3 YEAR FACTORY WARRANTY + 2 YEAR EXTENDED)
|
$67.40 + Add to Quote |
|
|
Intermec Service Contracts (SVCSR61T-EXW4)
SERVICE CONTRACT, SR61T, BASIC, 10-15 DAY TURN, 4 YEARS (3 YEAR FACTORY WARRANTY + 1 YEAR EXTENDED)
|
$33.50 + Add to Quote |
The Intermec SR61T1D-002 is also known as Intermec Technologies INT-SR61TX10 or SR61T1D002 .
