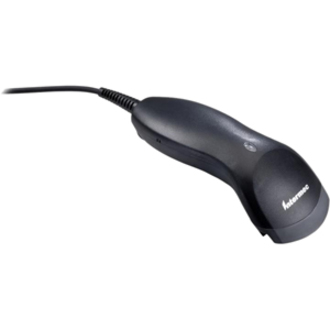

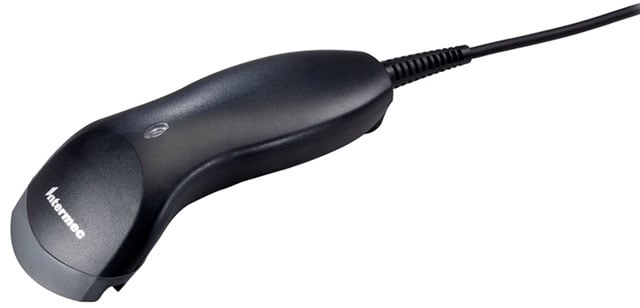

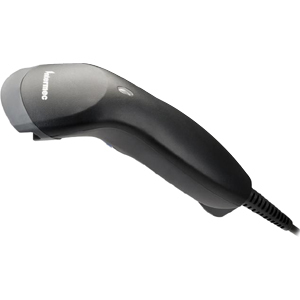

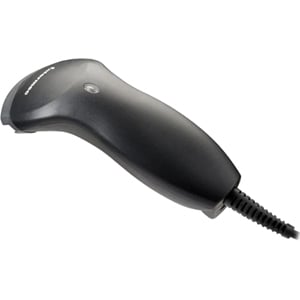

Intermec SG10T1D-USB001 Barcode Scanner

Intermec SG10T - USB Kit with cable, power from host
Easy connection to the USB and Keyboard wedge interfaces

Intermec's SG10T is a simple, affordable and reliable handheld barcode reader designed for small to medium sized businesses. The SG10T reads all common 1D barcodes with ease. No complicated set up, no accessories required to complete the solution and no cordless connections to fuss with. This straightforward approach enables the SG10T to be the best and only choice when all you need to do is read a 1D barcode.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 130 scan/s
  • Connectivity Technology: Cable
  • Image Sensor:
    • Linear
    • Imager
  • Barcode Symbology Supported:
    • Codabar
    • Code 93
    • Code 39
    • Full ASCII Code39
    • Code 128
    • EAN 128
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • Standard 2 of 5
    • Code 11
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • GS1 DataBar Omni-Directional
    • GS1 DataBar Limited
    • GS1 DataBar Expanded
    • Codabar
    • Code 93
    • Code 39
    • Full ASCII Code39
    • Code 128
    • EAN 128
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • Standard 2 of 5
    • Code 11
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • GS1 DataBar Omni-Directional
    • GS1 DataBar Limited
    • GS1 DataBar Expanded
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 1.57"@5 mil - Code 39
    • 0 mil - 3.54"@10 mil - Code 39
    • 0 mil - 3.94"@13 mil - UPC/ EAN
    • 0 mil - 4.33"@15 mil - Code 39
    • 0.39" - 4.72"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SG10T
  • Product Name: SG10T Handheld Barcode Reader

Physical Characteristics

  • Height: 2.1"
  • Width: 2.6"
  • Depth: 6.5"
  • Weight (Approximate): 3.70 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • REACH
    • WEEE
  • Certifications & Standards:
    • FCC Part 15 Class B (United States)
    • Industry Canada ICES-003 Class B (Canada)
    • EN 55022: 2006/ A1: 2007
    • CISPR Publication 22: 2005/ A1:2005/ A2:2006, Class B Limits and Methods
    • EN 55024: 1998/ A1:2001/ A2: 2003 (CISPR 24) ITE
    • UL
    • EN 60950 (2nd Edition)
    • 60825-1
    • CE Marked

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)



The Intermec SG10T1D-USB001 is also known as Intermec Technologies INT-SG10T1DUSB001 or SG10T1DUSB001 .
