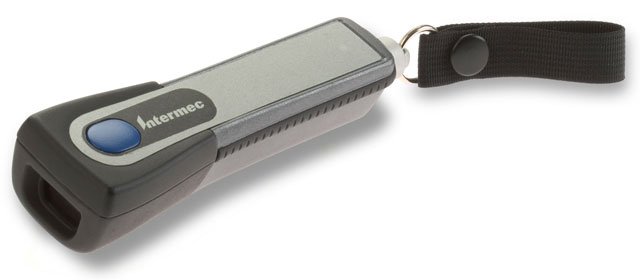

Intermec SF51A01100 Barcode Scanner

Intermec SF51 - Scanner only, no PDF417 scanning, with Belt Clip
  • Increase productivity and performance by excluding the cable
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 200 scan/s
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More

Full specifications (PDF)

Bluetooth Communications Gives Complete Mobility
The Intermec SF51 is the most convenient and easy-to-carry scanner on the market. The SF51 features a magnetic attachment that lets users wear the scanner at the waist, wrist or chest, keeping hands free for tasks when the scanner is not used. Bluetooth communications makes cordless connections to Intermec terminals easy. The SF51 uses CMOS technology and durable construction to give high performance in any environment.
Intermec SF51A01100 Overview

Intermec SF51 cordless scanner is designed for applications that require complete mobility and hands free scanning

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • EAN-128
  • Interleaved 2 of 5
  • UPC Add-ons
  • EAN Add-ons
  • Codabar
  • Code 93
  • MSI
  • Plessey
  • Code 93i
  • Code 11
  • Telepen
  • ISBT 128
  • RSS
  • RSS-Stacked
  • Coda Block
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
200 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 4.7" - 5.1"@4mil
  • 1.8" - 9.4"@12mil
  • 1.7" - 11.8"@20mil
  • 4.7" - 15.7"@40mil
  • 1.8" - 9.4"@100% UPC/EAN
Scanning Distance:
100.07 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Height:
1.3"
Width:
1.8"
Depth:
6.1"
Weight (Approximate):
9.30 oz
Miscellaneous
Package Contents:
  • SF51 Bar Code Reader
  • Belt clip
Additional Information:

connect to PC via USB or serial port using an Intermec RS232 or USB Bluetooth adapter.

USB Cable separate

Certifications & Standards:
  • UL/EN 60950 Safety of Information TechnologyEquipment
  • EN60825-1 Safety of Laser Products (which alsoregulates LEDs)
  • EN 55022 / CISPR22, Class B InformationTechnology Equipment: Radio frequencydisturbance characteristics
  • Part 15 of FCC rules, Class B Radio FrequencyDevices
  • US and Canadian UL (UL60950)
  • TUV or GS (Germany) (EN60950, EN60825-1)
  • NOM (Mexico) (NOM-019-SCFI-1998 based onIEC60950)
  • C-TICK (Australia and New Zealand)(AS/NZS 3548 based on CISPR22)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
