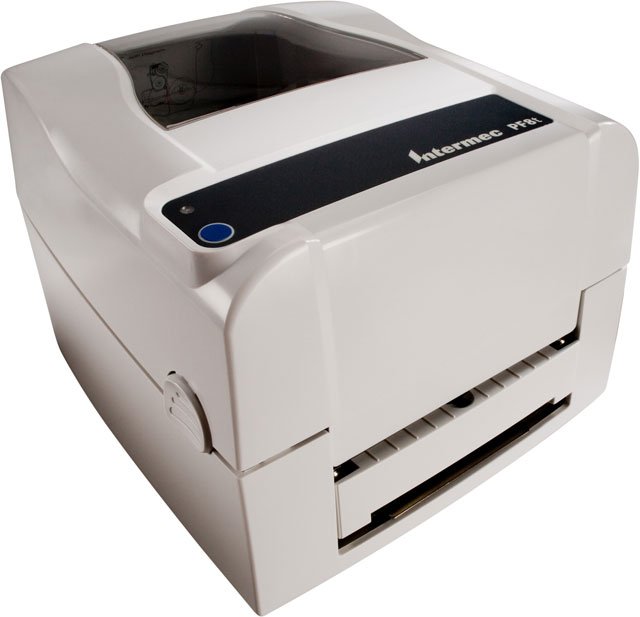

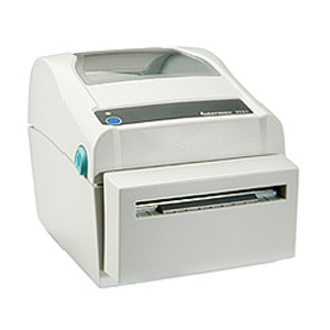

Intermec EasyCoder PF8t Barcode Label Printer Model Overview
The Intermec EasyCoder PF8t printer features thermal transfer printing, offers compact size, sturdiness, and silent operation, and is perfect for a variety of applications in retail, office, service industry and healthcare settings. The inexperienced or busy user will appreciate Intermec's Connect to Print concept, a standard feature on the EasyCoder PF8t, which makes setting up and printing a quick and easy task. Connect to Print means that the Intermec EasyCoder PF8t is all inclusive of software, drivers, cables, and sample labels, for one low price.
The PF8T printer, offer compact size, sturdiness and silent operation, perfect for a variety of applications in retail, office, service industry and healthcare settings. The inexperienced or busy user will appreciate Intermec's Connect to Print concept, a standard feature on PF8T, which makes setting up and printing a quick and easy task.The unique double clam shell design of PF8T make it extremely easy to load supplies with the simple drop in method. Label and ribbon changes can be done in no time. The PF8T thermal transfer printer is able to accommodate very large ribbon rolls (10,800 inches) for a printer in its class. This eliminates frequent ribbon changes and downtime. The PF8T also accepts a compact flash card to expand its memory by 1GB.
What barcode types does the Datalogic HD3130 scanner read?
The Datalogic HD3130 uses a 1D CCD imager that autodiscriminates all standard 1D linear codes, including GS1 DataBar linear codes and postal codes like China Post. It also reads stacked codes including GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, and GS1 DataBar Stacked Omnidirectional formats. This makes it ideal for general-purpose retail and warehouse applications where 1D barcode scanning is the primary requirement.
What barcode types can the Datalogic HD3130 scanner read?
The Datalogic HD3130 is a 1D linear imager that reads a comprehensive range of barcode symbologies including Code 39, Code 128, EAN/UPC, Code 93, CODABAR, and many others. With its CCD solid-state sensor and 0.1mm maximum resolution, it delivers reliable reading performance across standard retail and warehouse barcode formats. We offer the HD3130 as a proven solution for general-purpose barcode capture in point-of-sale and inventory environments.
What barcode types can the Datalogic HD3130 scanner read?
The Datalogic HD3130 Heron imager reads a comprehensive range of 1D barcode formats including Code 39, Code 128, EAN/UPC, Code 93, CODABAR, and many others. It features a CCD solid-state sensor with 2048 pixels and supports specialized formats like ISBN/ISSN and ISBT128, making it suitable for retail, warehouse, and general-purpose applications. We offer this scanner as part of a complete kit that includes a stand and USB cable for immediate deployment.
Is the HD3130 a corded or wireless scanner?
The Datalogic HD3130-BK is a corded handheld scanner that connects via USB (1.8m cable included). This wired connection ensures consistent power delivery and eliminates battery management concerns, making it ideal for fixed checkout stations and high-volume scanning environments. The USB interface provides plug-and-play compatibility with most modern POS and inventory systems available from us.
What is the scanning speed and reading distance of the HD3130?
The HD3130 delivers up to 256 scans per second with a maximum reading distance of 21 cm for EAN13 barcodes at standard resolution. The scanner achieves a maximum resolution of 0.1 mm (approximately 4 mils), making it ideal for retail point-of-sale environments where speed and accuracy are critical. Contact us today to discuss your specific scanning distance requirements.
How fast does the HD3130 scan barcodes?
The Datalogic HD3130 delivers a maximum read rate of 270 scans per second, enabling quick transaction processing at the point-of-sale or in warehouse environments. With a maximum resolution of 0.100 mm (4 mils) and a minimum print contrast ratio of 15%, the scanner maintains reliable performance even with standard-quality barcodes. This scanning speed is optimized for high-volume retail and logistics applications.
What is the scanning speed and reading distance of the HD3130?
The HD3130 delivers up to 256 scans per second with a maximum reading distance of 21cm for standard EAN13 barcodes at 1mm resolution. This performance level is well-suited for retail checkout and general warehouse applications where moderate scanning distances are typical. Contact us today to confirm specific performance requirements for your use case.
How does the HD3130 connect to my POS system?
The Datalogic HD3130 offers multiple connectivity options including USB, RS232, and keyboard wedge interfaces, allowing flexible integration with most POS systems and computers. The kit includes a 2-meter USB cable (1.8 m USB connector length) for direct connection to standard computer ports. We can help you determine the best connection method for your existing setup—visit barcodesinc.com or contact us today.
What connectivity options are available with the HD3130?
The HD3130 offers multi-interface connectivity including RS-232, USB, and Keyboard Wedge options, allowing flexible integration into existing point-of-sale and warehouse management systems. The kit includes a USB cable for straightforward setup, and the scanner can be configured for different interface requirements depending on your system architecture. Contact us today to discuss which connectivity option best fits your infrastructure.
Is the Datalogic HD3130 durable enough for warehouse environments?
Yes, the HD3130 is built for tough environments with IP40 particulate and water sealing, 16 kV ESD protection, and the ability to withstand repeated drops from 1.5 meters (5 feet) onto concrete surfaces. It operates reliably in ambient light conditions up to 100,000 lux and handles humidity from 5-90% non-condensing, making it suitable for both climate-controlled retail spaces and warehouse settings. The scanner weighs only 150 grams, providing portability without sacrificing ruggedness.
Is the HD3130 suitable for high-light retail environments?
Yes, the HD3130 is designed to operate reliably in ambient light conditions up to 100,000 lux, making it well-suited for bright retail and outdoor point-of-sale environments. Its visible red LED light source and intelligent aiming system ensure consistent performance even in challenging lighting conditions. The scanner's stylish design with color-changing lights also enhances the customer experience at checkout.
Can the HD3130 work in bright retail lighting conditions?
Yes, the Datalogic HD3130 is rated to operate reliably in ambient light conditions up to 100,000 lux, making it suitable for bright retail environments and outdoor-facing checkout areas. Its visible red LED aiming system and CCD sensor technology maintain consistent reading performance even in challenging lighting. This durability in high-light conditions is one reason we recommend it for modern point-of-sale installations.
What's included in the HD3130 kit?
The Datalogic HD3130-WHK1B kit includes the 1D barcode scanner, a convenient stand for hands-free operation, and a USB cable for immediate deployment. The white color option provides a modern aesthetic for customer-facing point-of-sale environments, while the included stand allows flexible positioning for different scanning workflows. We offer this complete kit ready to deploy—visit barcodesinc.com to order or contact us for volume pricing.
What are the power consumption specifications for the HD3130?
The HD3130 requires 5VDC power and draws a maximum of 180mA during operation, with typical operating consumption around 155mA. In sleep mode, power consumption drops to just 120µA, and USB suspend mode uses 350µA. These efficient power characteristics make it suitable for extended operation in retail environments without thermal concerns.
What are the power requirements and battery life for the HD3130?
The HD3130 operates on 5VDC (±5%) with a maximum power consumption of 180 mA during operation and only 120 µA in sleep mode, making it highly efficient for corded USB deployments. The scanner includes USB suspend mode at 350 µA for additional power savings when not in active use. Since it's a corded scanner, there are no battery replacement concerns—available from us with a complete kit.
What are the power requirements for the HD3130 scanner?
The HD3130 operates on 5 VDC with typical current consumption of less than 300 mA and maximum consumption under 500 mA, making it compatible with standard USB power supplies and point-of-sale systems. The low power draw ensures minimal impact on your infrastructure while supporting continuous scanning operations throughout the business day. The scanner's efficient design also reduces heat generation in enclosed retail or warehouse environments.
What environmental conditions can the HD3130 withstand?
The Datalogic HD3130 is designed to operate in temperatures ranging from 0°C to +55°C, making it suitable for most indoor retail and warehouse environments. Its ABS and polycarbonate construction with co-molded rubber provides durability for daily handling in busy point-of-sale settings. Visit barcodesinc.com or contact us today to discuss environmental specifications for your specific application location.
What environmental conditions can the HD3130 withstand?
The Datalogic HD3130 is built to operate in temperatures ranging from 0°C to +55°C and features a durable ABS and polycarbonate case with co-molded rubber for grip and impact resistance. Weighing approximately 160 grams, it's ergonomically designed for all-day handheld use in retail and office environments. Contact us today for information about extended warranty or ruggedized options if you need enhanced durability.
The Intermec PF8TA03100000 Barcode Label Printer is also known as
INT-PF8T03
or PF8TA03100000.
Full specifications (PDF)
