Intermec PF8TA03001000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

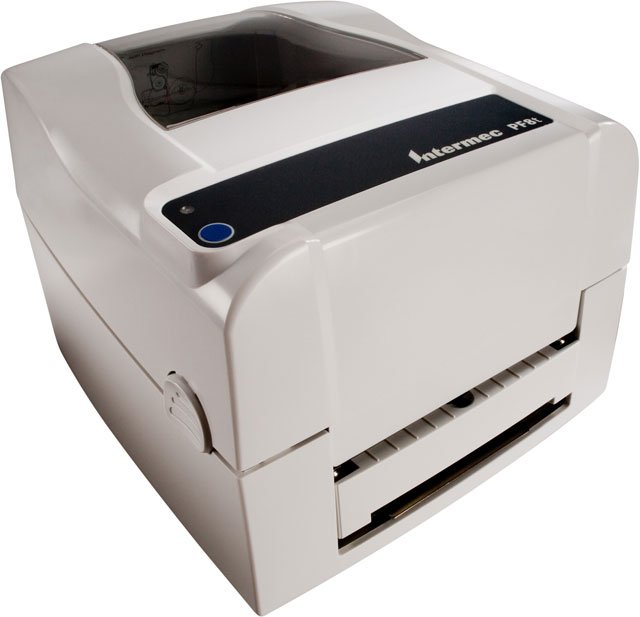

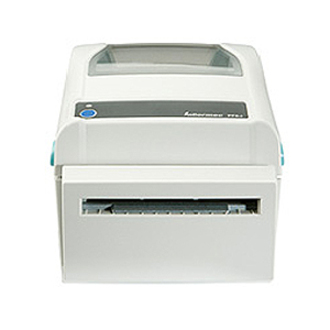

Intermec EasyCoder PF8t - Thermal transfer, 300 dpi, RS-232 serial, Parallel and USB interfaces. Power cord (Part# 226-000001-200) not included. See accessories.
Thermal transfer printing at a great price

The Intermec EasyCoder PF8t printer features thermal transfer printing, offers compact size, sturdiness, and silent operation, and is perfect for a variety of applications in retail, office, service industry and health care settings. The inexperienced or busy user will appreciate Intermec's Connect to Print concept, a standard feature on the EasyCoder PF8t, which makes setting up and printing a quick and easy task. Connect to Print means that the Intermec EasyCoder PF8t is all inclusive of software, drivers, cables, and sample labels, for one low price.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.20"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • EAN
    • QR Code
    • Data Matrix
    • PDF-417
    • Maxi Code
    • UCC 128

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: PF
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PF8T
  • Product Name: EasyCoder PF8T Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 6.8"
  • Width: 8.9"
  • Depth: 11.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • EasyCoder PF8T Thermal Label Printer
    • Software Media (Includes: label Design Software, Windows Driver and Documentation)
    • Connector Cables
    • EasyCoder PF8T Thermal Label Printer
    • Software Media (Includes: label Design Software, Windows Driver and Documentation)
    • Connector Cables
  • Additional Information: Note: Power cord (Part# 226-000001-200) not included, must be purchased separately.

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 68"
  • Media Sensor:
    • Reflective Media Sensor
    • Label Taken Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • EPL
    • E-Sim

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model EasyCoder PF8t
Maximum Print Width 4.65
Interface Options Serial, USB, Parallel
Printer Type Desktop
Print Method Thermal Transfer
Max Roll Outer Diameter 5
Max Label Width 4.65
Print Speed 2
Print Resolution 305 dpi
Label Core 1 inch
Printer Mobility Not Mobile
