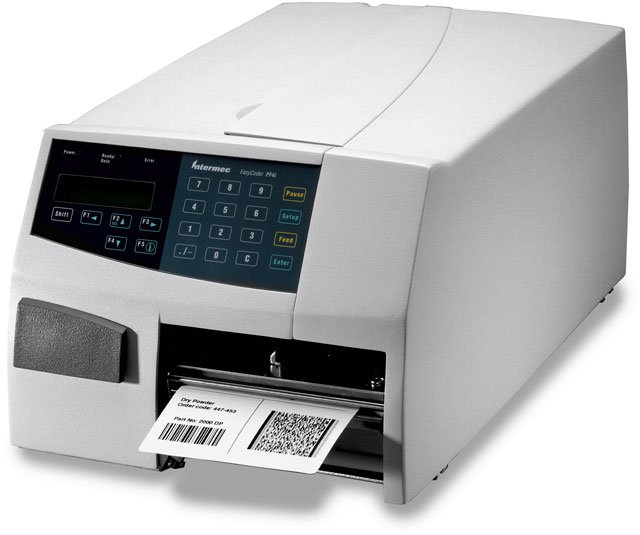

Intermec PF4ID03100031130 Barcode Label Printer

Intermec EasyCoder PF4i - Heavy Industrial, Dome Door, Universal Firmware, Self Strip, LTS, Real-time clock, Thermal transfer 300 DPI
Exceptionally fast in throughput and printing

The Intermec EasyCoder PF4i 4-inch-width printer features optional integrated wired or wireless EasyLAN networking. The wireless interface uses an integrated standard 802.11b/g radio providing 128-bit WEP encryption of the information relayed through the network. The magnetic QuickMount printhead eliminates hassles and downtime. The printhead is replaced quickly and easily with the magnet and u-brackets ensuring proper alignment. The double-clutching ribbon mechanism means that you are not restricted to ribbon types based on how they are wound. The handy, inexpensive and PC-compatible CompactFlash memory technology provides quick and easy memory expansion for extra storage of formats, graphics, fonts, and provides an easy way to update printer.

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Self Strip
    • Real Time Clock

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PF4i
  • Product Name: EasyCoder PF4i Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 7"
  • Width: 9.6"
  • Depth: 15.9"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Label
    • Tag
    • Roll Fed
    • Fanfold
    • Gap
    • Notch
    • Black Mark
    • Continuous Form
  • Media Thickness: 7500 mil
  • Media Sensor: Label Taken Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • ZPL
    • DPL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model EasyCoder PF4i
Label Core 1.5 inches
Max Roll Outer Diameter 6
Maximum Print Width 4.16
Print Speed 7
Max Label Width 4.50
Printer Type Industrial
Print Resolution 305 dpi
Print Method Thermal Transfer
Printer Mobility Not Mobile
