Intermec EasyCoder PF4i – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: PF4IC80000301021
Model: EasyCoder PF4i

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
4.5 inch

Product Description:

  PF4i DT, 203dpi, Self Strip, LTS

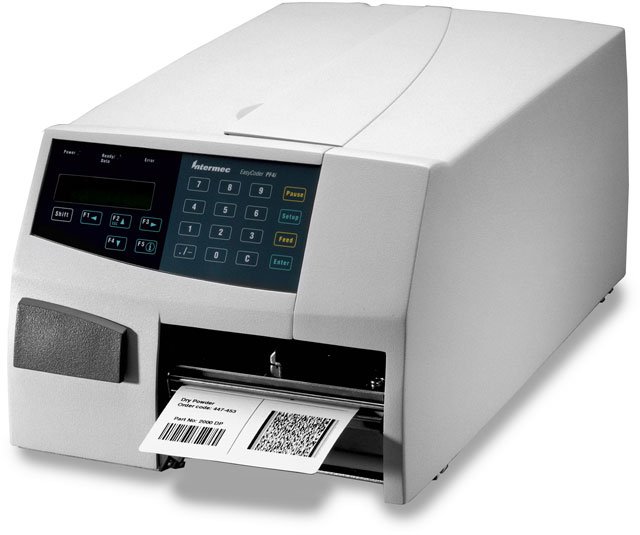

Intermec EasyCoder PF4i Barcode Label Printer Model Overview

The Intermec EasyCoder PF4i 4-inch-width printer features optional integrated wired or wireless EasyLAN networking. The wireless interface uses an integrated standard 802.11b/g radio providing 128-bit WEP encryption of the information relayed through the network. The magnetic QuickMount printhead eliminates hassles and downtime. The printhead is replaced quickly and easily with the magnet and u-brackets ensuring proper alignment. The double-clutching ribbon mechanism means that you are not restricted to ribbon types based on how they are wound. The handy, inexpensive and PC-compatible CompactFlash memory technology provides quick and easy memory expansion for extra storage of formats, graphics, fonts, and provides an easy way to update printer.
Intermec PF4IC80000301021 Barcode Label Printer Overview

The PF4i is designed to excel where space is limited. Utilizing the latest technology, it features a strong and proven mechanical platform, and powerful newly developed electronics. The handy, inexpensive and PC compatible CompactFlash memory technology provides quick and easy memory expansion for extra storage of formats, graphics, fonts, and provides an easy way to update printer. The PF4i bar code printer is exceptionally fast in throughput and printing, reliable, and delivers very high print quality.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.87 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-A
  • Code 128-C
  • DUN-14/16
  • EAN-8
  • EAN-13
  • EAN 128
  • EAN-128 Subset A
  • EAN-128 Subset C
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • Straight 2 of 5
  • UCC 128
  • UPC-5 Digits Add-on
  • UPC-A
  • UPC-D1
  • UPC-D2
  • UPC-D3
  • UPC-D4
  • UPC-D5
  • UPC-E
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Plessey
  • QR Code
  • Micro PDF-417
  • Code 2 of 5
  • UPC/EAN
  • HIBC Code 39
  • HIBC Code 128
  • JIS-ITF
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Die-cut Label
  • Continuous Form
  • Fanfold
  • Label
  • Tag
  • Ticket
Media Thickness:
8.70 mil
Maximum Roll Diameter:
6"
Maximum Label Width:
4.50"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7"
Width:
9.6"
Depth:
15.9"
Miscellaneous
Additional Information:
  • Label Taken Sensor
  • Graphics : Supports PCX file format
  • Wand interface for EasySet System
  • Integral Self-Strip Unit with Liner Takeup
  • Display : Back-lit LCD for 2x16 characters and 3 LED indicator lamps
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
