Intermec PF2ID01100000021 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

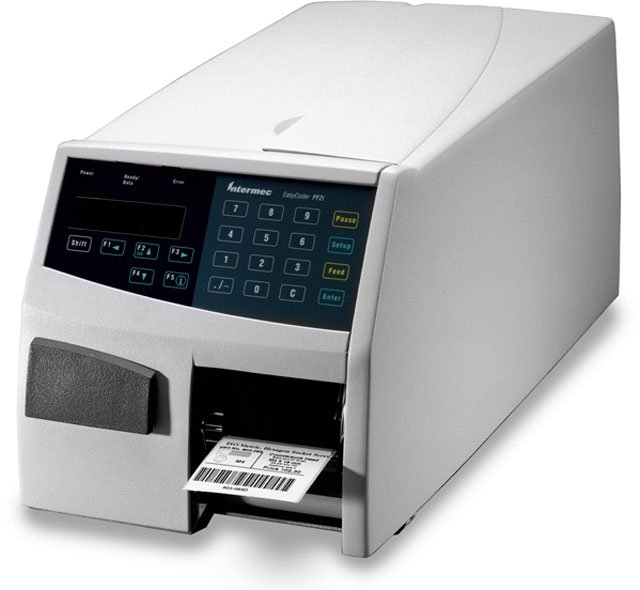

Intermec EasyCoder PF2i - Short Door, Universal Firmware, Self Strip, LTS, Real-time clock, DT 203 dpi
Supports standalone printer applications

The Intermec EasyCoder PF2i printer with 2-inch-width printing is specially designed to provide rigorous barcode label printing in areas where space is limited. Users can enjoy all the features and benefits of larger barcode label printers, including standalone smart printing, without giving up valuable space. The EasyCoder PF2i acts as a "smart client" executing user-defined programs. This means the printer eliminates the PC, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from the network, and retains the ability to change as needed with the application for additional functionality. Using Fingerprint, the EasyCoder PF2i easily adapts to changing host environments and applications. This printer grows with your business and is not restricted by manufacturer printer command languages.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features:
    • Self Strip
    • Real Time Clock
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-A
    • Code 128-C
    • DUN-14/16
    • EAN-8
    • EAN-13
    • EAN 128
    • EAN-128 Subset A
    • EAN-128 Subset C
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Interleaved 2 of 5 A
    • Matrix 25
    • POSTNET
    • Straight 2 of 5
    • Two-character Supplemental Code
    • UCC 128
    • UPC-5 Digits Add-on
    • UPC-A
    • UPC-D1
    • UPC-D2
    • UPC-D3
    • UPC-D4
    • UPC-D5
    • UPC-E
    • Code 16K
    • Code 49
    • Data Matrix
    • Maxi Code
    • MSI PLESSEY
    • PDF-417
    • Plessey
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: PF
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PF2i
  • Product Name: EasyCoder PF2i Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 7"
  • Width: 7.6"
  • Depth: 15.6"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Fanfold
    • Tag
    • Ticket
    • Direct Thermal Label
    • Thermal Transfer Label
  • Media Thickness: 7.50 mil
  • Media Sensor: Label Taken Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.38"

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model EasyCoder PF2i
Max Label Width 2.36
Max Roll Outer Diameter 8, 8.4
Print Resolution 203 dpi
Label Core 1.5 inches, 3 inches
Maximum Print Width 2.20
Interface Options Ethernet, Serial
Print Method Direct Thermal
Included Features Media Hanger
Printer Type Industrial
Print Speed 8
Printer Mobility Not Mobile
