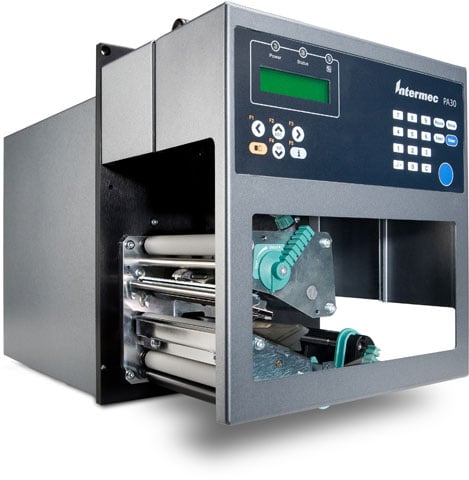

Intermec PA30A21000031112 Print Engine


0.0

(No reviews)

Be the first to

Write a Review
Intermec PA30 - PTR, PA30, US, FP, WRD, 16+4MB, RWN, RTC, TT, 203
High performance print engine for demanding print and apply applications

PA30 Print Engine is a rugged, reliable, metal, high performance applicator print engine designed to increase label placement accuracy and productivity in demanding 24/7 print and apply applications. The PA30 is easily upgradeable to RFID with Intermec's IM4 RFID reader module. The PA30 is fully programmable is not restricted by printer command language. It delivers investment protection by easily adapting to changing host environments and applications

Technical Information

  • Maximum Mono Print Speed: 12 lps
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.30"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • MSI
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • DUN-14/16
    • UPC
    • EAN
    • EAN-8
    • EAN-13
    • UPC-A
    • UPC-E
    • EAN 128
    • EAN-128 Subset A
    • EAN-128 Subset B
    • EAN-128 Subset C
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Matrix 25
    • Planet Code
    • POSTNET
    • Straight 2 of 5
    • UCC 128
    • RSS
    • HIBC Code 39
    • HIBC Code 128
    • JIS-ITF
    • Aztec Code
    • Code 16K
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • EAN.UCC Composite
    • UPC/EAN
    • LOGMARS
    • HIBC
    • ISBT-128

General Information

Physical Characteristics

  • Height: 11.9"
  • Width: 9.6"
  • Depth: 20.5"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.72"
  • Maximum Label Length: 13.42 ft
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Label
    • Fanfold
    • Tag
    • Ticket
  • Media Thickness: 10 mil
  • Ribbon Core Size: 1"

Other

  • Platform Supported: PC
  • Package Contents:
    • PA30 Label Printer
    • US Power Cord
    • PA30 Label Printer
    • US Power Cord

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model PA30
Print Method Direct Thermal, Thermal Transfer
Printer Type Print Engine
Print Resolution 203 dpi
Labels Per Day more than 10,000
Printer Mobility Not Mobile
