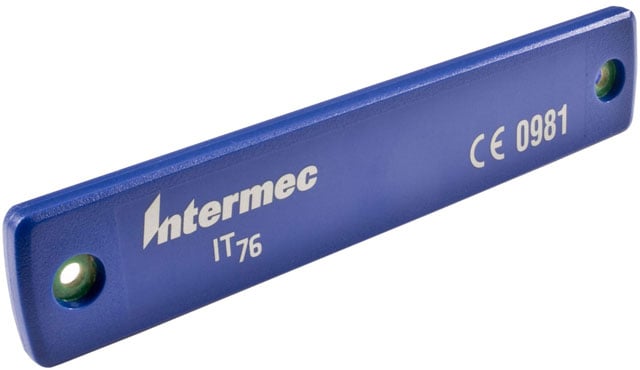

Intermec IT76A0010 RFID Tag


0.0

(No reviews)

Be the first to

Write a Review

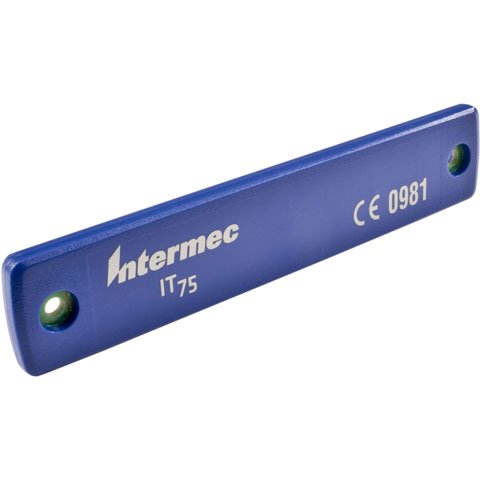

Intermec IT75 Asset Tag - , Metal Mnt, Gen2, FCC, 10
Low Profile, Durable RFID Asset Tag

Intermec's rugged Low Profile Durable Asset Tags have been designed to provide superior performance and high durability on a variety of surfaces at a low cost. Utilizing the latest generation of Gen 2 silicon supporting 512 bits of user memory within a small, durable form factor, Intermec's Durable Asset Tags are suitable for tracking a wide variety of assets. The IT75 (tuned for FCC regions) is optimized specifically for metal surfaces such as metal pallets, ULDs, and other metal assets.

General Information

  • Product Type: RFID Tag
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Name: IT76 Low Profile Durable Asset RFID Tag
  • Packaged Quantity: 10

Physical Characteristics

  • Width: 0.9"
  • Length: 4.4"
  • Thickness: 200 mil

Product Information

  • Shape: Rectangular

Other

  • Additional Information:
    • Operating Frequency: UHF ETSI 865-868 MHz
    • Direct Application Materials: Metal
    • Attachment Methods: Screws/Rivets/25 mil Tape
    • Typical Read Range: 5m
    • Integrated Chip: Impinj Monza 4QT
    • EPC Code Max Size: 128 bit
    • Unique Serial Number Size: 48 bit
    • TID / UID Memory: 64 bit
    • User Memory: 512 bit
    • Min Operating Temp: -40°C
    • Max Operating Temp: +82.2°C
    • Min Storage Temp: -40°C
    • Max Storage Temp: +93.3°C

Full specifications (PDF)



Customer Review Summary

The Intermec IT76A0010 is also known as Intermec Technologies IT76A0010 .
