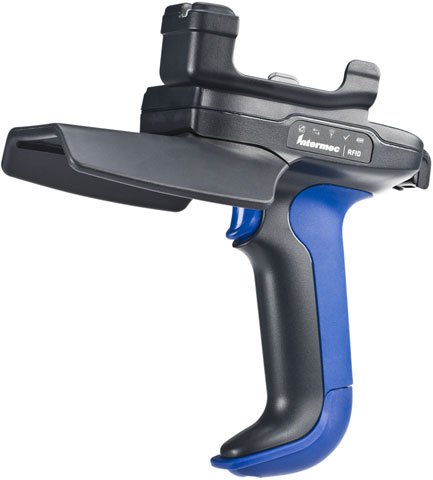

Intermec IP30B0B7014 RFID Reader

Part Number: IP30B0B7014
Model: IP30

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Minimum Frequency
865 MHz
Maximum Frequency
950 MHz
Additional Information
Air Interface Protocols:EPCglobal UHF Gen 2ISO 18000-6bISO 18000-6cCertifications:ETSIFCC Regional StandardsCommunications Interface:BluetoothOperating Temperature:0° C to 50° C (32° F to 122° F)Storage Temperature:-30° to 70° C (-22° to 158° F)Humidity:10 to 95% (non-condensing)Environmental Protection:Enclosure: IP64 compliantShock:30 G, 11 ms, half sine pulse (operating)Drop Survival:Withstands 4 foot drop (1.2m) 26 times to concreteVibration:Quasi Random Vibration 17.5GRMS for 2 hours, each of three axisRFID Frequency Ranges:865, 915, and 950 MHz bands, supporting multiple regional configurations
Compatibility
Compatible Handheld Computers:CN70/70eCK70CK71CN4CN4eCN3CN3eCK3BCK3X

Product Description:

  Intermec IP30 Handheld RFID Reader - 865 MHz to 950 MHz

Honeywell IP30 RFID Reader Model Overview

The Intermec IP30 RFID Handheld Reader add-on passive UHF RFID handle is a cost-effective, compact, EPCglobal-certified solution for adding mobile RFID read/write capability to Intermec's latest generation of mobile computers, including the CN3, CN3e, CK61 and CK61ex. The modularity of the IP30 and the RFID-readiness of the Intermec mobile computers mean the power of RFID can be literally added in a snap today or at any point in the future to support both in-premise and in-field applications such as warehouse operations, enterprise asset management, in-transit-visibility, direct store delivery and exception handling. When combined with Intermec's most powerful mobile computers, the CN3 and CN3e, the Intermec IP30 gives the user unmatched data collection and communication capabilities. Combining integrated RFID and GPS, along with WiFi, Bluetooth and WWAN, into a single hand held computer like the IP30 RFID Handheld Reader enables pin-point location accuracy for realtime asset, source and service tracking.
Intermec IP30B0B7014 RFID Reader Overview
The Intermec IP30 add-on handle for passive UHF RFID is the leader in handheld RFID readers. The modularity of the IP30, when combined with the RFID-readiness of Intermec mobile computers, transforms the mobile computer into a handheld RFID reader in a snap. The IP30 supports both in-premise and in-field applications, such as warehouse operations, enterprise asset management, retail and enterprise inventory management, field service, and exception handling.
Technical Information
Minimum Frequency:
865 MHz
Maximum Frequency:
950 MHz
Miscellaneous
Additional Information:
Air Interface Protocols:
  • EPCglobal UHF Gen 2
  • ISO 18000-6b
  • ISO 18000-6c

Certifications:
  • ETSI
  • FCC Regional Standards

Communications Interface:
  • Bluetooth

Operating Temperature:
  • 0° C to 50° C (32° F to 122° F)

Storage Temperature:
  • -30° to 70° C (-22° to 158° F)

Humidity:
  • 10 to 95% (non-condensing)

Environmental Protection:
  • Enclosure: IP64 compliant

Shock:
  • 30 G, 11 ms, half sine pulse (operating)

Drop Survival:
  • Withstands 4 foot drop (1.2m) 26 times to concrete

Vibration:
  • Quasi Random Vibration 17.5G
  • RMS for 2 hours, each of three axis

RFID Frequency Ranges:
  • 865, 915, and 950 MHz bands, supporting multiple regional configurations
Compatibility:
Compatible Handheld Computers:
  • CN70/70e
  • CK70
  • CK71
  • CN4
  • CN4e
  • CN3
  • CN3e
  • CK3B
  • CK3X
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0778889987131
UPC: 778889987131
EAN: 0778889987131
UNSPSC: 43211710
