Intermec IP30A0B3002 RFID Reader

Part Number: IP30A0B3002
Model: IP30

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Minimum Frequency
865 MHz
Maximum Frequency
915 MHz
Weight (Approximate)
15.17 oz
Additional Information
Air Interface Protocols:EPCglobal UHF Gen 2, ISO 18000-6b, ISO 18000-6cCertifications:FCC, ETSICommunications Interface:Bluetooth and USB configurationsOperating Temperature:-15° C to 50° C (5° F to 122° F)Storage Temperature:-30° to 70° C (-22° to 158° F)Humidity:10 to 95% (non-condensing)Environmental Protection:IP64 compliantShock:30 G, 11 ms, half sine pulse (operating)Drop Survival:Withstands 4 foot drop (1.2m) 26 times to concreteVibration:Quasi Random Vibration 17.5GRMS for 2 hours, each of three axisFrequency Range:865 and 915 MHzPower:Removable Lithium-ion battery pack

Product Description:

  IP30A, BT,CN3/CN3E,865MHz 4CH,ETSI, RoHS

Honeywell IP30 RFID Reader Model Overview

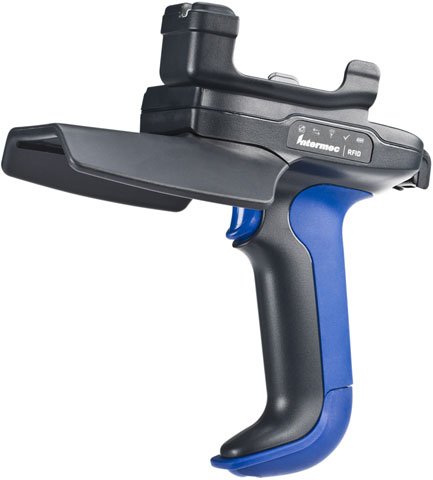

The Intermec IP30 RFID Handheld Reader add-on passive UHF RFID handle is a cost-effective, compact, EPCglobal-certified solution for adding mobile RFID read/write capability to Intermec's latest generation of mobile computers, including the CN3, CN3e, CK61 and CK61ex. The modularity of the IP30 and the RFID-readiness of the Intermec mobile computers mean the power of RFID can be literally added in a snap today or at any point in the future to support both in-premise and in-field applications such as warehouse operations, enterprise asset management, in-transit-visibility, direct store delivery and exception handling. When combined with Intermec's most powerful mobile computers, the CN3 and CN3e, the Intermec IP30 gives the user unmatched data collection and communication capabilities. Combining integrated RFID and GPS, along with WiFi, Bluetooth and WWAN, into a single hand held computer like the IP30 RFID Handheld Reader enables pin-point location accuracy for realtime asset, source and service tracking.
Intermec IP30A0B3002 RFID Reader Overview

The Intermec IP30 add-on passive UHF RFID handle is the new leader in handheld RFID readers. The modularity of the IP30 and the RFID-readiness of Intermec mobile computers mean the power of RFID can be literally added in a snap today or at any point in the future. The IP30 supports both in-premise and in-field applications such as warehouse operations, enterprise asset management, in-transit-visibility, direct store delivery and exceptions handling.

Technical Information
Minimum Frequency:
865 MHz
Maximum Frequency:
915 MHz
Physical Characteristics
Weight (Approximate):
15.17 oz
Miscellaneous
Additional Information:

Air Interface Protocols:

  • EPCglobal UHF Gen 2, ISO 18000-6b, ISO 18000-6c

Certifications:

  • FCC, ETSI

Communications Interface:

  • Bluetooth and USB configurations

Operating Temperature:

  • -15° C to 50° C (5° F to 122° F)

Storage Temperature:

  • -30° to 70° C (-22° to 158° F)

Humidity:

  • 10 to 95% (non-condensing)

Environmental Protection:

  • IP64 compliant

Shock:

  • 30 G, 11 ms, half sine pulse (operating)

Drop Survival:

  • Withstands 4 foot drop (1.2m) 26 times to concrete

Vibration:

  • Quasi Random Vibration 17.5G
  • RMS for 2 hours, each of three axis

Frequency Range:

  • 865 and 915 MHz

Power:

  • Removable Lithium-ion battery pack
Compatibility:
  • CN3 Mobile Computer
  • CN3e Mobile Computer
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211710
