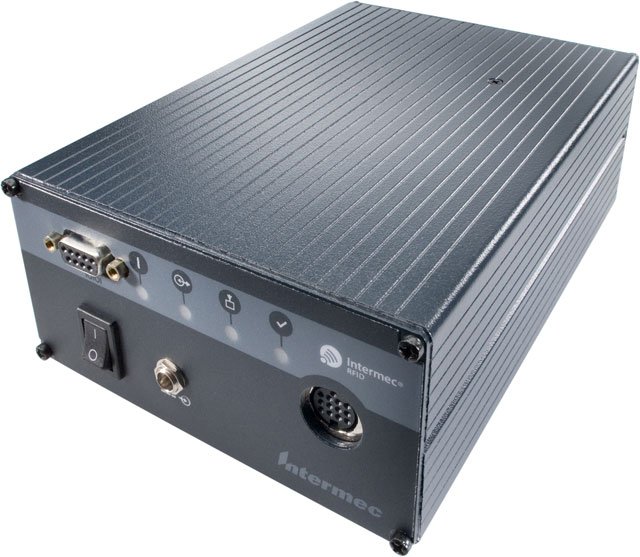

Intermec IF4C002002 RFID Reader

Part Number: IF4C002002

Model: IF4

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Height

2.6"

Width

5.3"

Depth

7.5"

Additional Information

RFID Frequency: 865 MHzAir Interface Protocols: EPCglobal UHF Gen 2, ISO 18000-6b

Product Description:

IF4 RFID Reader (IF4C, BRI, 1W 865 4CH, ETSI)

Explore all Intermec IF4 RFID Readers

Add to Quote

Overview

Full specifications (PDF)

Intermec IF4 RFID Reader Model Overview

The IF4 is a simple reader or "peripheral device", with best in class dense reader mode performance, specifically designed with a RS232 port for a cost effective solution for implementing RFID by attaching the reader to a programmable logic controller (PLC). When identifying relatively small numbers of items at a time, such as boxes traveling on multiple conveyor belts, cost savings can be achieved by deploying a single IF4 reader with four antennas instead of installing four separate readers with one antenna each. The Intermec IF4 serial reader is the ideal RFID peripheral for applications where an edge server or Programmable Logic Controller (PLC) is used for process control. The IF4 reduces the communications burden on the network and processing demand on the host PLC. While reading and writing RFID labels and tags, the IF4 uses an air-interface protocol for filtering out unneeded tag data caused by multiple reads and tags not required for the application.

Intermec IF4C002002 RFID Reader Overview

The Intermec IF4 serial reader is the ideal RFID peripheral for applications where an edge server or Programmable Logic Controller (PLC) is used for process control. The IF4 reduces the communications burden on the network and processing demand on the host PLC.

Detailed Specs

Full specifications (PDF)

Physical Characteristics

Height:

2.6"

Width:

5.3"

Depth:

7.5"

Miscellaneous

Additional Information:
