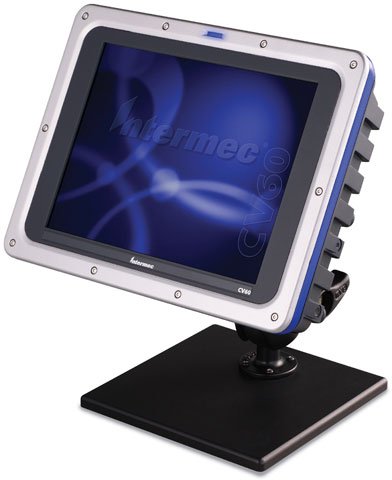

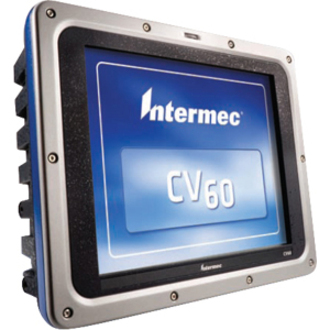

Intermec CV60C13AA4001803 Data Terminal
Part Number:
CV60C13AA4001803
Model:
CV60
Intermec CV60 Data Terminal Model Overview
The Intermec CV60 excels in the toughest environments including warehouses and assembly lines. Wireless connectivity allows users to roam freely throughout a facility and always be connected. The CV60 also incorporates Intermec's wireless base station, giving support to any of Intermec's wireless scanners. A 12" touch screen is easy to use even with gloves on, and supports the Microsoft .NET Compact Framework and other programming tools.
Intermec CV60C13AA4001803 Data Terminal Overview
The CV60 Vehicle Moun Terminal offers choices of either wired or wireless accessories. By integrating Bluetooth technology in the CV60, the user has fewer accessories to install, cables to contend with and tethered wires to get in the way.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Pentium III
Processor Speed:
800 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
512 KB
Storage
Hard Drive Capacity:
40 GB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
SVGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
800 x 600
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Interfaces/Ports
Serial:
Yes
USB:
Yes
PS/2 Port:
Yes
Software
Operating System:
Windows XP Professional Edition
Physical Characteristics
Height:
10.7"
Width:
13.4"
Length:
3.7"
Weight (Approximate):
11.02 lb
Miscellaneous
Certifications & Standards:
Sealed to IP65
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Cables, Connectors, and Adapters (2)
- Computer Accessories (1)
- Computer Components (1)
- General Software (1)
- Keyboards and Front Panels (4)
- Mobile Computer Accessories (3)
- Mounting Hardware and Stands (1)
- Power Device (1)
- Scanner Accessories (2)
- Signature Capture Pad Accessories (1)
- Spare Parts (4)
- Terminal Accessories (9)
Recommended Accessories for Model: Intermec CV60C13AA4001803 Data Terminal
Top Cables, Connectors, and Adapters Purchased With Intermec CV60C13AA4001803
-
Honeywell 236-185-001 Cables, Connectors, and AdaptersCable, RS-232, 6.5 Feet, 9 Pin Coil, Requires External Power Supply (RS232 Serial Connection to Terminals Providing Non-Powered 9 Pin D Sub-Connector) - Ordered Separately.$97.69 -
Intermec VE012-8015-A1 Cables, Connectors, and AdaptersCBL 3P(M) - 5P(F) for AC-DC to Sys, RoHSPlease Call for Pricing or to Purchase
Top Computer Accessories Purchased With Intermec CV60C13AA4001803
-
Intermec 850-551-109 Signature PadKeyboard (Rugged, Qwerty, 5250, Back Lit and ROHS)$889.50
Top Computer Components Purchased With Intermec CV60C13AA4001803
-
Honeywell 203-806-001 AccessoryMemory Upgrade Kit (256MB SDRAM, RoHS - Additional Memory 256MB)$336.58
Top General Software Purchased With Intermec CV60C13AA4001803
-
Honeywell 235-140-001 SoftwareKit (60 WindowsXP, REC CD, Windows XP PRO) for the CV60$98.72
Top Keyboards and Front Panels Purchased With Intermec CV60C13AA4001803
-
Honeywell 850-551-106 AccessoryKeyboard for the CV60; Rugged, QWERTY, Windows, Backlit and RoHS$906.32 -
Honeywell 340-053-003 AccessoryKeyboard, 101 Key, Backlit, SLK-101 WIN, RoHS, COMP G9A-KB001$927.72 -
Honeywell 850-551-107 AccessoryKeyboard (Rugged, QWERTY, VT220, Back Lit and ROHS)$896.30
Top Mobile Computer Accessories Purchased With Intermec CV60C13AA4001803
-
Intermec VE012-8015-A1 Cables, Connectors, and AdaptersCBL 3P(M) - 5P(F) for AC-DC to Sys, RoHSPlease Call for Pricing or to Purchase
-
Intermec TM-CCV60-1 Spare PartsCV60 protective case with let and right handed stylus pockets and back flap to expose cooling fins. Velcro flaps for all ports/USB/antennae.Please Call for Pricing or to Purchase -
Intermec 237-205-001 Spare PartsKit (PGM, 60XP_ML 40GB RHD with License, RoHS)Please Call for Pricing or to Purchase
Top Mounting Hardware and Stands Purchased With Intermec CV60C13AA4001803
-
Honeywell G9A-KB001-02 Mounting Hardware and StandsCV60 - Keybd Mounting Kit$210.04
Top Power Device Purchased With Intermec CV60C13AA4001803
-
Honeywell 203-779-001 Power DeviceKit, DC/DC, Power Supply, RoHS, 6-60V Powered Trucks, HTR / NO HTRIn Stock$420.02
Top Scanner Accessories Purchased With Intermec CV60C13AA4001803
-
Intermec VE012-8014-A1 AccessoryCable PSU Converter 2455 DC/DC To Connect To CV30Please Call for Pricing or to Purchase
-
Intermec 203-783-001 AccessoryVehicle Mounting Kit; Stubby, RoHSPlease Call for Pricing or to Purchase
Top Signature Capture Pad Accessories Purchased With Intermec CV60C13AA4001803
-
Intermec 850-551-109 Signature PadKeyboard (Rugged, Qwerty, 5250, Back Lit and ROHS)$889.50
Top Spare Parts Purchased With Intermec CV60C13AA4001803
-
Honeywell 203-788-002 Spare PartsKit (CV60-Smart-UPS with 3 Foot Cable, ROHS)$24.29 -
Intermec 237-283-001 Barcode VerifierKit, PGM, 60XP_EN 8GB IDE W/Lic RoHS$2,093.98 -
Intermec TM-CCV60-1 Spare PartsCV60 protective case with let and right handed stylus pockets and back flap to expose cooling fins. Velcro flaps for all ports/USB/antennae.Please Call for Pricing or to Purchase
Top Terminal Accessories Purchased With Intermec CV60C13AA4001803
-
Intermec VE012-8019-A2 AccessoryCable PSU Converter CV60 DC/DC 3-PIN/2-Pin To 5-PIinPlease Call for Pricing or to Purchase -
Intermec 321-593-002 AccessorySerial Cable (6 Feet, 9C DE-9M to DE-9 9M to DE-9F, RoHS)Please Call for Pricing or to Purchase
-
Intermec 235-196-001 AccessoryKit (WINXP, V2.00, CV60 Rec CD WINXP Pro) for the CV60A or CV60CPlease Call for Pricing or to Purchase
