Full specifications (PDF)
Connectivity Technology:
Wireless
Intermec CV60A11A84001804 Data Terminal
Part Number:
CV60A11A84001804
Model:
CV60

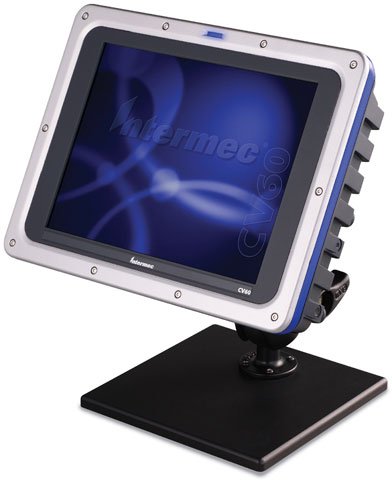

Intermec CV60 Data Terminal Model Overview
The Intermec CV60 excels in the toughest environments including warehouses and assembly lines. Wireless connectivity allows users to roam freely throughout a facility and always be connected. The CV60 also incorporates Intermec's wireless base station, giving support to any of Intermec's wireless scanners. A 12" touch screen is easy to use even with gloves on, and supports the Microsoft .NET Compact Framework and other programming tools.
Intermec CV60A11A84001804 Data Terminal Overview
Continuing Intermec's legacy reputation of developing reliable terminals, the CV60A vehicle mount terminal excels in the most adverse environments with full PC functionality. The CV60A terminal, either fixed or vehicle mounted, puts wireless supply chain management right where the data is at the dock, on the warehouse floor, in the trailer or in the yard for the toughest material handling applications.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Pentium III
Processor Speed:
800 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
512 KB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
SVGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Interfaces/Ports
Serial:
Yes
USB:
Yes
Microphone:
Yes
PS/2 Port:
Yes
Software
Operating System:
Windows
Physical Characteristics
Height:
10.7"
Width:
13.4"
Length:
3.7"
Weight (Approximate):
11.02 lb
Miscellaneous
Package Contents:
- CV60A Vehicle Mount Terminal
- Quick Start Guide
Additional Information:
Storage Option: 20GB Rotary Drive
Radio Countries:
- Canada
- New Zealand
- Hong Kong
- United States
Certifications & Standards:
- FCC Part 15
- CE
Warranty
Limited Warranty:
1 Year
