Full specifications (PDF)
Connectivity Technology:
Wireless
Intermec CV30A0E1000804 Data Terminal
Part Number:
CV30A0E1000804
Model:
CV30

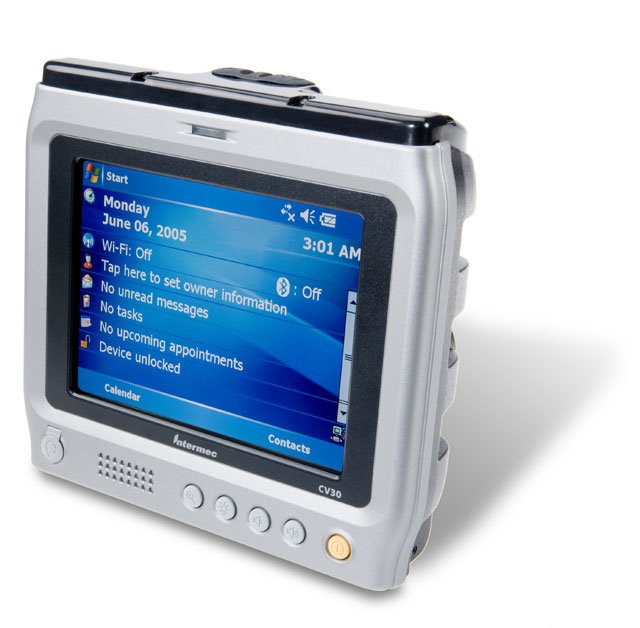

Intermec CV30 Data Terminal Model Overview
The Intermec CV30 rugged fixed mount computer provides flexibility and high-performance capabilities in a compact design that delivers real-time wireless supply chain management right where the data is - at the dock, in the freezer, on the warehouse floor, or in the yard. Incorporating the CV30 into your warehousing or manufacturing operation will enhance efficiency, increase safety and improve operator performance and productivity. The CV30 is engineered to withstand the abuse of industrial environments and to satisfy user demands that vehicle mount computers be as durable as forklifts. Its cast magnesium housing, standard heated display and solid state design provides protection exceeding industrial and military standards. The CV30 thrives in harsh environments where dust, moisture or extreme temperatures are constants.
Intermec CV30A0E1000804 Data Terminal Overview
The CV30A rugged fixed mount computer provides flexibility and high-performance capabilities in a compact design that delivers real-time wireless supply chain management right where the data is at the dock, in the freezer, on the warehouse floor, or in the yard. Incorporating the CV30A into your warehousing or manufacturing operation will enhance efficiency, increase safety and improve operator performance and productivity.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Speed:
520 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Display & Graphics
Screen Size:
6.4"
Graphics Modes:
VGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
640 x 480
Network & Communication
Antenna Form Factor:
Internal
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Software
Operating System:
Windows
Physical Characteristics
Height:
7"
Width:
2.2"
Length:
7.5"
Weight (Approximate):
3.25 lb
Miscellaneous
Package Contents:
- CV30A Vehicle Mount Terminal
- Quick Start Guide
Additional Information:
Radio Countries:
- Canada
- Mexico
- New Zealand
- United States
Certifications & Standards:
Safety:
- cULus Listed
- OSHA 29 CFR 1910.178 / ASME B56.11.6 Compliant
- GS
- CCC
- GOST
- NOM
- eK
- HKSI
- SABS
- SPRING
- prEN ISO 13564 EMC
- FCC Part 15 Class B
- ICES-003 Class B
- EN 55022 Class B
- EN 55024
- EN 301 489-17
- AS/ZNS 3548
- GB9254-1998
Radio:
- FCC Part 15.247
- Industry Canada RSS 210
- EN 300 328-2
- Telecom. Num. 547
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0735548755906
UPC:
735548755906
EAN:
0735548755906
UNSPSC:
43211505
