You've just added this product to the cart:

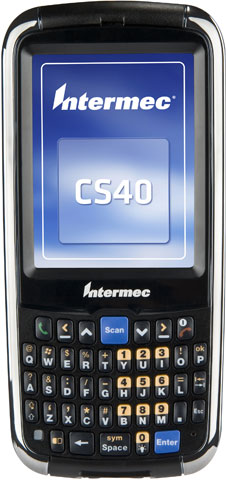

Intermec CS40ANU1LP000 Mobile Handheld Computer

Intermec CS40 - 2D Imager, Numeric keypad, Windows Mobile 6.5, Standard Battery, UMTS

Full specifications (PDF)

Integrated 2D imager and 3.2 megapixel color camera
The Intermec CS40 is a high-performance enterprise communication handheld computer in a sleek, lightweight ruggedized design. It is optimized for pre-sales, merchandising, residential and business field service, long haul and truck load transportation professionals. The CS40 features integrated 2D imager scans 1D/2D barcodes consistently delivering speed and accuracy, a 3.2MP color camera for visual verification with the home office. The CS40 is built to withstand real-world handling with multiple 1.2-meter drops to concrete and IP54 sealing against rain and dust. With 4 Radios, including 3.75G wireless WAN, 802.11b/g CCX v4, Bluetooth Class II version 2.1+EDR, and GPS technology, the Intermec CS40 provides quality voice communication, high-speed data, and location information to improve worker productivity.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • Code 39
    • UPC/EAN
    • Data Matrix
    • PDF417

General Information

Physical Characteristics

  • Height: 13.3"
  • Width: 6.3"
  • Depth: 2.4"
  • Weight (Approximate): 6.90 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology:
    • UMTS
    • HSUPA
  • Wireless Security:
    • WPA/WPA2
    • PEAP/MS-CHAP v2
    • EAP-TLS
    • CCX v4

Other

  • Package Contents:
    • CS40 Handheld Terminal
    • Battery
    • CS40 Handheld Terminal
    • Battery

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 1430 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: ARM
  • Processor Speed: 528 MHz

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Type: Numeric
Protect Your Product
Intermec Service Contract - 3 year (MEDC3-SRP-3-S)
CS40, Overnight Replacement Depot Select
Temporarily out of stock; available to order
$266.69
+ Add to Quote
Intermec Service Contract - 1 year (MEDC3-SRP-1)
CS40, Overnight Replacement Depot Standard
Temporarily out of stock; available to order
$128.59
+ Add to Quote
Intermec Service Contract - 1 year (MEDC3-SLV-1)
CS40, 2-Day Depot Standard
Temporarily out of stock; available to order
$110.47
+ Add to Quote
Intermec Service Contract - 3 year (MEDC3-BRZ-3-S)
Medallion Complete Bronze - 3 Year Extended Service - Service - 5 Business Day - Carry-in - Maintenance - Parts & Labor - Physical Service
Temporarily out of stock; available to order
$183.83
+ Add to Quote
Intermec Service Contract - 1 year (MEDC3-BRZ-1)
CS40, 5-Day Depot Standard
Temporarily out of stock; available to order
$91.48
+ Add to Quote

Full specifications (PDF)

Brand Intermec
Model CS40
Style Phone-size

Recommended Accessories for Model: Intermec CS40 Mobile Handheld Computer

Category

  • Carrying and Protective Accessories (3)
  • Cables, Connectors, and Adapters (1)
  • Docks & Cradles (2)
  • Accessories (2)
  • Batteries (3)
Recommended Accessories for Model: Intermec CS40 Mobile Handheld Computer

Carrying and Protective Accessories

Intermec (815-069-001)
Holster (with Belt Clip) for the CS40 S Series
In Stock: Ships Same Day
$31.70
+ Add to Quote
Intermec (815-071-001)
Purse (with Shoulder Strap) for the CS40
In Stock: Ships Same Day
$54.30
+ Add to Quote
Intermec (805-675-001)
Non-Powered Vehicle Holder (for the CS40)

Cables, Connectors, and Adapters

Intermec (321-674-001)
Power/Data Y-cable for the CS40
Ships in 3-5 Days
$23.00
+ Add to Quote

Docks & Cradles

Intermec (852-072-001)
Vehicle Power Adapter (R) for the CS40
Ships in 3-5 Days
$54.30
+ Add to Quote
Intermec CS40 Mobile Computer Accessories (871-036-001)
USB Cradle for the Model CS40
Ships in 3-5 Days
$64.90
+ Add to Quote

Accessories

Intermec (318-045-001)
318-045-001 Handheld Device Battery - For Handheld Device
Intermec (203-936-001)
Universal Cell Phone Charger Kit (for the CS40)
Ships in 3-5 Days
$49.30
+ Add to Quote

Batteries

Intermec (318-053-001)
Extended Battery Pack - For Handheld Device - Battery Rechargeable - 2860 mAh
Intermec (318-053-011)
Battery - For Handheld Device
Ships in 3-5 Days
$96.20
+ Add to Quote

The Intermec CS40ANU1LP000 is also known as Intermec Technologies INT-CS40A01 .
