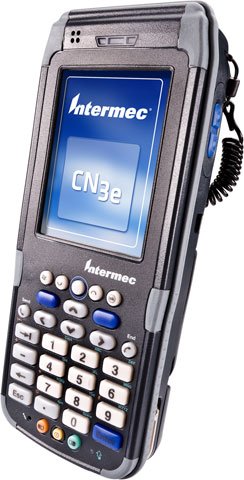

Intermec CN3E5H841C6E300 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Intermec CN3e - Phone Style Numeric (123) AreaImg/SH (EA11) WLAN FCC [84] GPSCDMA VZN [C6] Windows Mobile 5.0 WWE CDMA
Enlarged keys and extensive communication options fit the needs of the in-field mobile worker

CN3e is a mid-sized mobile computer that features extensive communication options with an enlarged keypad to support key based data intensive in-field applications. In fact the rugged CN3e is the first mid-sized handheld to offer a fully integrated, independent GPS option, as well as Wi-Fi, WWAN and Bluetooth in a single package, with an extended accessories line to support numerous application requirements.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 72"
  • Barcode Symbology Supported:
    • 1D
    • 2D
    • Composite and Postal Decode

General Information

  • Product Type: Handheld Terminal
  • Product Series: CN3
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: CN3e
  • Product Name: CN3e Handheld Terminal

Physical Characteristics

  • Height: 7.7"
  • Width: 3.2"
  • Depth: 1.3"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • CN3e Handheld Terminal
    • Li-Ion Battery
    • CN3e Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • Safety:
    • cULus Listed
    • GS
    • CCC
    • GOST
    • NOM
    • HKSI
    • EMC:
    • FCC Part 15B - Class B
    • ICES-003 Class B
    • EN 55022 Class B
    • EN 55024
    • EN 301 489-17
    • AS/ZNS 3548
    • GB9254-1998
    • BSMI
    • ICASA
    • Radio:
    • FCC Part 15.247
    • Industry Canada RSS 210
    • EN 300 328-2
    • Telecom. Num. 547
    • NCC
    • OFTA
    • MIC
    • IDA

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: CDMA
  • Wireless LAN Standard: IEEE 802.11b/g
  • Wireless Security:
    • WEP
    • WPA
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: miniSD Card

Battery Information

  • Battery Capacity: 4000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 5.0

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model CN3e
Style Phone-size
Data Collection Type Wireless
