Barcodes,Inc.

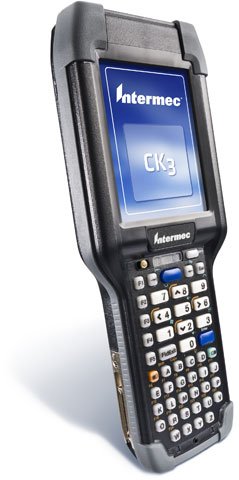

Intermec CK3B10M00E100 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Intermec CK3 - USB interface, Wi-Fi (802.11a/b/g), 2D Imager, Windows Mobile 6.1, Numeric Keypad, Bluetooth. Interface and power cables sold separately.
Highly adaptable to meet ever-changing data capture and communication needs

The Intermec CK3 handheld mobile computer combines best-of-class platform components including the latest Microsoft embedded operating system, Windows Mobile 6.1, along with multi-modal data input options including image capture, revolutionary imager-based scanning, RFID, speech and voice to support a variety of in-premise applications and tasks. The highly flexible functionality of the CK3 enables businesses to improve their operational performance metrics without deploying multiple, dedicated-purpose devices, allowing them to simplify IT support and control operating costs.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Contact Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 59.06" To Concrete
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • Interleaved 2 of 5
    • Code 93
    • Codabar
    • Code 2 of 5
    • MSI
    • Plessey
    • Code 11
    • Matrix 2 of 5
    • Telepen
    • PDF417
    • Micro PDF417
    • Maxicode
    • Datamatrix
    • QR Code
    • RSS 14
    • RSS Limited
    • RSS Expanded
    • Codablock A
    • Codablock F
    • UCC Composite
    • Postnet
    • Planet
    • Australia Post
    • BPO (British Post 4-state)
    • Dutch Post
    • Japan Post
    • Sweden Post
    • Canada Post
    • China Post (Matrix 2 of 5)
    • Aztec
    • TLC39
    • Infomail
    • User Defined Multi-Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: CK3B10M00E100
  • Product Name: CK3 Mobile Computer

Physical Characteristics

  • Height: 1.4"
  • Width: 3.3"
  • Length: 8.5"
  • Weight (Approximate): 16 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WEP
    • WPA
    • 802.1x
    • 802.11i

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Battery Information

  • Battery Capacity: 2000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.1 Classic

Keyboard/Keypad

  • Keyboard Type: Numeric

I/O Expansions

  • Expansion Slot Type: Micro SDIO

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model CK3
Processor 520 MHz Intel PXA270
Style Full-size
RAM Memory 128MB
Network Connectivity 802.11 b/g, Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Display Resolution 240 x 320
Operating Temperature 14 F - 122 F
IP Rating IP54
Operating System Windows Mobile 6.1
Keypad 51
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 5 ft.1.5 m
