Intermec EasyCoder 4420 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 4420E01400200
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, 8 ips, 4.5" print width, parallel, serial & ethernet interfaces, 1MB DRAM, 128KB. Includes US power cord. Order cables separately. See accessories.

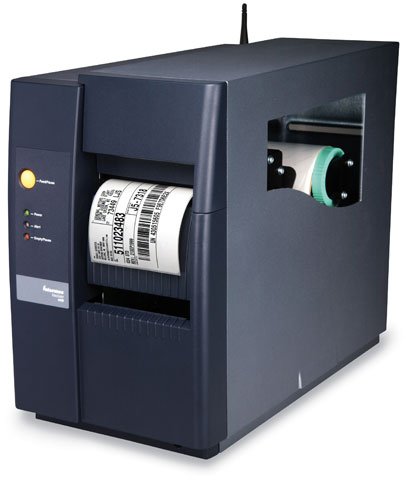

Intermec EasyCoder 4420 Barcode Label Printer Model Overview

The EasyCoder 4420 is a high capacity industrial strength printer based on the field proven 34XX series. The new industrial metallic gray color fits into a wide variety of application settings. The EasyCoder 4420 features a ten inch per second print speed. The design allows for a full 8" diameter roll of media and 450 m (18,000") ribbon to maximize operator productivity. When equipped with the optional internal self-strip and full roll batch take-up the EasyCoder 4420 can print and rewind a full 8" diameter media roll. All units ship with product documentation. Includes Intermec LabelShop START barcode label design software.
Intermec 4420E01400200 Barcode Label Printer Overview

The EasyCoder 4420 is a high capacity industrial strength printer with extremely fast throughput. Labels start printing immediately upon selecting the print button at speeds up to 10 inches per second. The design allows for a full 8" diameter roll of media and 450 m (18,000") ribbon to maximize operator productivity. When equipped with the optional internal self-strip and full roll batch take-up the 4420 can print and rewind a full 8" diameter roll of media.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.40"
Barcode Symbology Supported:
  • Code 2 of 5
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • HIBC
  • Interleaved 2 of 5
  • POSTNET
  • UPC/EAN
  • JIS-ITF
  • Code One
  • Code 16K
  • Code 49
  • Data Matrix
  • PDF-417
  • QR Code
  • Micro PDF
  • Maxi Code
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
1 MB
Flash Memory:
128 KB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Fanfold
  • Tag
  • Ticket
  • Plain Paper
  • Thermal Paper
  • Label
  • Continuous Form
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Software
Software Included:
  • InterDriver Windows printer driver
  • Intermec LabelShop START label design and print package
  • Intermec Printer Network Manager (IPNM) for administration of network connected printers
  • PrintSet for printer configuration
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Color Family:
Gray
Product Color:
Dark Gray
Miscellaneous
Additional Information:

Standards Supported:

  • GM1724
  • ISBT 128
  • POSTNET
  • LOGMARS
  • MH10.8 Shipping Label
  • AIAG (shipping parts label)
  • UCC/EAN 128 Serial Shipping Container
Platform Supported:
PC
Certifications & Standards:
  • CE
  • NOM
  • C-TIC
  • TÜV GS
  • UL-US & Canada
  • CISPR 22 Class A
  • ICES-003 Class A
  • FCC Part 15 Class A
Item Numbers
GTIN: 0000004186489
UPC: 000004186489
EAN: 0000004186489
UNSPSC: 43212108
