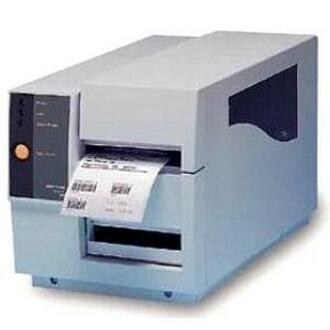

Intermec EasyCoder 3400 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: 3400D0010000
Model: EasyCoder 3400
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer Printing, 203 DPI, 4" Print Width, Serial Interface. Interface/power cables sold separately.
Explore all Intermec EasyCoder 3400 Barcode Label Printers
Add to Quote
Intermec 3400D0010000 Barcode Label Printer
Intermec 3400D0010000 Barcode Label Printer
Intermec 3400D0010000 Barcode Label Printer Intermec 3400D0010000 Barcode Label Printer
Full specifications (PDF)

Intermec EasyCoder 3400 Barcode Label Printer Model Overview

Depend on the EasyCoder 3400 for reliable performance printing labels sized up to 11.43 cm (4.5 in.) wide and any length. Print speed has been increased to 6 inches per second and RS-232 speed has been doubled. The 203 dpi resolution of the EasyCoder 3400 is suitable for most label printing quality needs. Includes Intermec LabelShop START barcode label design software.
Intermec 3400D0010000 Barcode Label Printer Overview

The Intermec 3400D is our best selling printer and for good reason. Its rugged design, economical price, well-known reliability, and application flexibility make it a smart choice for today's dynamic warehouse, distribution and manufacturing environments.

Intermec's popular EasyCoder 3400D is a medium duty bar code label printer featuring 4" print widths, unlimited print length, and 203 dpi print resolution. The 3400D printer is a popular choice of Intermec customers. The reliability, economical cost, and print features of the EasyCoder 3400D printer are vital to the success of many manufacturing and distribution center businesses.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 2 of 5
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • HIBC
  • Interleaved 2 of 5
  • POSTNET
  • UPC
  • JIS-ITF
  • Code One
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • UCC
  • EAN 128
  • LOGMARS
  • ISBT-128
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
128 KB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Form
  • Fanfold
  • Tag
  • Ticket
Media Size:
8.38" x Roll Paper
Media Thickness:
3.15 mil
Maximum Label Length:
0.51"
Fonts & Emulation
Language Emulation:
IPL
Software
Software Included:

Software On CD-ROM:

  • InterDriver Windows printer driver
  • Intermec LabelShop START label design and print package
  • Intermec Printer Network Manager (IPNM) for administration of network connected printers
  • PrintSet for printer configuration
Power Description
Input Voltage:
110 V AC
Frequency:
60 Hz
Miscellaneous
Additional Information:
  • Selectable Print Speed: 51mm (2 ips) to 204 mm (8 ips)
  • Media Thickness: 0.08 mm to 0.31 mm (0.003 in to 0.012 in)
  • Maximum Liner Width: 114 mm (4.5 in)
  • Minimum Liner Width: 19 mm (.75 in)
  • Maximum Media Length (Fanfold): 432 mm (17 in)
  • Core Size: 76 mm (3 in)
  • Supports user-defined fonts and graphics

  • Options:
  • Auto-peel
  • Storage expansion to 8 MB Flash
  • Bitmap and outline Kanji/Katakana
  • RF Gateway (2.4 GHz)
  • Cutter/tray

Ribbon Specifications:

  • Length: 152 m (6,000 in linear)
  • Standard Width:
  • 51 mm (2 in)
  • 77 mm (3.0 in)
  • 104 mm (4.1 in)
  • 114 mm (4.5 in)
  • Type:
  • Wax
  • Wax / Resin
  • Resin
Platform Supported:
PC
Certifications & Standards:

Regulatory Approvals:

  • Complies with all FCC Part 15, Class A
  • CISPR 22 Class A
  • ICES-003 Class A
  • UL-US & Canada
  • TÜV GS
  • CE
  • NOM
  • C-TIC
System Requirements:

PC:

  • Windows 3.x
  • Windows 95
  • Windows 98
  • Windows 2000
  • Windows NT4.0
  • Minimum Hard Drive Space: 5 MB
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0000002983400, 0732387102427, 7426802034082
UPC: 000002983400, 732387102427
EAN: 0000002983400, 0732387102427, 7426802034082
UNSPSC: 43212108
