Intermec ScanPlus 1802 – Barcode Scanner – Cordless – 1D

Part Number: 3-369252-02
Model: ScanPlus 1802
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D

Product Description:

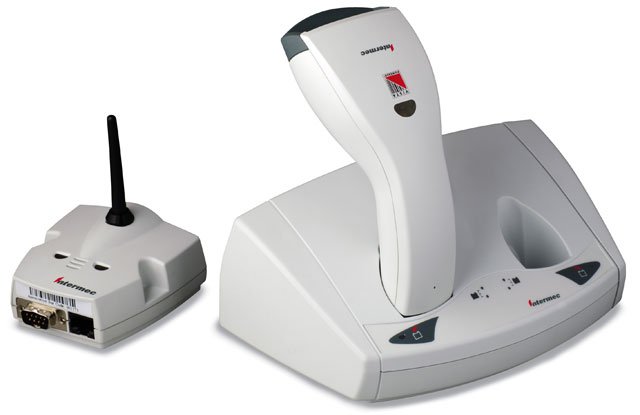

  RS-232 serial kit. Kit includes cordless Vista CCD scanner, base station, RS-232 base to host cable, charging station & power supply. PDF417 capable.
Explore all Intermec ScanPlus 1802 Barcode Scanners
Add to Quote
Intermec 3-369252-02 Barcode Scanner
Intermec 3-369252-02 Barcode Scanner
Intermec 3-369252-02 Barcode Scanner
Intermec 3-369252-02 Barcode Scanner Intermec 3-369252-02 Barcode Scanner Intermec 3-369252-02 Barcode Scanner
Full specifications (PDF)

Intermec ScanPlus 1802 Barcode Scanner Model Overview

ScanPlus 1802 Cordless Handheld Scanner - Wireless connectivity from scanner to base station - up to 50 feet. Up to five scanners can connect to a single 9735 base station. Ideal for retail, healthcare and light industrial environments.
Intermec 3-369252-02 Barcode Scanner Overview

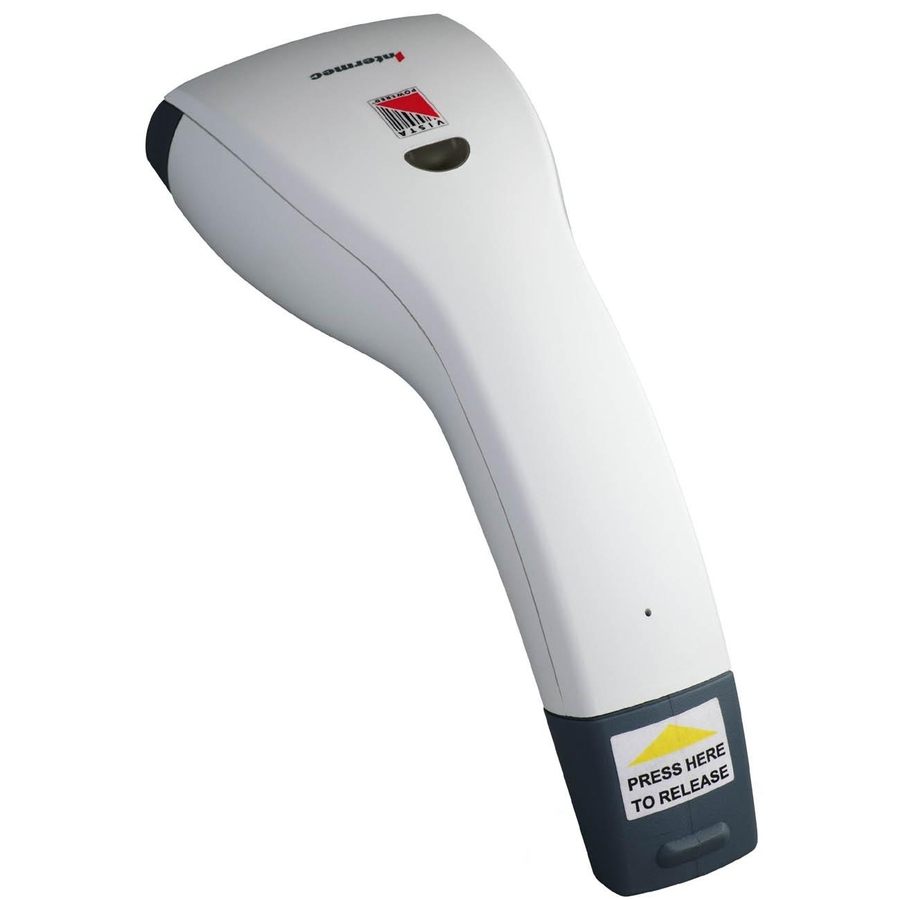

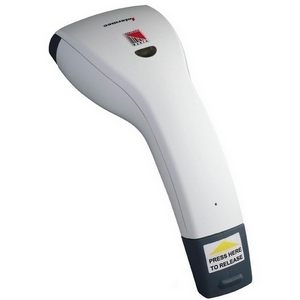

ScanPlus 1802 Vista handheld Bar Code Reader brings cordless technology to the healthcare, retail, office and light

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN
  • Code 39
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 128
  • UCC/EAN 128
  • Codabar
  • Code 93
  • Code CIP 39
  • ISBN
  • MSI
  • Plessey
  • Telepen
  • PDF 417
  • Codablock F
  • Codablock A
Light Source:
LED
Scan Rate:
270 scan/s
Maximum Scan Resolution:
2 mil
Depth of Field:
  • 3.3"@2mil - Code 39
  • 4.3"@3mil - Code 39
  • 4.9"@5mil
  • 5.6"@7.5mil
  • 6.2"@10mil
  • 7.5"@15mil
  • 8.7"@20mil
  • 13"@40mil
  • 7.1"@100% UPC/EAN
Scan Pattern:
Bi-directional
Scanning Distance:
49.21 ft
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Source:
Battery
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
8.18 oz
Miscellaneous
Package Contents:
  • ScanPlus 1802 Vista Bar Code Reader
  • Battery
  • 9735 Base Station
  • 9735 Power Supply
  • Cable
  • Charging Station
  • Power Supply for Charging Station
  • Started Guide
  • EasySet CD ROM
Additional Information:

Supported Interface:

RS232

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

900 MHz:

  • UL listed
  • cUL listed
  • UL1950

433 MHz:

  • TUV-Rheinland GS licensed
  • EN60950
  • CE marked

Radio approvals:

  • US version: FCC Part15.249
  • European version: EN 300 220
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
