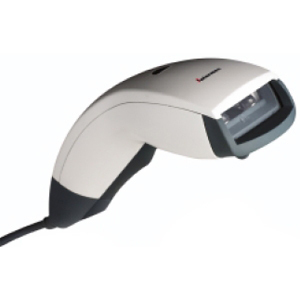

Intermec ScanPlus 1800 – Barcode Scanner – 1D

Part Number: 3-366058-02
Model: ScanPlus 1800
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Laser

Product Description:

  kit. Kit includes laser scanner, USB cable and desktop stand/holder.
Explore all Intermec ScanPlus 1800 Barcode Scanners
Add to Quote
Intermec 3-366058-02 Barcode Scanner
Intermec 3-366058-02 Barcode Scanner
Intermec 3-366058-02 Barcode Scanner
Intermec 3-366058-02 Barcode Scanner Intermec 3-366058-02 Barcode Scanner Intermec 3-366058-02 Barcode Scanner
Full specifications (PDF)

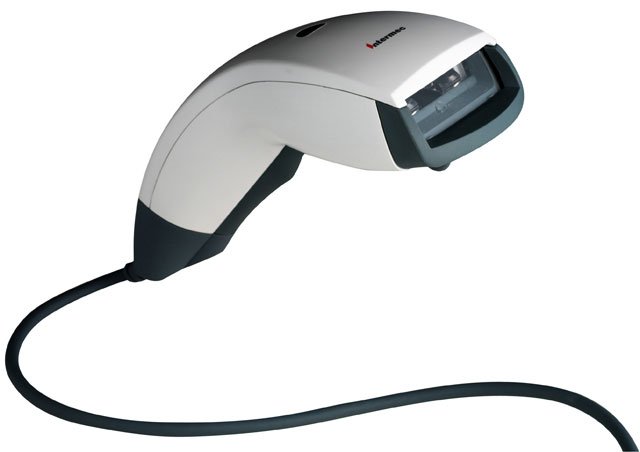

Intermec ScanPlus 1800 Barcode Scanner Model Overview

Compatible for contact and non-contact applications, the ScanPlus 1800 provides the flexibility your operation needs by providing a choice of different scan engines. A universal host interface system allows the ScanPlus 1800 to be connected to many hundreds of PC's, cash registers, or other terminals simply by changing the cable and software set-up. Firmware upgrades or special applications are easily implemented using flash memory easily extending your solutions potential. All units ship with product documentation.
Intermec 3-366058-02 Barcode Scanner Overview

The Intermec ScanPlus S1800 ST Bar Code Reader is a cost effective, yet full-featured supply chain solution for retail, office, health-care and light industrial applications. The S1800 ST is a fast and accurate answer for your contact and non-contact scanning needs.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC-E
  • UPC-A
  • EAN
  • Code 39
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 128
  • UCC/EAN 128
  • Codabar
  • Code 93
  • Matrix
  • MSI
  • Plessey
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2cm - 5.8cm@5mil
  • 0cm - 20cm@10mil
  • 0cm - 25cm@100% UPC/EAN
  • 0cm - 30cm@15mil
  • 0cm - 50cm@20mil
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
5.80 oz
Miscellaneous
Package Contents:
  • ScanPlus S1800 ST Bar Code Reader
  • Trigger
  • USB Cable
  • Desk Stand
  • Holder
  • Operator Guide
  • Getting Started Guide
  • CD with EasySet
Additional Information:

Supported Interfaces:

  • Wand Emulation
  • Serial
  • IBM 46XX
  • Keyboard Wedge
  • OCIA

USB Cable separate

Certifications & Standards:
  • FCC Part 15
  • 72/23/EEC
  • CE Directives 89/336/EEC
  • Low Voltage Directive EN 60742 (1995)
  • US DHHS Standard 21 CFR 1040
  • 10 and 1040, 11 (1994) as a Class II Laser product
  • IEC 825-1 (1993)
  • EN 60825-1 (1994) Class 2
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
