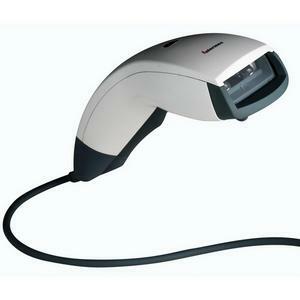

Intermec 3-361052-01 Barcode Scanner

The Intermec 3-361052-01 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Intermec ScanPlus 1800 - Vista kit. Kit includes CCD scanner, RS-232 9-pin cable & desktop stand. Order power supply/AC adapter separately. See accessories.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 400 scan/s
Read More

Need a different version? See all Intermec ScanPlus 1800 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Intermec 3-361052-01 Barcode Scanner
Intermec 3-361052-01 Barcode Scanner Intermec 3-361052-01 Barcode Scanner Intermec 3-361052-01 Barcode Scanner
Intermec 3-361052-01 Barcode Scanner
Intermec 3-361052-01 Barcode Scanner
Intermec 3-361052-01 Barcode Scanner
Full specifications (PDF)
Intermec ScanPlus 1800 Barcode Scanner Model Overview
Compatible for contact and non-contact applications, the ScanPlus 1800 provides the flexibility your operation needs by providing a choice of different scan engines. A universal host interface system allows the ScanPlus 1800 to be connected to many hundreds of PC's, cash registers, or other terminals simply by changing the cable and software set-up. Firmware upgrades or special applications are easily implemented using flash memory easily extending your solutions potential. All units ship with product documentation.
Intermec 3-361052-01 Barcode Scanner Overview

The ScanPlus S1800 VT hand-held Bar Code Readers uses the latest patented technology and integrated design for fast and accurate contact and non-contact scanning. The SR engine features new patented technology that provides a sharp, brightly

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN
  • Code 39
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Matrix 2 of 5
  • Code 128
  • UCC/EAN 128
  • Codabar
  • Code 93
  • MSI
  • Plessey
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
400 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0" - 0.8"@4mil
  • 0" - 1.6"@10mil
  • 0" - 2.1"@100% UPC/EAN
  • 0" - 2.4"@15mil
  • 0" - 2.7"@20mil
  • 0" - 4"@27mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
  • Gray
  • White
Weight (Approximate):
5.11 oz
Miscellaneous
Package Contents:
  • ScanPlus S1800 VT Bar Code Reader
  • Trigger
  • Cable RS-232
Additional Information:

6 ft RS-232 Serial Data Cable

USB Cable separate

Certifications & Standards:
  • FCC Part 15
  • CE Directives 89/336/EEC
  • 72/23/EEC
  • Low Voltage Directive
  • EN 60742 (1995)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0000004164050
UPC: 000004164050
EAN: 0000004164050
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Intermec 3-361052-01 Barcode Scanner is also known as INT-1800CE01
