Intermec SR61 – Barcode Scanner – Cordless – 1D

Part Number: 225-726-002
Model: SR61
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D

Product Description:

  Cordless scanner kit, Area imager, Battery, Charger, Power supply, BTAD KPL
Explore all Intermec SR61 Barcode Scanners
Add to Quote
Intermec 225-726-002 Barcode Scanner
Intermec 225-726-002 Barcode Scanner
Intermec 225-726-002 Barcode Scanner
Intermec 225-726-002 Barcode Scanner
Intermec 225-726-002 Barcode Scanner
Intermec 225-726-002 Barcode Scanner
Intermec 225-726-002 Barcode Scanner Intermec 225-726-002 Barcode Scanner Intermec 225-726-002 Barcode Scanner Intermec 225-726-002 Barcode Scanner Intermec 225-726-002 Barcode Scanner Intermec 225-726-002 Barcode Scanner
Full specifications (PDF)

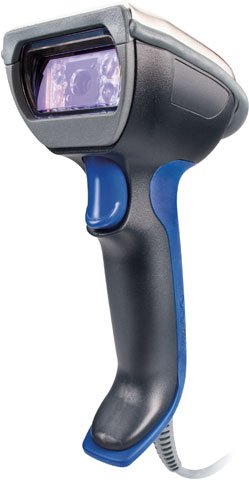

Intermec SR61 Barcode Scanner Model Overview

The Intermec SR61 handheld scanner family is built for rugged applications in warehouse, distribution and industrial manufacturing, and also supports proof of delivery and point of service applications. With a high impact housing that is virtually impenetrable and a solid state design, the SR61 exceeds industrial and military standards and can be counted on to perform well in harsh environments where dust, moisture or extreme temperatures are constants and operational uptime is critical.
Intermec 225-726-002 Barcode Scanner Overview

Intermec's SR61 handheld cordless scanner incorporates the flexibility and rugged design of a handheld scanner with the seamless functionality of wireless communication. The SR61 features a personal area network (PAN) radio based on Bluetooth communication protocol, making scanning easier and safer with no costly cables to damage or become entangled. Users gain hassle-free mobility up to 30 meters (100 feet) from the host.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 128
  • EAN-128
  • Code 39
  • Interleaved 2 of 5
  • UPC Add-ons
  • EAN Add-ons
  • ISBN Add-ons
  • Matrix 2 of 5
  • Codabar
  • Code 39
  • MSI
  • Plessey
  • Code 93i
  • Code 11
  • Telepen
  • ISBT 128
  • RSS
  • Micro PDF
  • PDF 417
  • MacroPDF
  • Coda Block
  • TLC39
  • Composite Codes
  • MaxiCode
  • DataMatrix
  • QR Code
  • 4-State Postal Code
  • Postal Code
  • Planet Postal Code
  • Postnet
  • Standard 2 of 5
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
3.94 mil
Depth of Field:
  • 3" - 4.9"@5mil - Code 39
  • 1.5" - 10.4"@10mil - Code 39
  • 1.8" - 18.9"@20mil - Code 39
  • 1.8" - 12.8"@13mil - UPC/EAN
  • 3.2" - 4.7"@6.6mil - Data Matrix
  • 2" - 8.3"@10mil - Data Matrix
  • 1.6" - 12.4"@15mil - Data Matrix
  • 2.5" - 6.2"@6.6mil - PDF417
  • 1.7" - 9.3"@10mil - PDF417
Scanning Distance:
100 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Source:
Battery
Power Supply Included:
Yes
Battery Information
Number of Batteries Supported:
1
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Height:
7"
Width:
2.8"
Depth:
4.5"
Weight (Approximate):
15 oz
Miscellaneous
Package Contents:
  • SR61 Bar Code Reader
  • Battery
  • Charger
  • Power Supply
  • BT Adapter
  • Desktop Charger
  • SR61BA0400 scanner with battery
  • USB BT Adapter
  • Keyport Lite software keyboarwedge for Win 98/2000
  • Quick Reference Guide
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • CISPR 22 Class B
  • Part 15 of FCC rules, Class B
  • CE Mark (EU) (EN 55024, EN 55022 Class B, IEC60950-1, IEC 60825-1)
  • cULus (Canada and the USA) (UL 60950-1)
  • GS Mark (Germany) (EN60950-1, EN 60825-1)
  • NOM (Mexico)
  • C-TICK(Australia and New Zealand) (AS/NZS 3548 based on CISPR22)
  • CQC and SRRS (China)
  • Spring Mark (Singapore)
  • MIC (South Korea)
  • ANATEL (Brazil)
  • RoHS Compliance
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
