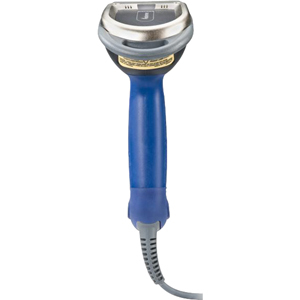

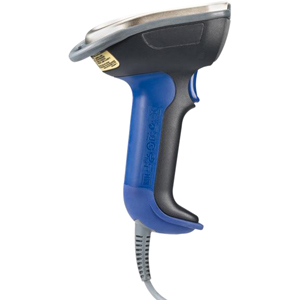

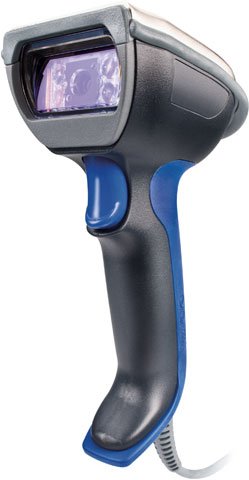

The Intermec SR61 handheld scanner family is built for rugged applications in warehouse, distribution and industrial manufacturing, and also supports proof of delivery and point of service applications. With a high impact housing that is virtually impenetrable and a solid state design, the SR61 exceeds industrial and military standards and can be counted on to perform well in harsh environments where dust, moisture or extreme temperatures are constants and operational uptime is critical.
Intermec 225-698-003 Barcode Scanner Overview
The Intermec SR61B handheld scanner meets the needs of rugged applications in warehouse, distribution center and industrial manufacturing settings. The SR61B is engineered to withstand the abuse of industrial environments and to satisfy user demands that hand held scanners be as durable as forklifts. Its high impact housing is virtually impenetrable, and its solid state design provides protection exceeding industrial and military standards. The SR61B thrives in harsh environments where dust, moisture or extreme temperatures are constants and production uptime is critical.
Cable, RS232 6.5ft 9pin coil for CV30/CV60 (Power from host. Can also be used for connection to Intermec handheld terminals via RS232 adapter for all configs.)
What printing resolution and card encoding options does the Fargo HDP5600 offer?
The Fargo HDP5600 features 600 dpi printing resolution for superior text and image quality, along with multiple encoding capabilities including ISO Magnetic Stripe Encoder, iCLASS SE, iCLASS, MIFARE/DESFire, and HID Prox Encoder support. This all-in-one solution makes it ideal for organizations that need both high-definition printing and smart card encoding in a single device.
What printer models is the Datacard 508668-701 laminate compatible with?
The Datacard 508668-701 laminate is compatible with Datacard SL2 and SL3 card printers, as well as systems using DuraGard laminate technology. This makes it an ideal choice for organizations already invested in Datacard's SL series platform. Contact us today to confirm compatibility with your specific printer configuration.
What card sizes and thicknesses does the HDP5600 support?
The HDP5600 accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive back cards (3.313˝L x 2.063˝W), with a print area that extends edge-to-edge on CR-80 format. The printer supports card thickness from .009˝ to .040˝ (9 mil to 40 mil), making it compatible with both PVC and polyester cards with polished finishes.
What is the thickness and material composition of this laminate film?
The Datacard 508668-701 is a 0.5 mil clear laminate and film designed for full card coverage. This thickness provides a protective overlay while maintaining card clarity and print quality. We offer this laminate as a standard supply for high-volume ID card production environments.
What ribbon options and print speeds are available for the HDP5600?
The HDP5600 offers multiple ribbon configurations including full-color YMCKO (24 seconds per card), dual-panel YMCKOK (31 seconds per card), monochrome options, and specialty ribbons with fluorescent or security features. Ribbon yields range from 175 to 1,000 prints depending on the configuration selected, allowing you to choose based on your volume and color requirements.
How many cards can this laminate supply cover?
The Datacard 508668-701 laminate roll is rated for 350 full card applications. This quantity makes it suitable for medium to large production runs in warehouse, logistics, and enterprise ID card operations. Visit barcodesinc.com to order bulk quantities for your organization's needs.
Is the Fargo HDP5600 suitable for high-volume ID production in large organizations?
Yes, the HDP5600 is specifically designed as a cost-effective solution for government agencies, universities, corporations, and healthcare facilities that need to routinely produce large volumes of high-definition IDs or multi-function smart cards. Its combination of 600 dpi printing, multiple encoding options, and efficient print speeds makes it well-suited for enterprise-level ID programs.
Is this laminate suitable for secure or durable ID card applications?
Yes, the Datacard 508668-701 features DuraGard laminate technology, which is designed to enhance card durability and security. The clear 0.5 mil overlay protects printed content while maintaining visual clarity for ID verification. This makes it ideal for access control, employee badges, and secure credential programs.
What connectivity and software options does the HDP5600 provide?
The HDP5600 features both USB 2.0 and Ethernet connectivity with an internal print server, allowing flexible integration into your existing IT infrastructure. It includes FARGO Workbench diagnostic utility with Color Assist spot-color matching software to optimize print quality and streamline operations.
What are the key differences between the SL2 and SL3 laminate specifications?
The Datacard 508668-701 laminate is compatible with both SL2 and SL3 printer models and uses the same DuraGard laminate formulation across both platforms. Both systems deliver consistent 0.5 mil clear film coverage for full card protection. Contact us today for detailed technical specifications or migration guidance between SL series models.
What are the operating environment specifications for the HDP5600?
The HDP5600 operates in temperature ranges from 65° to 80° F (18° to 27° C) with humidity levels between 20–80% non-condensing. The printer requires 100-240 VAC power supply at 3.3 A and operates at both 50 Hz and 60 Hz frequencies, making it compatible with standard North American and international electrical systems. Contact us today to learn more about deployment specifications for your facility.
Can I use this laminate with other ID card printer brands?
The Datacard 508668-701 is specifically engineered for Datacard SL2 and SL3 printers and DuraGard laminate systems. It is not compatible with other manufacturer platforms. We offer a full range of laminates and films for various printer models—visit barcodesinc.com to find the right supply for your equipment.
The Intermec 225-698-003 Barcode Scanner is also known as
INT-SR61BX09
or 225-698-003.
Full specifications (PDF)
