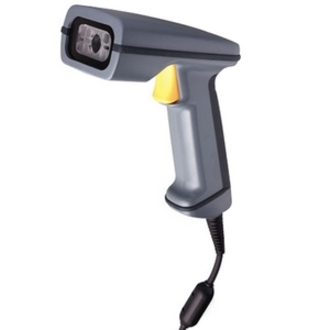

Intermec 1470B05 Barcode Scanner

The Intermec 1470B05 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Intermec ScanImage 1470 - high density 2D imager. Order cables & power supply/AC adapter separately. See accessories.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Scan barcodes with a staggering speed of 30 scan/s
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

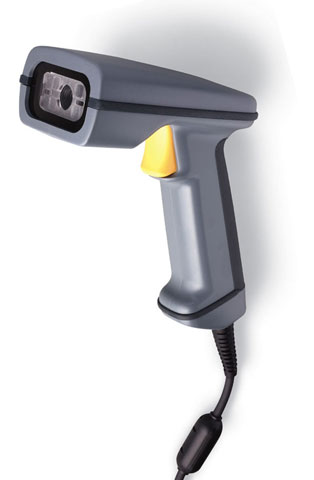

Intermec ScanImage 1470 Barcode Scanner Model Overview
Rightly suited for a wide spectrum of industries, the ScanImage 1470 imager is ideal for warehouse and distribution, retail, packaging, printed circuit board manufacturing and healthcare/clinical applications--essentially anywhere omnidirectional and/or 2D imaging is required. The ScanImage 1470 seizes data at a high-speed 30 frames per second. A scanning range of up to 9 inches on linear barcodes, ergonomic design, and a new intuitive, bright, sharp scan line make the ScanImage 1470 extremely user friendly. All units ship with product documentation.
Intermec 1470B05 Barcode Scanner Overview

The ScanImage 1470B HD High Density Bar Code Reader seizes data at a high-speed 30 frames per second. A scanning range of up to 9 inches on linear bar codes, ergonomic design, and a new intuitive, bright, sharp scan line make the ScanImage 1470B extremely user friendly.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:

Linear:

  • Code 39
  • Code 128
  • Codabar
  • UPC
  • EAN
  • Interleaved 2 of 5
  • Code 93
  • Codablock

2 Dimensional:

  • Data Matrix
  • PDF417
  • Micro PDF417
  • Maxicode
  • Aztec
  • Aztec Mesa
  • QR Code
  • Code 49
  • UCC Composite
  • RSS

Postal:

  • POSTNET (US)
  • BPO4 State
  • Canadian 4 State
  • Japanese Post
  • KIX (Dutch Post)
  • Planet Code

OCR Fonts:

  • OCR-A
  • OCR-B
  • U.S. Currency
Image Sensor Type:
Linear
Scan Rate:
30 scan/s
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
5.6"
Width:
2.5"
Depth:
6.1"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

Interfaces Supported:

  • RS-232
  • Keyboard Wedge
  • Intermec 10-pin Wand em for (T242x and 97xx)
  • Intermec 700
  • Intermec T241x (16-pin)

USB Cable separate

Item Numbers
GTIN: 0000004449416, 0724627252306
UPC: 000004449416, 724627252306
EAN: 0000004449416, 0724627252306
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Intermec 1470B05 Barcode Scanner is also known as INT-1470A05
